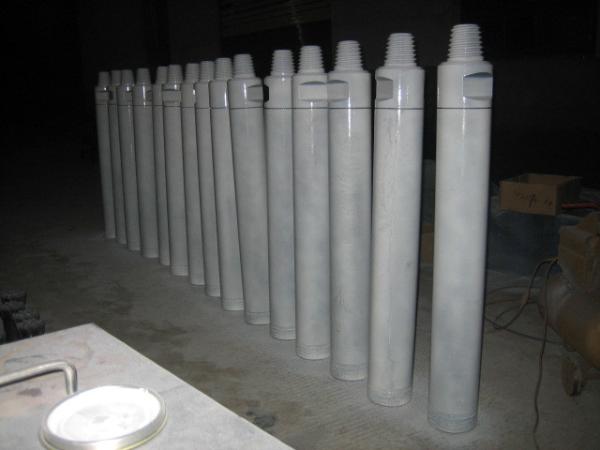

QL80 Down The Hole Hammer Drilling Good Seal Effect Simple Structure
QL80 Down The Hole Hammer Drilling Good Seal Effect Simple Structure
Specifications
Brand Name :
Teamwhole
Model Number :
QL80 DTH hammer
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T O/A WEST UNION
Supply Ability :
2000 Pcs Per Month
Delivery Time :
25-30days
Packaging Details :
Wooden Case
Material :
Alloy steel
Processing Type :
Forging
Use :
Foundation Drilling Equipment, Piling Rigs
Product Name :
QL80 DTH Hammer
Color :
Gold other color available
External Diameter :
203-305 MM
Connection :
152 OR 178 MM drill rod.
Work Pressure :
1.7-2.5Mpa
Price :
Negotiation
Description

Gold QL80 DTH hammer DTH drilling tools for waterwell drilling

Application Fields: Excellent for casing system and water well projects

Outstanding Advantage:

1.The good seal effect eliminates the problems caused by water and flushing entering into the inner cylinder of hammer.

2. Simple structure ensure the easy operation and maintenance.

3. Smooth and stable speed.

Quality Guarantee: products with any problem caused by unqualified material and maching,will be replaced

with providing photos of broken parts serial number

ITERM DESCRIPTION
NO PART LIST
1 TOP SUB 26JJ10 PRODUCT NAME QL80
2 O RING 145*5.3 PRODUCT CODE 08SH01
3 CHECK VALVE 26Q311 BIT TYPE QL80 WITH FOOT VALVE
4 SRPING 150*30*3.2*10.5 THREAD CONNECTION API 4 1/2 REG
5 AIR DISTRIBUTING SEAT 26JJ20-C WORKING PRESSURE (BAR) 14-24
6 INNER CYLINDER 26JJ30-C AIR CONSUMPTION 24BAR (M3/MIN) 21.8
7 PISTON 26JJ48-N RECONMENDED ROTATION SPEED 30-40
8 OUTER CYLINDER 08SH51 OUTSIDE DIA (MM) 182
9 BUSH DRIVE SUB 08SH61 LENGTH WITH OUT BITS 1365
10 CHUCK SLEEVE PAD B1-SK08H-A4001-55 WEIGHT 55
11 O RING 125*5.3 NORMAL AXIAL PRESUURE (KN) 18.3
12 BIT RETAINER RING 26JJ70-C REC HOLE SIZE(MM) 203-279
13 CHUCK SLEEVE 26YY80 FLAT WENCH(MM) 150
