Water Well Drilling DHD 360 Hammer , Reliable Rock Tools Drilling Equipments
Water Well Drilling DHD 360 Hammer , Reliable Rock Tools Drilling Equipments
Specifications
Brand Name :
Teamwhole
Model Number :
DHD360 DTH hammer
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T O/A WEST UNION
Supply Ability :
2000 Pcs Per Month
Delivery Time :
25-30days

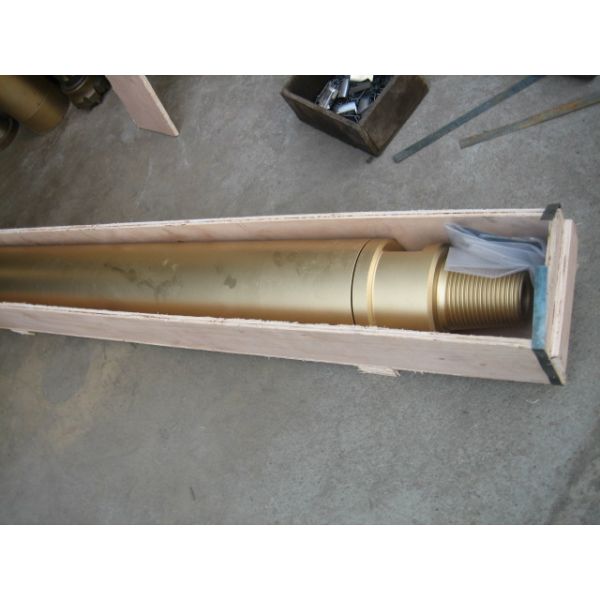

Packaging Details :
Wooden Case
Material :
Alloy steel
Processing Type :
Forging
Use :
Foundation Drilling Equipment, Piling Rigs
Product Name :
DHD360 DTH Hammer
Color :
Gold other color available
External Diameter :
140-165MM
Connection :
89 MM drill rod.
Work Pressure :
1.7-2.5Mpa
Price :
Negotiation
Description

Gold DHD360 DTH hammer of DTH drilling tools for waterwell drilling.

Application Range

It is widely applied to all kinds of rock drilling and excellent for casing systems and water well projects.

Design Principles
To pursuit smooth operation and reliability.

Outstanding Advantages
The simple structure ensures the easy operation and maintenance. The good seal effect eliminates the problem caused by water and flushing entering into the inner cylinder of hammer. They also have the features of large

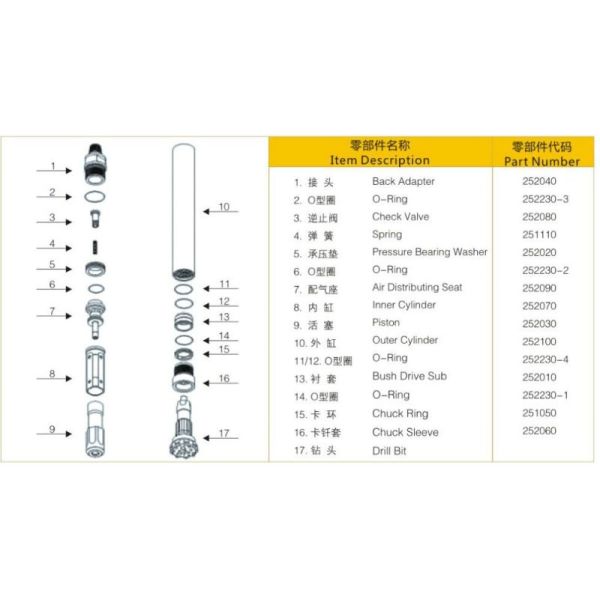

1.Structure and Technical Parameters

Water Well Drilling DHD 360 Hammer , Reliable Rock Tools Drilling Equipments

1. BACK ADAPTOR 2.O-RING 3.CHECK VALVE 4 SPRING 5 PRESSURE BEARING WASHER

6. O-RING 7.AIR DISTRIBUTING SEAT 8 INNER CYLINDER 9 PISTON 10 OUTER CYLINDER

11/12 O-RING 13 BUSH DRIVE SUB 14 O-RING 15CHUCK RING 16 CHUCK SLEEVE 17 DRILL BIT

Water Well Drilling DHD 360 Hammer , Reliable Rock Tools Drilling Equipments

ITERM DESCRIPTION
NO PART LIST
1 TOP SUB 05SH10 PRODUCT NAME QL50
2 TOP SUB RING 90*3.55 PRODUCT CODE 05SH01
3 PRESSURE BEARING WAHSER 103.5*83.5*22.5 BIT TYPE QL50 WITH FOOT VALVE
4 CHECK VALVE B1-SK05H-A1001-90 THREAD CONNECTION API 2 3/8 REG
5 SRPING 110*26*3 WORKING PRESSURE (BAR) 12-24
6 RUBER RING 240030-C AIR CONSUMPTION 24BAR (M3/MIN) 19
7 AIR DISTRIBUTING SEAT 05SK20-C RECONMENDED ROTATION SPEED 30-50
8 INNER CYLINDER 05SK30-F OUTSIDE DIA (MM) 126
9 PISTON 05SH51 LENGTH WITH OUT BITS 893
10 OUTER CYLINDER 05SK40-N WEIGHT 55
11 BUSH DRIVE SUB 05SK61-C NORMAL AXIAL PRESUURE (KN) 9.2
12 O RING 80*3.55 REC HOLE SIZE(MM) 138-165
13 BIT RETAINER RING 05SK71-C FLAT WENCH(MM) 74.5
14 CHUCK SLEEVE 05SK81-N
