1.7-2.5Mpa Work Pressure QL 60 Hammer , Gold Color Water Well Drilling Tools
1.7-2.5Mpa Work Pressure QL 60 Hammer , Gold Color Water Well Drilling Tools
Specifications
Brand Name :
Teamwhole
Model Number :
QL60 DTH hammer
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T O/A WEST UNION
Supply Ability :
2000 Pcs Per Month
Delivery Time :
25-30days
Packaging Details :
Wooden Case
Material :
Alloy steel
Processing Type :
Forging
Use :
Foundation Drilling Equipment, Piling Rigs
Product Name :
QL60 DTH Hammer
Color :
Gold other color available
External Diameter :
140-165MM
Connection :
89 MM drill rod.
Work Pressure :
1.7-2.5Mpa
Price :
Negotiation
Description

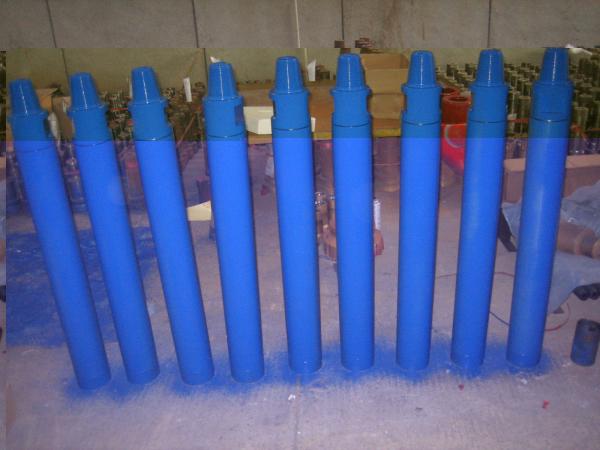

Gold QL60 DTH hammer of DTH drilling tools for waterwell drilling

Application Range

It is widely applied to all kinds of drilling and excellent for mining and water well projects.

Design Principles
To pursuit smooth operation and reliability.

Outstanding Advantages

The simple structure ensures the easy operation and maintenance;

Fast penetration rate can Improve your productivity and capability

Comprehensive range of DTH hammers and drill bits to match all conceivable applications

Cutting edge technology that has been tested and proven through years of field use

Structure and technical parameters

ITERM DESCRIPTION
NO PART LIST
1 TOP SUB 25LL10 PRODUCT NAME QL60
2 TOP SUB RING 115*3.55 PRODUCT CODE 06SH01
3 CHECK VALVE 25LL15 BIT TYPE QL60 WITH FOOT VALVE
4 SRPING 130*30*3.2*9.5 THREAD CONNECTION API 3 1/2 REG
5 ADJUSTING PAD B1-SW06H-A3001-12 WORKING PRESSURE (BAR) 14-24
6 AIR DISTRIBUTING SEAT B1-SW06H-A3002-20 AIR CONSUMPTION 24BAR (M3/MIN) 26
7 PISTON 06SH51-L RECONMENDED ROTATION SPEED 30-50
8 INNER CYLINDER 06SH30-F OUTSIDE DIA (MM) 146
9 OUTER CYLINDER 06SH41-N LENGTH WITH OUT BITS 1163.5
10 BUSH DRIVE SUB 06SH61-C WEIGHT 90
11 BIT RETAINER RING 25LL95 NORMAL AXIAL PRESUURE (KN) 10.2
12 O RING 93*3.55 REC HOLE SIZE(MM) 152-203
13 CHUCK SLEEVE 25VV98 FLAT WENCH(MM) 102
