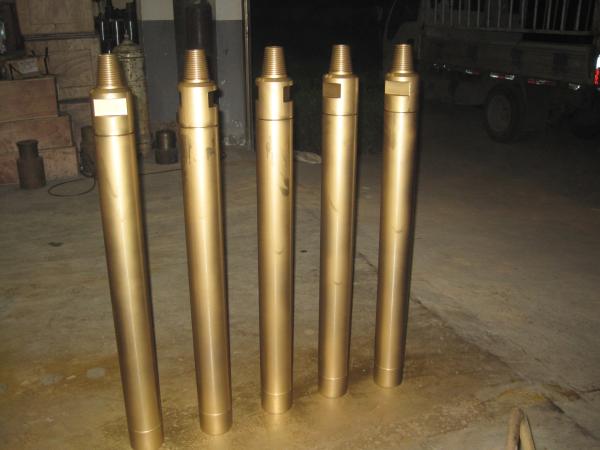

Alloy Steel TG3.5 Down The Hole Hammer High Drilling Rate Easy Disassembly
Alloy Steel TG3.5 Down The Hole Hammer High Drilling Rate Easy Disassembly
Specifications
Brand Name :
Teamwhole
Model Number :
TG3.5 DTH hammer
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T O/A WEST UNION
Supply Ability :
2000 Pcs Per Month
Delivery Time :
25-30days
Packaging Details :
Wooden Case
Material :
Alloy steel
Processing Type :
Forging
Use :
Foundation Drilling Equipment, Piling Rigs
Product Name :
TG3.5 DTH Hammer
Color :
Gold other color available
External Diameter :
90-115 MM
Connection :
76,89 MM drill rod.
Work Pressure :
1.7-2.5Mpa
Price :
Negotiation
Description

tem: TG3.5 DTH pneumatic hammer for dth drill rig


Specification:

1. Item name: TG4 hammer
2. Thread: API 2 3/8" REG PIN
3. Outer diameter: 99mm.
4. Working pressure: 14-24bar
5. Advantages: stable performance and high drilling rate
6. Service life: long
7. Weight: 45kg


Fetures:

1.Easy operation and maintenance
2. Easy disassemly.
3. Reliable quality, long service life.
4..Good flushing effect to ensure high drilling rate.
5.Strict quality warranty and compensation rules
6. Be certisfied by ISO9001:2008

Advanced material:

with high nickel steel, in features of high strength, heat resistance, and wearable.

Warranty:
The company responses for any quality problem caused by default of material.


Markets:

China, Chile, Brazil, Peru, Venezuela, Mexico, USA, Italy, France, Russia, Greece,Canada,Korea, South Africa, Nigeria, Korea, Israel, Malaysia, Mongolia and etc

Other details:

Price: FCA (China), FOB(China), CIF, CFR
Payment term: T/T

Technical Parameters:


Alloy Steel TG3.5 Down The Hole Hammer High Drilling Rate Easy Disassembly

ITERM DESCRIPTIONPRODUCT NAMEDHD3.5
NOPART LIST PRODUCT CODE3HSK00
1TOP SUBB1-SK10F-A4001-05BIT TYPED3.5 WITH FOOT VALVE
2O RING145*5.3THREAD CONNECTIONAPI 2 3/8 REG
3STEEL PAD RINGB1-SK10F-A4001-06WORKING PRESSURE (BAR)10.5-24
4BELLEVILLE SPRINGB1-SK10F-A4001-10
5CHECK VALVET2-081-03901AIR CONSUMPTION 24BAR (M3/MIN)12
6SPRINGT3-114-03001RECONMENDED ROTATION SPEED30-50
7AIR DISTRIBUTING SEATB1-SK10F-A4001-20OUTSIDE DIA (MM)82
8INNER CYLINDERB1-SK10F-A4001-32LENGTH WITH OUT BITS807
9PISTONB1-SK10F-A4001-42WEIGHT22
10OUTER CYLINDERB1-SK10F-A4001-40NORMAL AXIAL PRESUURE (KN)5.1
11O RING REC HOLE SIZE(MM)90-110
12BUSH DRIVE SUBB1-SK10F-A4001-45FLAT WENCH(MM)57
13CHUCK RINGB1-SK10F-A4001-50
14CHUCK SLEEVE PADB1-SK10F-A4001-55
15CHUCK SLEEVEB1-SK10F-A4001-58


Alloy Steel TG3.5 Down The Hole Hammer High Drilling Rate Easy Disassembly
