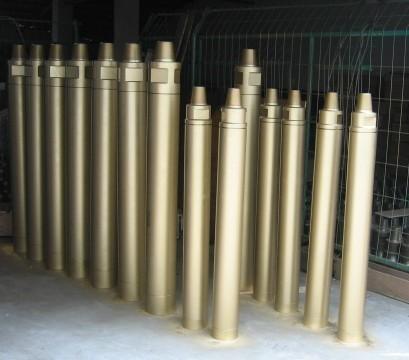

High Performance TS180 Dth Hammer , Oil / Gas Exploitation Borehole Drilling Tools
High Performance TS180 Dth Hammer , Oil / Gas Exploitation Borehole Drilling Tools
Specifications
Brand Name :
Teamwhole
Model Number :
TS180 DTH hammer
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T O/A WEST UNION
Supply Ability :
2000 Pcs Per Month
Delivery Time :
25-30days
Packaging Details :
Wooden Case
Material :
Alloy steel
Processing Type :
Forging
Use :
Foundation Drilling Equipment, Piling Rigs
Product Name :
TS180 DTH Hammer
Color :
Gold other color available
External Diameter :
127-178 MM
Connection :
76,89 MM drill rod.
Work Pressure :
1.7-2.5Mpa
Price :
Negotiation
Description

Gold TS180 DTH hammer DTH drilling tools for DTH drilling rig

Application Range:

To drill deep holes for oil and gas exploitation,water well, and other projects boring holes with depth 300 meters above and diameters 216mm above.

Design Principles:Mostly increase the reliability of drilling tools to overcome difficulties caused by underground complications.

Oustanding Advantages:Reliable performance and easy to disassembly
Technical Parameter:

Description

Product Code

Bit Shank

Thread Connection

Outside

Dia. (mm)

Length Without

Bit

(mm)

Weight

(kg)

Flat

Wrench

(mm)

Rec. Hole

Size

(mm)
TS180 264000 TS180 API 4 1/2" REG PIN 180 1551 195 150 203-271

Working Pressure (bar)

17ba

Impact Frequency at 17 bar(Hz)

Normal Axial Pressure(kN)

Recommended Rotation Speed(r/min)

Air Consumption(m³/min)
14-24 20 18.3 30-40 14bar 21bar 24bar
22.5 28.2 39.6
