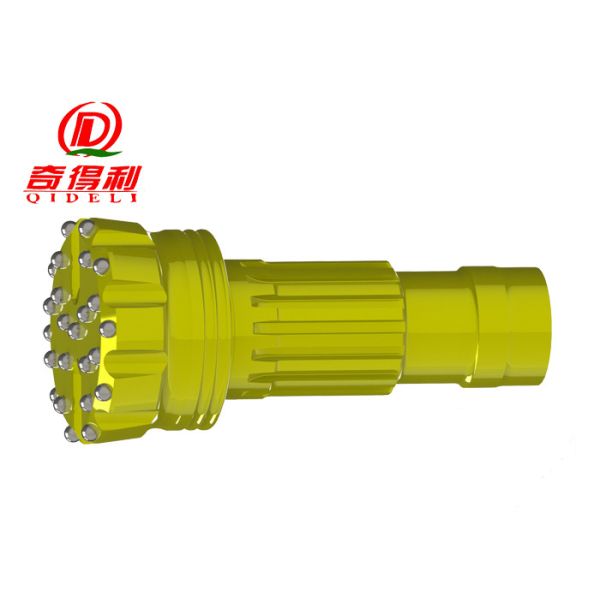

Colored SD6 DTH Hammer Bit For Drilling Rig Mining Engineering Flat Face
Colored SD6 DTH Hammer Bit For Drilling Rig Mining Engineering Flat Face
Colored SD6 DTH Hammer Bit For Drilling Rig Mining Engineering Flat Face
Colored SD6 DTH Hammer Bit For Drilling Rig Mining Engineering Flat Face
Specifications
Brand Name :
QIDELI
Model Number :
SD6-165/178/190/203
Certification :
SGS, ISO: 9001
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS/Months
Delivery Time :
20 dayts
Packaging Details :
1000PCS/Months
Shank type :
SD6 HAMMER
Material :
Special steel
Usage :
Rock drill \ mining\well drilling
Model number :
SD6
Carbide brand :
YKO5
Carbide type :
Φ18X8 Φ16X8
Face type :
Flat face
Color :
black，yellow，croci，golden，red
Description

SD6 dth hammer bits for drilling rig using on mining engineering

Qideli drill tools manufacturer has a full range of DTH drill bits with SD shanks type for a wide range of hole sizes, which are designed to match all conceivable applications for water well industries, stone quarrying, mining and construction.
Shank types: SD4, SD5, SD6, SD8. SD10,SD12.
DTH hammer bits hole diameter:3'', 4'', 5'', 6'', 8'',10",12"(85mm-381mm).

SD SERIES DTH BITS PARAMETERS:

SD shank Bits Bit Dia. No.
Air Holes		 Gauge
Buttons		 Front
Buttons		 Weight
(Kgs)		 Part No.
mm inch
SD4
 105 4 1/8" 2 6×φ14 5×φ13 9.0 SD4-105
110 4 1/4" 2 7×φ13 6×φ13 9.5 SD4-110
115 4 1/2" 2 7×φ14 6×φ13 9.8 SD4-115
120 4 3/4" 2 8×φ14 6×φ14 11.5 SD4-120
127 5 2 8×φ14 7×φ14 12.3 SD4-127
SD5
 133 5 1/4" 2 7×φ16 6×φ14 15.5 SD5-130
140 5 1/2" 2 7×φ18 7×φ14 16.0 SD5-140
146 5 3/4" 2 8×φ18 7×φ14 16.5 SD5-146
152 6" 2 8×φ18 8×φ14 17.0 SD5-152
165 6 1/2" 2 8×φ18 8×φ16 19.0 SD5-165
SD6 152 6" 2 8×φ16 8×φ16 26.0 SD6-152
165 6 1/2" 2 8×φ18 8×φ16 28.0 SD6-165
178 7" 2 8×φ18 8×φ18 31.0 SD6-178
190 7 1/2" 3 9×φ18 9×φ16 34.0 SD6-190
203 8" 3 9×φ18 9×φ18 36.0 SD6-203
SD8
 195 7 11/16 3 9×φ18 9×φ16 32.0 SD8-195
203 8" 3 9×φ18 9×φ18 41.0 SD8-203
216 8 1/2" 2 10×φ18 12×φ16 49.0 SD8-216
254 10" 3 11×φ18 17×φ16 71.0 SD8-254
305 12" 4 12×φ18 29×φ16 95.0 SD8-305
SD10
 254 10" 3 12×φ18 20×φ16 108.0 SD10-254
305 12" 4 12×φ18 36×φ18 125.0 SD10-305
311 12 1/4" 4 12×φ18 36×φ16 130.0 SD10-311
318 12 1/2" 4 12×φ18 38×φ16 142.0 SD10-318
330 13" 4 16×φ18 42×φ16 155.0 SD10-330
SD12 305 12" 4 12×φ18 36×φ16 156.0 SD12-305
311 12 1/4" 4 12×φ18 36×φ16 168.0 SD12-311
330 13" 4 16×φ18 42×φ16 180.0 SD12-330
356 14" 4 16×φ19 48×φ16 191.0 SD12-356
381 15" 4 16×φ19 48×φ18 200.0 SD12-381


Advantages:
1. The carbide we using the brand of KD10.This carbide is using 's technique.
2. We use high quality special steel and mature and stable heat treatment process.
3. In addition, we have more than 20 years of drilling equipment production experience.
Is right to chose us-Putian Qideli Drilling Tools Co.,Ltd.
Main dimension:

Colored SD6 DTH Hammer Bit For Drilling Rig Mining Engineering Flat Face


About Us:
Putian Qideli drilling tools Company was founded in 2010, is specialized in the production and operation of mining drilling tools, research and development-oriented enterprises. 20 years, the production of chisel-bits, cross-bits, button bits, thread bits, PDC bits high and low air pressure DTH bits, DTH hammer, drill rods, etc, are widely used in energy, metallurgy, geology, coal, water conservancy, chemical industry and the mining, road construction, has been unanimously endorsed by the majority of users. Basing on our complete product and excellent quality, We have a certain domestic markets, also export to Russia, Japan, Southeast Asia and other regions alsowhile
