Low Air Pressure CIR90 DTH Bit Rock Drill Bits for Waterwell Drilling
Low Air Pressure CIR90 DTH Bit Rock Drill Bits for Waterwell Drilling
Specifications
Brand Name :
SOLLROC
Model Number :
CIR90 dth bits
Certification :
SGS
Place of Origin :
China
MOQ :
1 set
Supply Ability :
2000 sets per month
Delivery Time :
3-4 weeks
Packaging Details :
Cartons + ply wood case (no plastic)
Product name :
CIR90 dth bits
Color :
Black or optional
Air pressure :
7-15 bar
Applications :
water well drilling, mining, rock drilling
Face shape :
Flat, Convex
Diameter :
90mm, 100mm,110mm
Description

Low Air Pressure CIR90 DTH Bit Rock Drill Bits for Waterwell Drilling

Description:

CIR90 DTH Button Bits for Drilling Hole
1. High and low air pressure down-the-hole drill bits
2. Low air pressure holeDia.: 65-220mm
3. High air pressure hole Dia.: 85-305mm
4. Face type: Drop center/concave/convex/double gauge/flat
5. Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.
6. Inch available: 3", 4", 5", 6", 8", 12", etc...

High pressure DTH Button Bits
DTH bit is our company main product. After mang years search, we have rich experience in development and manufacture which adopted high-quality raw materials, advanced craft technology and passed through strictly inspection, manufacturing high quality products.
If you interested in our product please contact freely.

Drill Bit Series Bit Dia.(mm) Gauge Buttons Front Buttons Weight(Kg)
Cop32 85 6×φ14 4×φ12 4.2
90 6×φ14 5×φ12 4.5
95 7×φ14 5×φ12 4.7
100 8×φ14 6×φ12 5
105 8×φ14 6×φ13 5.3
HD35(IR3.5, Cop34) 85 6×φ14 4×φ12 4.2
90 6×φ14 5×φ12 4.5
95 7×φ14 5×φ12 4.8
100 8×φ14 6×φ12 5
105 8×φ14 6×φ13 5.5
HD45(DHD340A, Cop44) 105 6×φ14 5×φ13 8.5
110 7×φ14 6×φ13 8.8
115 8×φ14 7×φ13 9
120 8×φ14 8×φ13 9.8
127 9×φ14 9×φ14 11
HD55(DHD350R, Cop54) 133 7×φ16 6×φ14 16
140 8×φ16 7×φ14 16.5
146 8×φ16 8×φ14 17
152 8×φ16 7×φ16 17.5
165 8×φ16 8×φ16 18.5
HD65(DHD360, Cop64) 152 8×φ16 8×φ16 22
165 8×φ18 8×φ16 24
178 8×φ18 8×φ16 26
190 9×φ18 9×φ16 28
203 10×φ18 10×φ16 29.5
HD85(DHD380, Cop84) 195 9×φ18 9×φ18 34
203 10×φ18 10×φ18 36
216 12×φ18 12×φ18 45
254 12×φ18 20×φ18 58
305 12×φ18 30×φ18 75
CIR Series Spline No.6
Type Diameter(mm) Weight (KG)
CIR65 68 2.5
CIR70 76 3.4
CIR80 83 3.45
CIR80X 83 3.5
CIR90 90 3.5
CIR90 100 4.5
CIR90 130 9.5
CIR110 110 6.4
CIR110 123 8.5
CIR110W 110 6.5
CIR110W 123 8.8
CIR150 155 12
CIR150A 155 12.5
CIR150A 165 14
CIR170 175 15.5
CIR170A 185 16
CIR200W 200 48


We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc
Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard

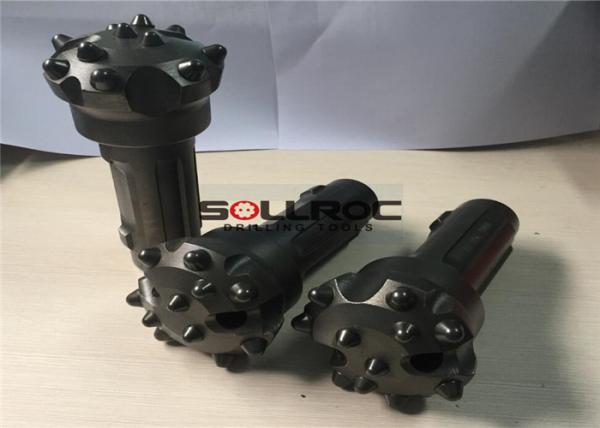

Product photos
