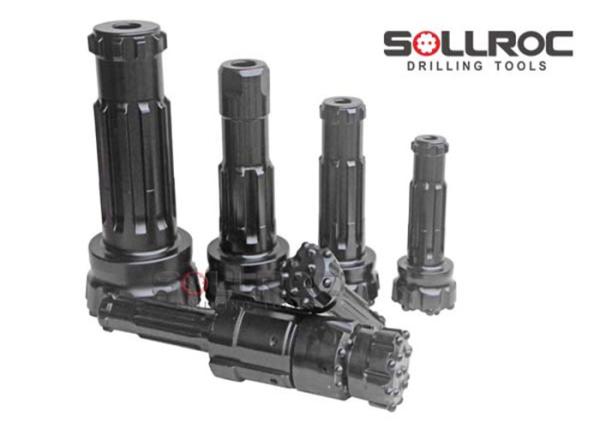

High Air Pressure DTH Drilling Rig Bits , 140mm / 146mm SD5 DTH Hammer Bits
High Air Pressure DTH Drilling Rig Bits , 140mm / 146mm SD5 DTH Hammer Bits
High Air Pressure DTH Drilling Rig Bits , 140mm / 146mm SD5 DTH Hammer Bits
High Air Pressure DTH Drilling Rig Bits , 140mm / 146mm SD5 DTH Hammer Bits
Specifications
Brand Name :
SOLLROC
Model Number :
SD5 dth bits
Certification :
SGS
Place of Origin :
China
MOQ :
1 set
Supply Ability :
2000 sets per month
Delivery Time :
3-4 weeks
Packaging Details :
Cartons + ply wood case (no plastic)
Product name :
SD5 dth drill bits
Color :
Black or optional
Air pressure :
10-25 bar
Applications :
water well drilling, mining, rock drilling
Face shape :
Flat, Convex, Concave
Diameter :
130mm, 135mm, 140mm, 146mm, 152mm,156mm
Connection thread :
API 2 3/8" reg
Size :
5",5 1/2", 5 3/4" 6"
Description

6" DTH Hammer Bits 140mm 146mm SD5 DTH Bit Rock Drill Bits

Description:
DTH Drill Bits are produced from premium quality nickel-alloy steel for increased durability and wear characteristics. Specific heat treatment standards and special "stress relief" processes ensure consistent performance.
DTH hammer bits are designed for maximum performance and hole cleaning ability and high penetration rate.
Our bits are interchangeable with Atlas Copco's COP32 34 44 54 64 84, Ingersoll-Rand 's DHD3.5,DHD3.5HD, DHD 340A , DHD350R, DHD 360, DHD380 QL40, QL50 , QL60, QL80.NUMA100, NUMA120, MISSION60,ects

Product specifications:

For 5" hammer
DTH bits shank		 Bit Dia. No.
Air Holes		 Gauge
Buttons		 Front
Buttons		 Weight
(Kg)		 Part No.
mm inch
DHD350R/COP54 133 5 1/4" 2 7×φ16 6×φ14 15 DHD350-133
140 5 1/2" 2 7×φ18 7×φ14 16 DHD350-140
146 5 3/4" 2 8×φ18 7×φ14 17 DHD350-146
152 6" 2 8×φ18 8×φ14 17.5 DHD350-152
165 6 1/2" 2 8×φ18 8×φ16 18.5 DHD350-165
SD5 133 5 1/4" 2 7×φ16 6×φ14 15.5 SD5-130
140 5 1/2" 2 7×φ18 7×φ14 16 SD5-140
146 5 3/4" 2 8×φ18 7×φ14 16.5 SD5-146
152 6" 2 8×φ18 8×φ14 17 SD5-152
165 6 1/2" 2 8×φ18 8×φ16 19 SD5-165
QL50 133 5 1/4" 2 7×φ16 6×φ14 15.5 QL50-130
140 5 1/2" 2 7×φ18 7×φ14 16 QL50-140
146 5 3/4" 2 8×φ18 7×φ14 16.5 QL50-146
152 6" 2 8×φ18 8×φ14 17 QL50-152
165 6 1/2" 2 8×φ18 8×φ16 19 QL50-165
Mission50 133 5 1/4" 2 7×φ16 6×φ14 12.5 M50-130
140 5 1/2" 2 7×φ18 7×φ14 13.5 M50-140
146 5 3/4" 2 8×φ18 7×φ14 14 M50-146
152 6" 2 8×φ18 8×φ14 14.4 M50-152
165 6 1/2" 2 8×φ18 8×φ16 15 M50-165

Shank can be available:
1), Dia. 64mm-70mm shank Bulroc BR1
2), Dia. 70mm-95mm shank Halco MACH20, Bulroc BR2
3), Dia. 90mm-102mm shank COP32, COP34, Halco MACH303, M30, DHD3.5, Bulroc BR3
4), Dia. 105mm-152mm shank COP44, DHD340, Halco MACH44, SD4, M40, QL40, Bulroc BR4
5), Dia. 135mm-165mm shank COP54, DHD350R, COP54, Halco MACH50, SD5, M50, QL50, Bulroc BR5
6), Dia. 152mm-254mm shank COP64, DHD360, SD6, M60, QL60, Bulroc BR6
7), Dia. 203mm-330mm shank COP84, DHD380, SD8, QL80
8), Dia. 254mm-380mm shank SD10, Numa100
9), Dia. 305mm-508mm shank DHD1120, SD12, N120, N125
10), Dia. 405mm-864mm shank SD15, SD18
11), VKP80, VKP95, CIR90, CIR100, CIR110, CIR150, CIR200...


We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc
Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard

Product photos

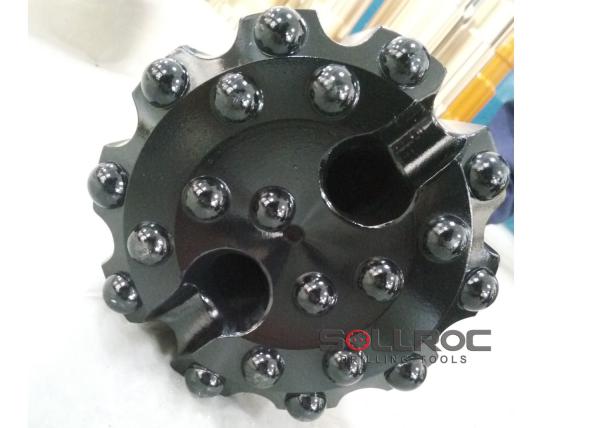

High Air Pressure DTH Drilling Rig Bits , 140mm / 146mm SD5 DTH Hammer Bits
