7-15 Bar Air Pressure CIR130 DTH Drill Bits For Drilling Hole Flat Face Type
7-15 Bar Air Pressure CIR130 DTH Drill Bits For Drilling Hole Flat Face Type
7-15 Bar Air Pressure CIR130 DTH Drill Bits For Drilling Hole Flat Face Type
7-15 Bar Air Pressure CIR130 DTH Drill Bits For Drilling Hole Flat Face Type
Specifications
Brand Name :
SOLLROC
Model Number :
CIR70 CIR90 CIR110 CIR130 dth bits
Certification :
SGS
Place of Origin :
China
MOQ :
1 set
Supply Ability :
2000 sets per month
Delivery Time :
3-4 weeks
Packaging Details :
Cartons + ply wood case (no plastic)
Product name :
CIR70 CIR90 CIR110 CIR130 dth bits
Color :
Black
Air pressure :
7-15 bar
Applications :
rock drilling,blasting
Face shape :
Convex, Flat
Diameter :
90mm-150mm
Description

Low Air Pressure CIR70 CIR90 CIR110 CIR130 DTH Bits For Rock Drilling

Description:

CIR70 CIR90 CIR110 CIR130 DTH Button Bits for Drilling Hole
1. High and low air pressure down-the-hole drill bits
2. Low air pressure holeDia.: 65-220mm
3. High air pressure hole Dia.: 85-305mm
4. Face type: Drop center/concave/convex/double gauge/flat
5. Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.
6. Inch available: 3", 4", 5", 6", 8", 12", etc...

Low Air Pressure DTH Hammer Technical Data

DTH hammer type CIR76 CIR90 CIR110 CIR130 CIR150
Bit Shank: CIR76 CIR90 CIR110 CIR110/CIR130 CIR150
Top Sub Thread: F48x10PIN F48x10PIN API 23/8" RGE BOX API 23/8" RGE BOX F70x10PIN
Bit Diameter: 76(mm) 90-120(mm) 110-150(mm) 130-175(mm) 150-200(mm)
Working Pressure: 4-10(bar) 5-10(bar) 5-10(bar) 5-10(bar) 5-10(bar)
CIR Series Low Air Pressure Down The Hole Bits:

Type		 Dia. Spline No. Weight (Kg)
CIR65
CIR70
CIR80
CIR80X
CIR90
CIR90
CIR90
CIR110
CIR110
CIR110W
CIR110W
CIR150
CIR150A
CIR150A
CIR170
CIR170A
CIR200W		 68
76
83
83
90
100
130
110
123
110
123
155
155
165
175
185
200		 6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6		 2.50
3.40
3.45
3.50
3.50
4.50
9.50
6.40
8.50
6.50
8.80
12.0
12.5
14.0
15.5
16.0
48.0
We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

Our DTH Bits has following advantages:

1. 95% quality similarity with world top class brands,such as atlas Copco etc.

2. Strong ability in drilling tools production.

3.Strick quality control.

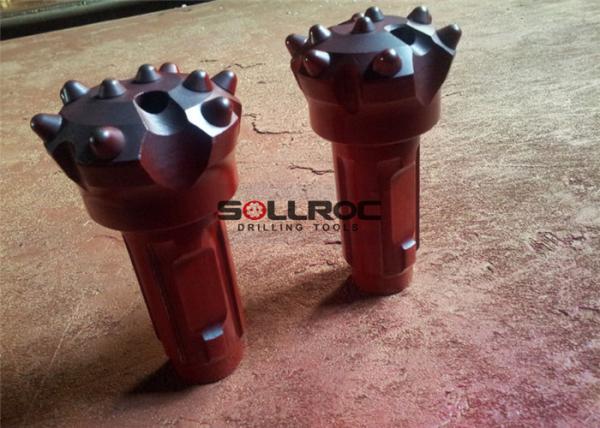

Product photos
