5 127mm Reverse Circulation Hammer RE543 RC Drill Bits For RC Drilling
5 127mm Reverse Circulation Hammer RE543 RC Drill Bits For RC Drilling
Specifications
Brand Name :
SOLLROC
Model Number :
RE542,RE543,RE545,RE547 RC bits
Certification :
SGS
Place of Origin :
China
MOQ :
1 set
Supply Ability :
2000 sets per month
Delivery Time :
3-4 weeks
Packaging Details :
Cartons + ply wood case (no plastic)
Product name :
127mm 130mm 133mm RE543 RC bits
Color :
black, gold
Face shape :
Drop center, Concave
Keywrod 1 :
Atlas Copco RC hammer
Keyword 2 :
RC bits
Bit diameter :
4 1/2", 5", 5 1/4"
Description

5" 127mm Reverse Circulation Hammer RE543 RC Drill Bits For RC Drilling

RC bits Model RC4.5-E543 for shank RE543

Diameter No x Button diameter
mm		 Button angle Flushing holes Shroud Dia mm Weight
(kg)		 Part No.
mm inch Gauge Button Front Button
124 4 7/8 8 x 14mm 8 x 13mm 35 2 122 11.0 RC4.5-E543-124
127 5 8 x 14mm 8 x 14mm 35 2 125 11.2 RC4.5-E543-127
130 5 1/8 8 x 16mm 8 x 14mm 35 2 128 11.4 RC4.5-E543-130
133 5 1/4 8 x 16mm 9 x 14mm 35 2 131 11.7 RC4.5-E543-133

RC bits Model RC5-E545 for shank RE545

Diameter No x Button diameter
mm		 Button angle Flushing holes Shroud Dia mm Weight
(kg)		 Part No.
mm inch Gauge Button Front Button
124 4 7/8 8 x 14mm 8 x 13mm 35 2 122 11.0 RC5-E545-124
127 5 8 x 14mm 8 x 14mm 35 2 125 11.2 RC5-E545-127
133 5 1/4 8 x 16mm 9 x 14mm 35 2 131 11.7 RC5-E545-133
136 5 3/8 8 x 16mm 6x16+3x14 35 2 134 12.0 RC5-E545-136

RC bits Model RC5.5-E547 for shank RE547

Diameter No x Button diameter
mm		 Button angle Flushing holes Shroud Dia mm Weight
(kg)		 Part No
mm inch Gauge Button Front Button
136 5 3/8 8 x 16mm 6x16+3x14 35 2 134 14.2 RC5.5-E547-136
140 5 1/2 8 x 16mm 6x16+3x14 35 2 138 14.5 RC5.5-E547-140
143 5 5/8 8 x 16mm 6x16+3x14 35 2 141 14.7 RC5.5-E547-143
146 5 3/4 8 x 16mm 6x16+3x14 35 2 144 15.0 RC5.5-E547-146

RC Bits

External diameter Bit shank Hole range Connection thread
81mm RE531 Ø84mm- Ø100mm 3"-4" Remet
120.5mm PR40 Ø124mm- Ø142mm 3.5"-4" Remet 3.5"-4" Metzke
100mm RE004/RE004R Ø104mm- Ø120mm 3.5"-4" Remet 4" Metzke
94mm RE3.5 Ø98mm- Ø115mm 3"-4" Remet
99mm HRC45 Ø114mm- Ø127mm Upon the thread of the drill tube
121mm PR52 Ø126mm- Ø142mm 4"-4.5" Remet 4"-4.5" Metzke
126mm PR52 Ø133mm- Ø146mm Upon the thread of the drill tube
124mm PR52/PR52R Ø130mm- Ø146mm 4"-4.5" Remet 4"-4.5" Metzke
130mm PR54 Ø135mm- Ø150mm 4.5" Remet 4.5" Metzke
126mm HRC55 Ø133mm- Ø152mm Upon the thread of the drill tube
146mm RC62/RC62R Ø152mm- Ø190mm Upon the thread of the drill tube
146mm HRC62 Ø155mm- Ø190mm Upon the thread of the drill tube
180mm RC82/RC82R Ø155mm- Ø190mm Upon the thread of the drill tube
240mm RC100/RC100R Ø250mm- Ø370mm Upon the thread of the drill tube
109.5mm RE542 Ø113mm- Ø130mm 3.5"-4" Remet 4" Metzke
116mm RE542 Ø120mm- Ø135mm 3.5"-4" Remet 4" Metzke
117.5mm RE545 Ø122mm- Ø135mm 4"-4.5" Remet 4"-4.5" Metzke
124.5mm RE547 Ø130mm- Ø146mm 4.5" Remet 4.5" Metzke
132mm MX5456 Ø136mm- Ø150mm 4.5" Remet 4.5" Metzke



Reverse Circulation RC drilling hammers and hammer drill bits provide outstanding performance along with outstanding reliability and simplicity. Our reverse circulation hammers are suitable for any exploration and grade control process to obtain an accurate sample with no contamination. RC drilling hammers can in most instances carry out continuous sample collection in a fraction of the time necessary with conventional or wireline coring.

Quality warranty:
SOLLROC products are made of high quality steel and all spares are inspected strictly at every production steps before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using plywood cases and pallet for seaworthy to protect products and avoid the damagement during transportation by sea. Using cartons and plywood cases for air worthy to less the weight and save the freigth. Also we can customize package according to your special requests. Special mark is available.
Production time:
3-4 weeks after received payment in advance.
Transportation:
By air, by Express or by sea according to your requests.


Sollroc is recognized as one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools with more 10 years of experience. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.

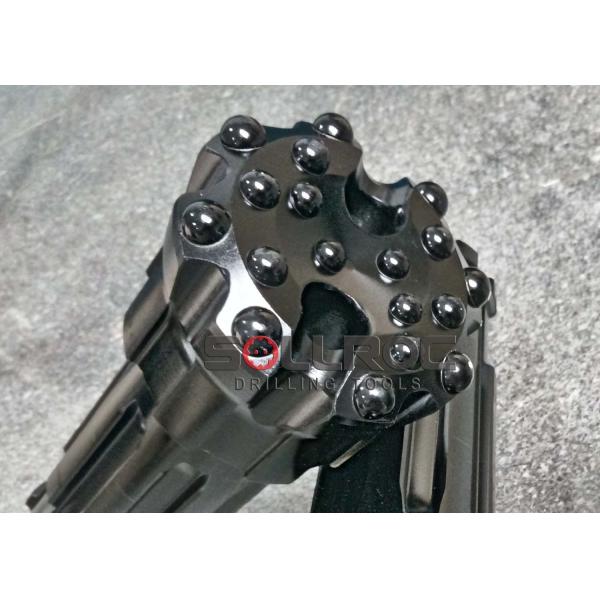

RC bit photo:

5

For more information please contact:

Changsha Sollroc Engineering Equipments Co., Ltd

Tel: 86-731-85551632 Fax: 86-731-85551635

Emai: info@sollroc.com

Skype: jessicaling1982

Skype: yongzhedrill

Website: www.sollroc.com
