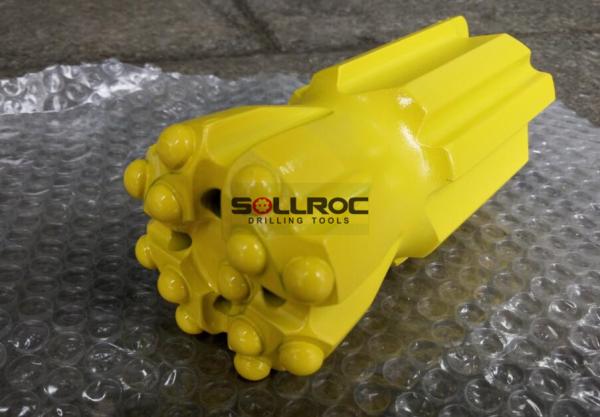

89MM T38 Thread Bit Retrac Button Bits Top Hammer Drill Bit For Drilling
89MM T38 Thread Bit Retrac Button Bits Top Hammer Drill Bit For Drilling
89MM T38 Thread Bit Retrac Button Bits Top Hammer Drill Bit For Drilling
89MM T38 Thread Bit Retrac Button Bits Top Hammer Drill Bit For Drilling
Specifications
Brand Name :
SOLLROC
Model Number :
T38 89mm
Certification :
SGS
Place of Origin :
China
MOQ :
1 set
Supply Ability :
20000 sets per month
Delivery Time :
3-4 weeks
Packaging Details :
Cartons + ply wood case (no plastic)
Product name :
T38 89mm button bit
Color :
Blue Yellow
Applications :
Top hammer drilling
Face shape :
Flat, Drop center
Diameter :
64mm,76mm, 89mm
Material :
Tungsten Carbide
Description

89MM T38 Thread Bit Retrac Button Bits Top Hammer Drill Bit For Drilling

Product Specification: T38 Button Bits

T38 rock drill button bit for construction are made of alloy steels and the best carbides made in China, we produce all threaded button bits by hot press technology.

A comprehensive range of various button bits shown as below:

Thread sizes: R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST60, GT60;
Head diameters: 33mm ~ 152mm;
Face designs; flat face, drop center, uni-face;
Skirt designs: normal, retract, straigh retract

R38/T38 button bits,normal skirt

Bit diameter

(mm)

 Angle

Button

Type

Thread

Water

hole

 Part NO.
64 30° Spherical/Ballistic 38T 4 Q1264-38TA
64 30° Spherical/Ballistic 38T 2 Q1264-38TB
64 30° Spherical/Ballistic 38T 5 Q1364-38T
64 30° Spherical/Ballistic 38T 3 Q964-38T
70 30° Spherical/Ballistic 38T 4 Q1270-38T
76 35° Spherical/Ballistic 38T 4 Q1276-38TA
76 40° Spherical/Ballistic 38T 2 Q1276-38TA
76 35° Spherical/Ballistic 38T 4 Q1276-38TC
76 35° Spherical/Ballistic 38T 4 QA1176-38T
89 40° Spherical/Ballistic 38T 2 QA1376-38T
89 35° Spherical/Ballistic 38T 5 Q1289-38T
89 35° Spherical/Ballistic 38T 4 QA1489-38T
89 35° Spherical/Ballistic 38T 3 Q1189-38T
102 35° Spherical/Ballistic 38T 2 Q14102-38T

Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
(1) Thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60
(2) Diameter: 38-127mm.

Before Official Order, please confirm below informations:
(1) Thread Type
(2) Standard or Retrac
(3) Bit button shape (tip shape)--Spherical or Ballistic
(4) Bit face shape--Drop Center, Flat Face, Convex, Concave, etc...
