Thread 2 3/8'' API REG 4'' SD4 Down The Hole Hammer
Thread 2 3/8'' API REG 4'' SD4 Down The Hole Hammer
Thread 2 3/8'' API REG 4'' SD4 Down The Hole Hammer
Thread 2 3/8'' API REG 4'' SD4 Down The Hole Hammer
Specifications
Brand Name :
SOLLROC
Model Number :
SD4
Certification :
SGS
Place of Origin :
China
MOQ :
1
Price :
500
Payment Terms :
T/T,
Supply Ability :
10000pcs/month
Delivery Time :
22-28 working days
Packaging Details :
Cartons + ply wood case (no plastic)
Material :
special steel
Shank :
SD4
Length :
1083mm
External Diameter :
99mm
Top Sub Thread :
API2 3/8"REG
Weight(less bit) :
40.9kg
Hole range :
110mm-130mm
Color :
Black or your required
Quality :
Best
name :
dth hammer
Application :
ore mining,Crushing,underground mining teeth,Ground engineering
Description

Thread 2 3/8'' API REG Abrasive Rock 4'' SD4 Drill Hammer For Mining

Product introduction:

A down-the-hole drill, usually called DTH by most professionals, is basically a mini jackhammer screwed on the bottom of a drill string. The fast hammer action breaks hard rock into small flakes and dust and is blown clear by the air exhaust from the DTH hammer. The DTH hammer is one of the fastest ways to drill hard rock. Now smaller portable drilling rigs with DTH hammers can drill as fast as much larger truck rigs with this newer technology.


SD4 DTH hammer overview:
shank SD4
Length(less bit) 1083mm
External diameter 99mm
Top sub thread API 2 3/8”REG
Weight(less bit) 40.9kg
Hole range 110mm-130mm
Working pressure 1.0-2. 5Mpa
Impact rate at 1.4Mpa 28Hz
Recommended rotation speed 30-70rpm

Product advantages:

1. More efficient energy transfer.

2. Faster drilling speed, 15%-30% higher than others.

3. Lower air consumption and lower oil consumption. oil consumption is about 10% lower than others

Application:

It can use for water well drilling,Mining,Blasting drilling ,construction and etc.

Structure picture:
Thread 2 3/8'' API REG 4'' SD4 Down The Hole Hammer
Company information:

Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.

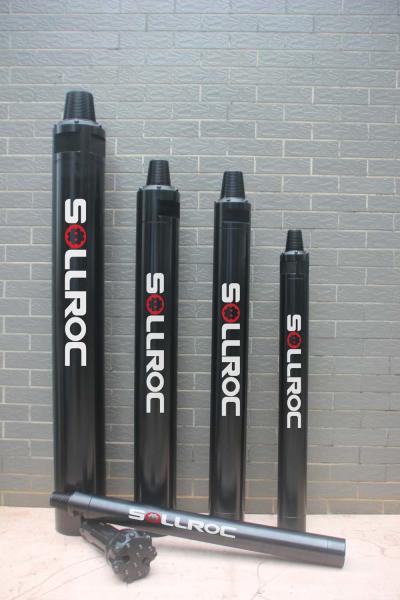

Detailed photo:

Thread 2 3/8'' API REG 4'' SD4 Down The Hole Hammer

Thread 2 3/8'' API REG 4'' SD4 Down The Hole Hammer

Thread 2 3/8'' API REG 4'' SD4 Down The Hole Hammer
