Specifications
Model Number :
CSD5
Place of Origin :
China
Brand Name :
Super Diamond
Certification :
ISO
MOQ :
1
Price :
Negotiable
Packaging Details :
Fixed plastic mold + carton + wooden box
Delivery Time :
5-8 work days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
According to order quantity
Name :
high air pressure dth hammers with foot valve
Weigth(without bit) :
72.5kg
Length(without bit) :
1175mm
Application :
Water well drilling,Rock Drilling,Mining or Marble Quarry or Water Well Drilling
Material :
Alloy Steel
Working Pressure :
1.0-2.5Mpa
Type :
DTH hammer
Recommended rotation speed :
20-35r/min
Description

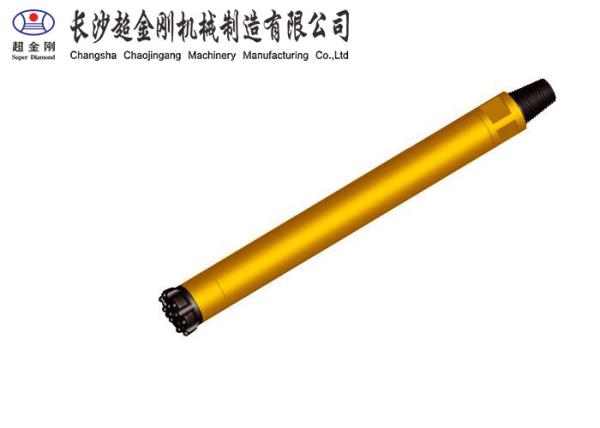

Water Well Drilling DTH Hammer Tools , Carbide Steel Downhole Drilling Tools

It has the following advantages:

valve air distuibution. More reliable.

Simple design of the piston, long life.

More efficient energy transfer, faster drilling speed, lower air consumption and lower oil consumption.

Fewer internal parts, simple structure, longer life less failure and easier to maintain because all the parts are heat treated.

Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by mult - step thread.

High Drilling Speed Down The Hole Hammer 20-35r/Min Recommended Rotation Speed

Length(without bit) Weigth(without bit) External diameter Bit Shank Hole range Connection Tread
1175mm 72.5kg φ125mm SD5
CSD5
φ135-φ155 API3 1/2" Reg
Working Pressure Impact rate at 1.5Mpa Recommended rotation speed Air consumption
1.0Mpa 1.8Mpa 2.4Mpa
1.0-2.5Mpa 25HZ 20-35r/min 9m³/min 15m³/min 23m³/min

DTH Air Hammer gives you more power down the hole, making your investment produce more in less time. Our DTH hammer is used in many different applications which include but are not limited to heavy construction, mining, oil and gas, quarries, and water-well.

Description

1. Smooth performance and long service life of DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

2. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

3. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.

4. Interchangeable with DTH bit and drill pipe.

Changsha Chao Diamond Machinery Manufacturing Co., Ltd. is a modern high-tech enterprise specializing in research and manufacture of rock drilling machinery and pneumatic tools in China. The company has rich scientific research and production experience, using the best raw materials, advanced production technology and rigorous testing methods, to produce products with superior performance and stable and reliable quality. "Super Diamond" brand rock drilling and pneumatic series products are sold well all over the country due to their superior performance, stable and reliable quality. They have been exported in batches to more than 20 countries and regions, such as Korea, Brazil, Australia and South Africa, and are well received by users.


The company is located in Liuyang, Changsha, a beautiful fireworks city. It covers an area of 26600 square meters. Its production plant covers 22,000 square meters. It has nearly 100 employees, 26 engineers and technicians, and 8 senior engineers. There are nearly 400 sets of professional equipment for research, manufacture and testing of rock drilling machinery and pneumatic tools. The company develops and manufactures the most advanced positive and negative circulation DTH impactors; reverse circulation impactors; various positive and negative circulation DTH drills; eccentric follow-up pipe drilling tools, centerline follow-up pipe drilling tools, slider type follow-up pipe drilling tools, double follow-up pipe drilling tools for follow-up drilling in overburden and loose rock strata; various thread drills; It is widely used in earthwork engineering, mining, water well engineering and construction engineering, geothermal drilling, municipal engineering and other fields.Adhering to the spirit of excellent innovation, the company provides high-quality products, advanced technology, comprehensive service, the pursuit of customer-centered, quality-oriented, to provide overall rock drilling solutions as the development goal, sincerely hope to work with old and new friends to win-win and create a better tomorrow.
