Geological Exploration Use DTH Tapered Button Bits For Mission Series
Geological Exploration Use DTH Tapered Button Bits For Mission Series
Specifications
Brand Name :
New Diamond
Model Number :
Mission series
Certification :
ISO9001:2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
According to order quantity
Delivery Time :
5-8 work days
Packaging Details :
Carton packaging and wooden box packing
Tail length (without head) :
225-329mm
Processing Type :
Forging
THE Drill Head Diameter(mm) :
90-325mm
Spline Key Number :
8-12
Bit face :
Center drop/Flat/convex/concave/double gauge face bits
NO.Air Holes :
2
Description

Description

The new diamond diamond drill impactor works efficiently, and reliability and longevity are the advantages of our product. Impactor and drill bit are the worst in all industrial equipments, and they are uncontrollable and unpredictable in their work process. The coordination precision of the inner parts of the new diamond dive drill impactor is high. The new diamond ensures the material and processing quality of the parts of the impactor, and the good lubrication conditions can significantly improve the efficiency, stability and life of the impactor.


Specifications

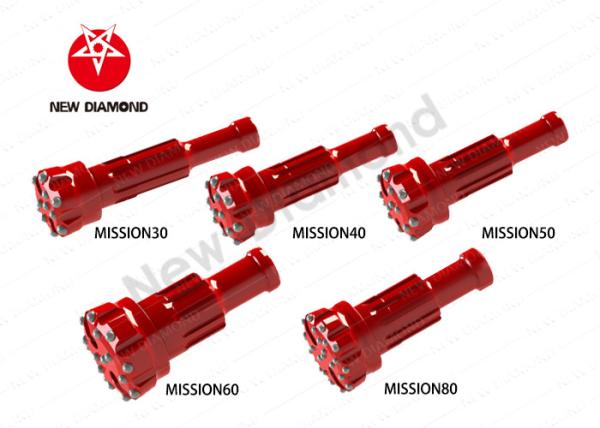

Mission Head shape


Diameter
mm

 Number of vents NO X button diamter weight (KG)
Toothed Gauge Front
Mission30 Flat Face Bit 90 2 Round Button 8XØ12 6XØ12 -
Convex Face 100 2 Round Button+Ballistic Button 6XØ14 3XØ13+2XØ12 -


Mission40

 Convex Face 115 2 Round Button 7XØ16 6XØ14 -
Flat Face Bit 120 2 Round Button 8XØ14 7XØ14 -
Concave Face 127 2 Round Button 8XØ14 7XØ14 -


Mission50

 Convex Face 140 2 Round Button 7XØ18 4XØ15+3XØ14 -
Concave Face 152 2 Round Button 8XØ18 4XØ15+3XØ14 -
Mission60 Concave Face 154 2 Round Button 8XØ18 4XØ16+4XØ15 -
Convex Face 165 3 Round Button 9XØ18 6XØ16+4XØ15 -
Concave Face 185 2 Round Button 8XØ18 6XØ16+5XØ15 -
Concave Face 203 2 Round Button 10XØ18 8XØ16+6XØ15 -
Mission80 Convex concave 235 2 Round Button 12XØ18 8XØ18+14XØ16 -
Convex concave 325 2 Round Button 15XØ18 12XØ18+24XØ16 -
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.
Feature Advantage

1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. New Diamond's bits are widely used in different rock formations like carbonate rock,limestone,chalk rock, clay rock,siltstone and sandstone;
4. It can greatly reduce the drilling cost, because of its high drilling speed and life span, which reduces the times to changes bits in the drilling service.

DTH Drill Bits:


1, Direct sale
2, reasonable price
3. high efficiency
Using:
tungsten carbide button bit drilling series
Suitable for cutting, drilling various hard Non-ferrous materials, such as marble, granite, glass, ceramic, hard concrete and brick.

Applications

It is mainly used in geological exploration, coal mine, water conservancy and hydropower, highway, railway, bridge, construction and so on.

The appearance of the picture is different from that of the actual product, and the actual product is the standard.
