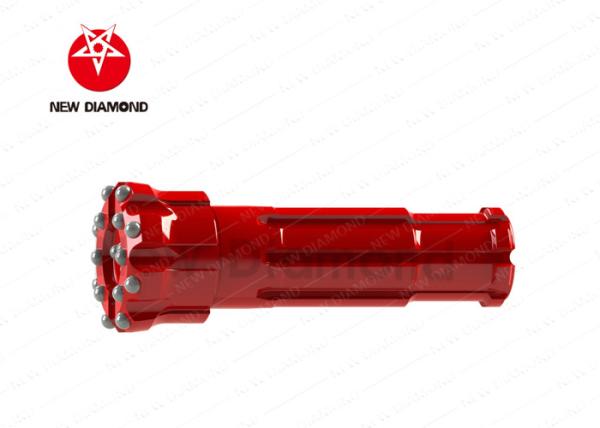

PR52 Percussive Rotary Premium Drilling Tools / Button Drill Bit For Hydrology
PR52 Percussive Rotary Premium Drilling Tools / Button Drill Bit For Hydrology
Specifications
Brand Name :
New Diamond
Model Number :
PR52
Certification :
ISO9001:2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
According to order quantity
Delivery Time :
5-8 work days
Packaging Details :
Carton packaging and wooden box packing
Diameter (mm) :
133-140mm
No head length(mm) :
282mm
Number of vents :
2
Head shape :
Flat Face Bit/Concave Face/Convex Face
Material :
Alloy Steel
Spline Key Number :
8
Description

PR52 percussive rotary reverse circulation bit for hydrology and water well DTH Button Bits

Description

New Diamond's bits always keep high performance,with the advantages of long life, high drilling efficiency, middle-speed drilling in low pressure environment, good resistance protection and most cost effective etc..The bits have been widely used in geological exploration, coal mining,water well drilling, hydropower construction, road and railway construction,core sampling etc.

Applications

It is mainly used in geological exploration, coal mine, water conservancy and hydropower, highway, railway, bridge, construction and so on.

Specifications

PR52 Head shape

Diameter

(mm)

 Number of vents NO X button diamter weight (KG)
Toothed Gauge Toothed
PR52 Center Drop Bit 133 2 Round Button+ Round Button 8XØ16 8XØ14
Center Drop Bit 137 2 Round Button+ Round Button 8XØ16 6XØ16+3XØ14
Center Drop Bit 140 2 Round Button+ Round Button 8XØ16 6XØ16+3XØ14
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

Feature Advantage

1. Price commitment: in order to ensure the high reliability of products, raw material selection are usinggrapefruit brand products; under the same competitive conditions, and not to reduce product technicalperformance on the basis of sincerity at a favorable price to customers.


2. Quality commitment: product manufacturing and testing have quality records and inspection data; the performance of the product can withstand customer inspection.


3. Customer service: in order to create new diamond brand, enhance the visibility of enterprises,establish corporate image, we serve customers with the principle of "preferential prices, good service, reliableproduct quality" principle.

The appearance of the picture is different from that of the actual product, and the actual product is the

standard.
