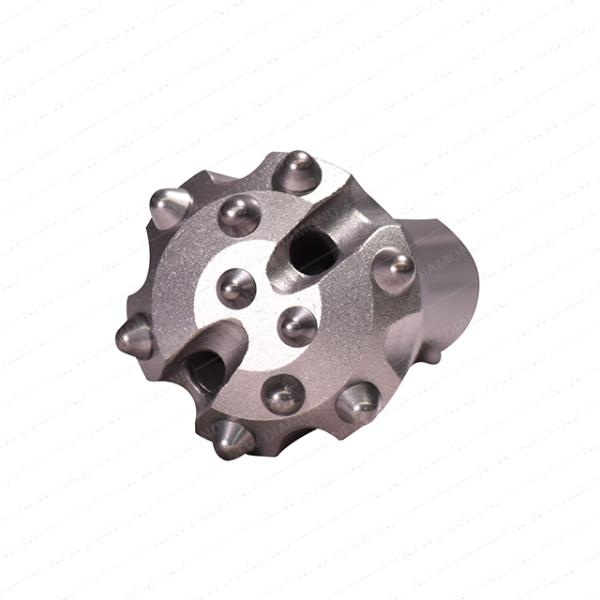

Middle Low Pressure Dth Hammer Cir110 110mm Bit For Water Well Drilling
Middle Low Pressure Dth Hammer Cir110 110mm Bit For Water Well Drilling
Specifications
Brand Name :
New Diamond
Model Number :
CIR110
Certification :
ISO9001:2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
According to order quantity
Delivery Time :
3-5 days for sample
Packaging Details :
Carton packaging and wooden box packing
Type :
Drill Bit
Processing Type :
Forging
Use :
Ore Mining
Color :
Required
Button shape :
Spherical/Ballistic/parabolic/sharp/falt bottons
Description

Middle Low Pressure Dth Hammer Cir110 110mm Bit For Water Well Drilling

Description

Hunan New Diamond offers top quality DTH hammers and bits which have been tested in the hardest rock formation. Our bits use quality hardened steel alloy for the bit body and premium quality tungsten carbide buttons. With superb performance and long life span. Our bits won high reputation among our customers.

1. Button Shape: Spherical,Semi-ballistic,Ballistic.
2. Durable performance, wear resistant and withstanding large impacting force.
3. Long life span.
5. Fast delivery time.

Feature Advantage
1. Low cost: We are the manufacturer of DTH hammers and button bits.

2. Quality assurance: professional heat treatment technology, high wear resistance.

3. Inventory guarantee: stable inventory, product specifications, models rich.

4. After sales guarantee: Prompt reply in 2 hours during the working time.

Applications

It is mainly used in geological exploration, coal mine, water conservancy and hydropower, highway, railway, bridge, construction and so on.

Specifications

Type Dia(mm) Spline NO Weight(kg)
CIR65 65 4 1.5
68 4 1.6
CIR70 76 4 2.0
85 4 2.3
CIR90 90 6 3.75
110 6 4.8
CIR110 110 6 6.2
130 6 8.05
140 6 9.0
CIR150 155 6 16.7
165 6 17.55
178 6 18.85
CIR170 195 6 24.2
203 6 26.35
Middle Low Pressure Dth Hammer Cir110 110mm Bit For Water Well Drilling

Middle Low Pressure Dth Hammer Cir110 110mm Bit For Water Well Drilling
