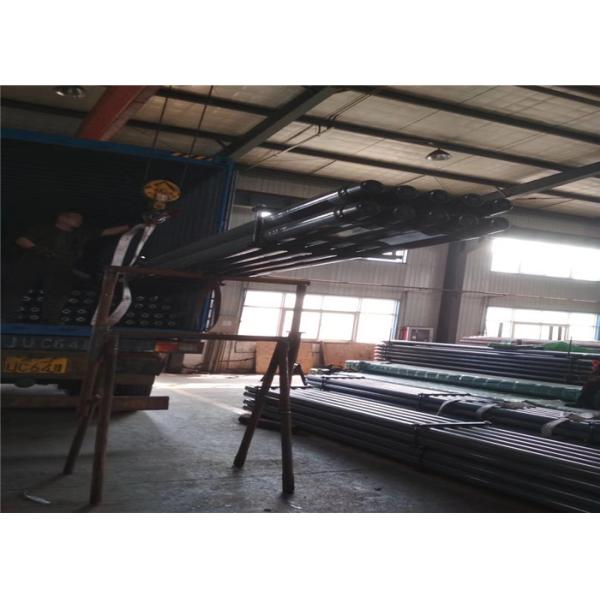

High Strength Water Well Drill Pipe With Thru Wall Heat Treated Tube Body
High Strength Water Well Drill Pipe With Thru Wall Heat Treated Tube Body
High Strength Water Well Drill Pipe With Thru Wall Heat Treated Tube Body
High Strength Water Well Drill Pipe With Thru Wall Heat Treated Tube Body
Specifications
Brand Name :
NO
Model Number :
Φ50 Φ60 Φ73 Φ83 Φ89 Φ102 Φ114 Φ127 Φ140 Φ168
Certification :
ISO API
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiation
Supply Ability :
10,000pcs per month
Delivery Time :
10-30 working days after payment

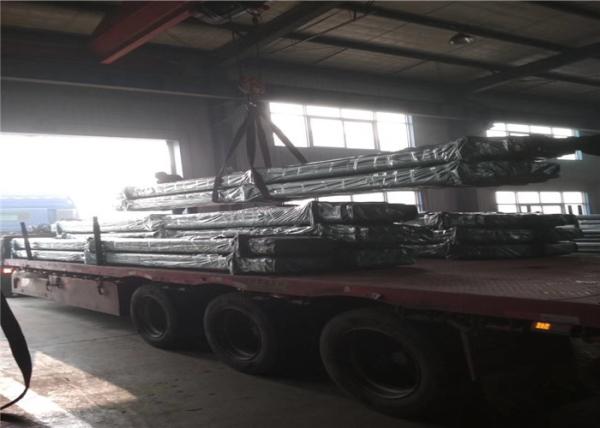

Packaging Details :
Steel Belt Iron Frame Export Wooden Case
Product name :
Drill Rod,Drill Pipe
Size :
2 3/8" - 6 5/8"
Advantage :
High Performance
Thickness :
7.11 - 12.7 mm
Thread :
API Standard
Packing :
in bundles
Description

High Strength Water Well Drill Pipe With Thru Wall Heat Treated Tube Body

Each of drill pipe is treated by shot peening. After shot peening treatment, surface of drill pipe and thread gets residual pressure stress. This stress can improve drill pipe anti-fatigue service life. Shot peening treatment on thread can help thread compound adhering to thread. Thread service life is improved.

HDD drill pipe is a tool applicable for transferring torque and tension of drillers in the process of directional drilling construction. Due to the fact that it has to bear torsion, tension, bending, friction and vibration in the process of directional construction, the requirements for processing process are very strict.

Drill rods for HDD machine. High strength, high tenacity, high elasticity. Dia from 42mm to 140mm. Length from 0.5m to 9.6m. Steel grade: E75/R780,G105,S135 We can make the drill rods for Vermeer,Case,Ditch Witch, Drillto, Gudeng, Xugong HDD machines, such as D16X20, D24X40, D50X100, D75, D80, D100, D130, JT1720, JT2720, JT2720 March I, JT4020, JT7020, API NC23-NC50, etc.

More details of High Strength Ditch Witch Drill Rods With Thru - Wall Heat Treated Tube Body

Size (in)

Nominal Weight

(1b/ft)

 OD of Pipe Body

Wall Thickness

of Pipe Body

 Grade Upset Type Conn. Type OD of Pin and Box ID of Pin
(in) (mm) (in) (mm) (in) (mm) (in) (mm)
2 3/8 6.65 2 3/8 60.32 0.280 7.11 EXGS EU NC26 (2 3/8 IF) 3 3/8 85.70 1 3/4 44.45
2 7/8 10.40 2 7/8 73.02 0.36 9.19 NC31 (2 7/8 IF) 4 1/8 104.80 2 50.80
3 1/2 13.30 3 1/2 88.90 0.37 9.35 NC38 (3 1/2 IF) 5 127.00 2 7/16 61.91
3 1/2 15.50 3 1/2 88.90 0.45 11.40 NC38 (3 1/2 IF) 5 127.00 2 1/8 53.98
4 14.00 4 101.60 0.33 8.38 NC46 (4 IF) 6 154.20 3 1/4 82.55
4 1/2 16.60 4 1/2 114.30 0.34 8.56 IEU NC40 (4 IF) 6 1/4 158.80 3 76.20
4 1/2 20.00 4 1/2 114.30 0.43 10.92 NC46 (4 IF) 6 1/4 158.75 2 1/2 63.50
5 19.50 5 127.00 0.36 9.19 NC50 (4 1/2 IF) 6 5/8 168.30 3 1/4 82.55
5 19.50 5 127.00 0.36 9.19 5 1/2 FH 7 177.80 3 3/4 95.25
5 25.60 5 127.00 0.50 12.70 NC50 (4 1/2 IF) 6 5/8 168.28 2 3/4 69.85
5 25.60 5 127.00 0.50 12.70 5 1/2 FH 7 1/4 184.15 3 1/4 82.55
5 1/2 21.90 5 1/2 139.70 0.36 9.17 5 1/2 FH 7 1/4 184.15 3 1/2 88.90
5 1/2 24.70 5 1/2 139.70 0.42 10.54 5 1/2 FH 7 1/4 184.15 3 1/2 88.90
6 5/8 25.20 6 5/8 168.28 0.33 8.38 6 5/8 FH 8 1/4 209.55 4 3/4 120.65
6 5/8 27.70 65/8 168.28 0.36 9.19 6 5/8 FH 8 1/4 209.55 4 3/4 120.65

Technical Parameters:

Grade Yield Strength Tensile Strength Extension Rate Impact Power Akv J
Min Max Min Min 10×10
Psi Mpa Psi Mpa Psi Mpa % (-20°C)
G105 105,000 724 135,000 931 115,000 793 15 ≥68
S135 135,000 931 165,000 1138 145,000 1000 13 ≥54

Our Services

1 We not only have ourselves design but also can accept customization

2 We have fast and on time delivery time

3 Every pipes have it's quality assurance

4 Contact our anytime if you have any question with bits.

5 24 hours on time reply

High Strength Water Well Drill Pipe With Thru Wall Heat Treated Tube Body
