High Performance Ditch Witch Drill Rods Seamless Drill Pipe Corrosion Resistance
High Performance Ditch Witch Drill Rods Seamless Drill Pipe Corrosion Resistance
High Performance Ditch Witch Drill Rods Seamless Drill Pipe Corrosion Resistance
High Performance Ditch Witch Drill Rods Seamless Drill Pipe Corrosion Resistance
Specifications
Brand Name :
NO
Model Number :
Φ50 Φ60 Φ73 Φ83 Φ89 Φ102 Φ114 Φ127 Φ140 Φ168
Certification :
ISO API
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiation
Supply Ability :
10,000pcs per month
Delivery Time :
10-30 working days after payment

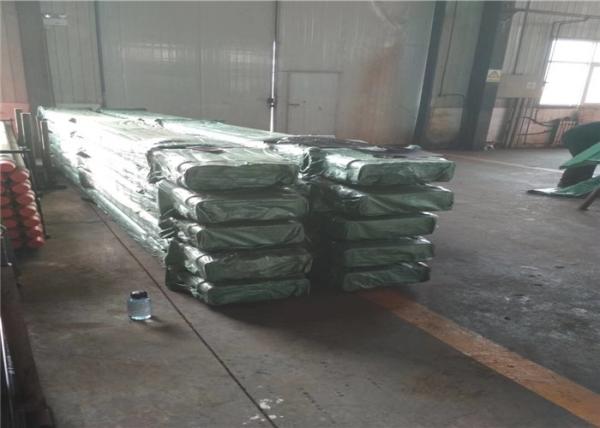

Packaging Details :
Steel Belt Iron Frame Export Wooden Case
Market :
all over the word
Packing :
in bundles
Thread :
As Required,etc. API REG
Advantage :
High Performance
Product name :
Drill Rod,Drill Pipe
Diameter :
2 3/8 inch-6 5/8 inch
Description

High Performance Ditch Witch Drill Rods Seamless Drill Pipe Corrosion Resistance

Our HDD drill rods can work together with various horizontal directional drill rigs within and beyond China,Double-step structure is used for its male and female threads, so this kind of drill rod has optimal sealing property and after torsion, there is little transformation in the rod

Drill rods for HDD machine. High strength, high tenacity, high elasticity. Dia from 42mm to 140mm. Length from 0.5m to 9.6m. Steel grade: E75/R780,G105,S135 We can make the drill rods for Vermeer,Case,Ditch Witch, Drillto, Gudeng, Xugong HDD machines, such as D16X20, D24X40, D50X100, D75, D80, D100, D130, JT1720, JT2720, JT2720 March I, JT4020, JT7020, API NC23-NC50, etc.

Technical Parameters of HDD Drill Rods:

No Specifications UnitWeight kg /pcs SteelGrade Matched drillrig
1 50×1.5m 15 G105 VermeerD10; case6010
2 50×2m 18 G105 VermeerD10; case6010
3 50×3m 25 G105 VermeerD10; case6010
4 60×2m 25 G105 VermeerD24×40; case6130
5 60×3m 35 G105 VermeerD24×40; case 6130
6 73×3m 45 G105 VermeerD50×100
7 73×4.5m 66 G105 VermeerD50×100
8 89×4.5m 100 G105 VermeerD80×100
9 89×6m 130 G105 Vermeer D80×100

Technical Parameters:

Grade Yield Strength Tensile Strength Extension Rate Impact Power Akv J
Min Max Min Min 10×10
Psi Mpa Psi Mpa Psi Mpa % (-20°C)
G105 105,000 724 135,000 931 115,000 793 15 ≥68
S135 135,000 931 165,000 1138 145,000 1000 13 ≥54

Technical Parameters:

Size O.D(mm) wall thickness (mm) Coupling O.D Thread type Max Torque Material
grade
73 73 10 99 D75 16 G105/S135
89 89 10 105.121 D100.NQ31,NQ38 25 G105/S135
102 101.6 8.36 127 NQ38 40 G105/S135
114 114.3 8.56 127 NQ38 65 G105/S135
127 127 9.19 168.3 NQ50 110 G105/S135

High Performance Ditch Witch Drill Rods Seamless Drill Pipe Corrosion Resistance

Our Services

1 We not only have ourselves design but also can accept customization

2 We have fast and on time delivery time

3 Every pipes have it's quality assurance

4 Contact our anytime if you have any question with bits.

5 24 hours on time reply

Features of HDD Drill Rods:


1. Pipe end upsetting technology, self connecting mode and heat treatment have been used in the manufacture of this kind of HDD drill rod. Thus, our drill rods in different specifications possess excellent mechanical properties.
2. Double-step structure is used for its male and female threads, so this kind of drill rod has optimal sealing property and after torsion, there is little transformation in the rod.
3. Chemical plating (electroless plating) is used on the surfaces of threads so as to improve the hardness of surface and abrasive resistance of thread.

High Performance Ditch Witch Drill Rods Seamless Drill Pipe Corrosion Resistance
