G 105 S 135 Grade Hdd Drill Pipe Male Female Double Step For Vermeer Machine
G 105 S 135 Grade Hdd Drill Pipe Male Female Double Step For Vermeer Machine
G 105 S 135 Grade Hdd Drill Pipe Male Female Double Step For Vermeer Machine
G 105 S 135 Grade Hdd Drill Pipe Male Female Double Step For Vermeer Machine
Specifications
Brand Name :
NO
Model Number :
Φ50 Φ60 Φ73 Φ83 Φ89 Φ102 Φ114 Φ127 Φ140 Φ168
Certification :
ISO API
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiation
Supply Ability :
10,000pcs per month
Delivery Time :
10-30 working days after payment
Packaging Details :

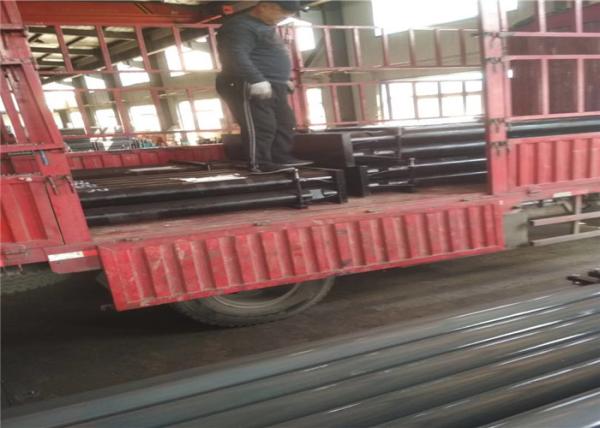

Steel Belt Iron Frame Export Wooden Case
Usage :
drill pipe for horizontal directional drilling machine
Market :
all over the word
Type :
Forged One Piece & Friction Welding
Advantage :
High Performance
Matched machine :
VERMEER MACHINE
Double-step structure :
male and female
Description

G 105 S 135 Grade Hdd Drill Pipe Male Female Double Step For Vermeer Machine

Our HDD drill rods can work together with various horizontal directional drill rigs within and beyond China.

Chemical plating (electroless plating) is used on the surfaces of threads so as to improve the hardness of surface and abrasive resistance of thread.

HDD DRILL Pipe end upsetting technology, self connecting mode and heat treatment have been used in the manufacture of this kind of HDD drill rod. Thus, our drill rods in different specifications possess excellent mechanical properties.

Double-step structure is used for its male and female threads, so this kind of drill rod has optimal sealing property and after torsion, there is little transformation in the rod.

HDD DRILL ROD FOR VERMEER MACHINE

Vermeer Machine Mfg. Method Tube OD Tool
Joint OD		 Length Weight
(lbs.)		 Connection Max Torque (ft./lbs.) Bend Radius
(% Sloper
Per Rod)		 Rack
D7X11, D9X13 1-Pc. Forged 1.660″ 1.875″ 6′ 26 Firestick 1 #200 1,500 6.2% 33/50
D16X20, D18X22 1-Pc. Forged 1.900″ 2.125″ 10′ 52 Firestick 1 #250 2,000 10.2% 40
D20X22, D24X26, D23x30 1-Pc. Forged 2.0625″ 2.250″ 10′ 57 Firestick 1 #400 2,600 9.8% 40
D24X40, D23x30 1-Pc. Forged 2.375″ 2.625″ 10′ 77 Firestick 1 #600 4,000 9.3% 50
D36X50, D40x55 (#650 x 10′) 1-Pc. Forged 2.375″ 2.750″ 10′ 79 Firestick 1 #650 5,000 9.3% 50/52
D36X50 (#650 x 15′) 1-Pc. Forged 2.375″ 2.750″ 15′ 113 Firestick 1 #650 5,000 13.9% 40
D36X50, D40x55 (#700×10′) 1-Pc. Forged 2.625″ 3.100″ 10′ 117 Firestick 1 #700 5,000 6.9% 45
D36X50, D40x55 (#700×15′) 1-Pc. Forged 2.625″ 3.100″ 15′ 165 Firestick 1 #700 5,000 10.4% 35
D50x100, D60x90 1-Pc. Forged 2.875″ 3.250″ 15′ 175 Firestick 1 #900 9,000 8.7% 40
D80X100, D50x100, D60x90 1-Pc. Forged 3.500″ 3.625″ 15′ 220 Firestick 1 #800 10,000 7.5% 12/24
D100X120 1-Pc. Forged 3.500″ 4.375″ 20′ 335 Firestick 1 #1000 15,000 10.2% 9/
Grade Yield Strength Tensile Strength Extension Rate Impact Power Akv J
Min Max Min Min 10×10
Psi Mpa Psi Mpa Psi Mpa % (-20°C)
G105 105,000 724 135,000 931 115,000 793 15 ≥68
S135 135,000 931 165,000 1138 145,000 1000 13 ≥54


G 105 S 135 Grade Hdd Drill Pipe Male Female Double Step For Vermeer Machine


Our Services
1 We not only have ourselves design but also can accept customization
2 We have fast and on time delivery time
3 Every pipes have it's quality assurance
4 Contact our anytime if you have any question with bits.
5 24 hours on time reply

G 105 S 135 Grade Hdd Drill Pipe Male Female Double Step For Vermeer Machine
