High Performance Flat HDD Drill Pipe Anti Rust Grade E75 X95 R780 G 105 S 135
High Performance Flat HDD Drill Pipe Anti Rust Grade E75 X95 R780 G 105 S 135
High Performance Flat HDD Drill Pipe Anti Rust Grade E75 X95 R780 G 105 S 135
High Performance Flat HDD Drill Pipe Anti Rust Grade E75 X95 R780 G 105 S 135
Specifications
Brand Name :
NO
Model Number :
Φ50 Φ60 Φ73 Φ83 Φ89 Φ102 Φ114 Φ127 Φ140 Φ168
Certification :
ISO API
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiation
Supply Ability :
10,000pcs per month
Delivery Time :
10-30 working days after payment

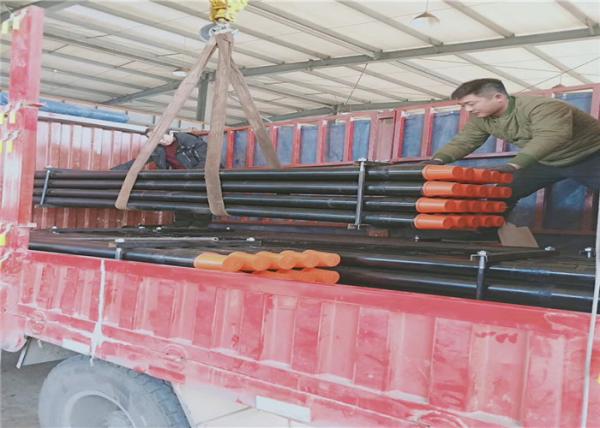

Packaging Details :
Steel Belt Iron Frame Export Wooden Case
Type :
drilling pipe or drilling rod
Material :
E75,X95,R780,G105,S135
Size :
2 3/8" - 6 5/8" API REG
Advantage :
High Performance
Market :
all over the word
Packing :
in bundles
Description

High Performance Flat HDD Drill Pipe Anti Rust Grade E75 X95 R780 G 105 S 135

Drill rods for HDD machine. High strength, high tenacity, high elasticity. Dia from 42mm to 140mm. Length from 0.5m to 9.6m. Steel grade: E75/R780,G105,S135 We can make the drill rods for Vermeer,Case,Ditch Witch, Drillto, Gudeng, Xugong HDD machines, such as D16X20, D24X40, D50X100, D75, D80, D100, D130, JT1720, JT2720, JT2720 March I, JT4020, JT7020, API NC23-NC50, etc.

More information of drill pipe:

Steel grade OD Internal coating Hardbanding Length

E75

X95

R780

G105

S135

2 3/8"~5 1/2"

(60.3~139.7mm)

TC2000

TC3000

TK34

TK34P

Arnco100XT

Arnco300XT

Armacor-M

TCS-Ti

TCS-8000

R1:6.1-7.01m

R2:8.84-9.75m

R3:12.19-13.72m

Specification of the forged drill Pipe for Chinese all Brand HDD machine

Size Connection Dimension of the drilling Pipe Tempering and Quenching Min Bending Radius Max Torque
OD of the Tube Wall Thickness OD of the joints /upset Working Length Weight
(mm) (mm) (mm) (mm) ( kg) Grade (m) Nm
50x2000mm DH50 50 6.5 57 2000 20 S135 29 3000
60X3000mm DH60-1 60 6.5 66.7 3000 35 S135 33 6300
60X3000mm DH60-1 60 6.5 70 3000 35 S135 33 6300
73X3000mm NC23(DH23) 73 7.5 80 3000 45 S135 45 13000
73x3000mm NC26(2 3/8IF) 73 10 87 3000 55 S135 51 16000
83X3000mm D80 Firestick1 83 9 92 3000 58 S135 65 18000
83x4500mm D80 Firestick1 83 9 92 4500 84 S135 65 18000
89X4500mm NC31(2 7/8IF) 89 10 104.8 4500 100 S135 72 24000

The specification list HDD drill pipe (Friction welding)

Nomiated Dimension Nomiated weight Tube joints Bearing torque comparison
material Upse tting OD
(mm)		 Wall thickness of the pipe
(mm)		 thread OD of the joints
d(mm)		 ID of the joints
d(mm)		 Dimeter of the angling
DF(mm)		 Big clamp space of the pin joints
LPB (mm)		 Big clamp space of the box joints
LPB (mm)		 OD of the welding joints
DTE/
DPE (mm)
3 1/2 13.3 R
G
S		 EU 88.9 9.35 (11.4) NC31 104.8
104.8
104.8		 50.8
50.8
41.28		 100.41
100.41
100.41		 177.8
177.8
177.8		 228.6
228.6
228.6		 80.96
80.96
80.96		 0.98
0.87
0.86
4 14 R
G
S		 EU 101.6 8.38 (9.19) NC38 127
127
127		 65.09
61.91
53.98		 116.28
116.28
116.28		 203.2
203.2
203.2		 266.7
266.7
266.7		 98.43
98.43
98.43		 0.97
0.83
0.9
4 1/2 16.6 E
X
G
S		 IEU 114.3 8.56 NC46 158.8
158.8
158.8
158.8		 82.55
72.6
76.2
69.85		 145.26
145.26
145.26
145.26		 177.8
177.8
177.8
177.8		 254
254
254
254		 119.06
119.06
119.06
119.06		 1.09
1.01
0.91
0.81
20 E
X
G
S		 10.92 158.75
158.75
158.75
158.75		 76.2
69.85
63.5
57.15		 145.3
145.3
145.3
145.3		 177.8
177.8
177.8
177.8		 254
254
254
254		 119.07
119.07
119.07
119.07		 1.07
0.96
0.93
0.81
16.6 E
X
G
S		 EU 8.56 NC50 168.28
168.28
168.28
168.28		 95.25
95.25
95.25
88.9		 154.0
154.0
154.0
154.0		 177.8
177.8
177.8
177.8		 254
254
254
254		 127.0
127.0
127.0
127.0		 1.23
0.97
0.88
0.81
20 E
X
G
S		 10.92 168.28
168.28
168.28
168.28		 92.08
88.9
88.9
76.2		 154.0
154.0
154.0
154.0		 177.8
177.8
177.8
177.8		 254
254
254
254		 127.0
127.0
127.0
127.0		 1.07
0.96
0.96
0.81
5 19.5 E
X
G
S		 IEU 127 9.19 168.28
168.28
168.28
168.28		 95.25
88.9
82.5
69.85		 154.0
154.0
154.0
154.0		 177.8
177.8
177.8
177.8		 254
254
254
254		 130.18
130.18
130.18
130.18		 1.23
0.97
0.88
0.81
25.6 E
X
G
S		 12.7 168.28
168.28
168.28
168.28		 88.9
76.2
69.85
69.85		 154.0
154.0
154.0
154.0		 177.8
177.8
177.8
177.8		 254
254
254
254		 130.18
130.18
130.18
130.18		 1.02
0.96
0.86
0.87
19.5 E
X
G
S		 9.19 5 1/2FH 177.8
177.8
177.8
184.15		 95.25
95.25
95.25
88.9		 170.7
170.7
170.7
170.7		 203.2
203.2
203.2
203.2		 254
254
254
254		 130.18
130.18
130.18
130.18		 1.53
1.21
1.09
0.98
25.6 E
X
G
S		 12.7 177.8
177.8
184.15
184.15		 88.9
88.9
88.9
82.55		 170.7
170.7
170.7
170.7		 203.2
203.2
203.2
203.2		 254
254
254
254		 130.18
130.18
130.18
130.18		 1.21
0.95
0.99
0.83
5 1/2 21.9 E
X
G
S		 139.7 9.17 177.8
177.8
184.15
190.5		 101.6
95.25
88.9
76.2		 170.7
170.7
170.7
180.2		 203.2
203.2
203.2
203.2		 254
254
254
254		 144.46
144.46
144.46
144.46		 1.11
0.98
1.02
0.96
24.7 E
X
G
S		 10.54 177.8
184.15
184.15
190.5		 101.6
88.9
88.9
76.2		 170.7
170.7
170.7
180.2		 203.2
203.2
203.2
203.2		 254
254
254
254		 144.46
144.46
144.46
144.46		 0.99
1.01
0.92
0.86
6 5/8 25.2 E
X
G
S		 168.3 8.38 6 5/8FH 203.2
203.2
209.55
215.9		 127.00
127.00
120.65
107.95		 195.7
195.7
195.7
195.7		 203.2
203.2
203.2
203.2		 279.4
279.4
279.4
279.4		 176.21
176.21
176.21
176.21		 1.04
0.82
0.87
0.86
27.7 E
X
G
S		 9.19 203.20
209.55
209.55
215.90		 127.00
120.65
120.65
107.95		 195.7
195.7
195.7
195.7		 203.2
203.2
203.2
203.2		 279.4
279.4
279.4
279.4		 176.21
176.21
176.21
176.21		 0.96
0.89
0.81
0.80

Drill pipe quality control:

a) Before order to be confirmed, the raw material of pipe body and tool joint should be booked from famous big steel enterprises in China

b) Raw material’s size, quantity, length, mechanical property are checked by our QC staff and factory own laboratory

c) Every drill pipe has nondestructive inspection , cleaned and thread oil before packing.

d) Before delivery clients could send one QC or point the third party to check the quality such SGS, BV or others

Drill pipe usage notes:

1. New drill pipe should be pasted thread oil before connection

2. Make up and break at least 3 times before drilling

3. Hard bending and plastic coating can be processed according to clients’ special requirements
