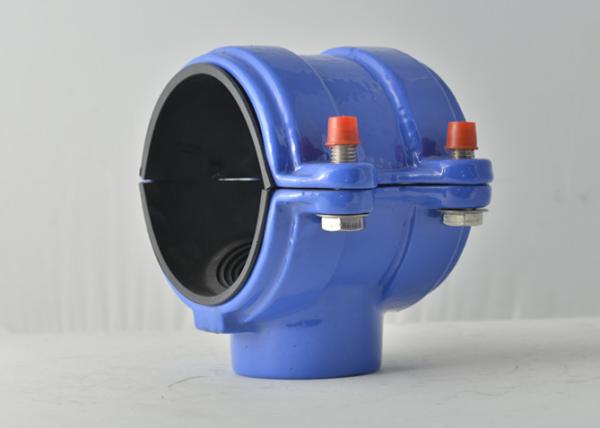

Dn125 To Dn315 Ductile Iron Joints Saddle Clamp Cast Iron Pipe Fittings
Dn125 To Dn315 Ductile Iron Joints Saddle Clamp Cast Iron Pipe Fittings
Dn125 To Dn315 Ductile Iron Joints Saddle Clamp Cast Iron Pipe Fittings
Dn125 To Dn315 Ductile Iron Joints Saddle Clamp Cast Iron Pipe Fittings
Specifications
Place of Origin :
CHINA
MOQ :
NOT LIMITED
Price :
USD, EUR
Payment Terms :
L/C, T/T
Supply Ability :
ONE CONTAINER ONE MONTH
Delivery Time :
30 DYAS-60 DYAS
Packaging Details :
WOODEN CASE
Shape :
round
Material :
Iron
Technics :
Casting
Type :
Coupling
Color :
Blue,customized
Description

Dn125 To Dn315 Ductile Iron Joints Saddle Clamp Cast Iron Pipe Fittings

1)Allows ful screing to guarantee the saddle waterproof.

2)Ductile Iron GGG50 materail with FBE coated.

3)PN10,PN16 working pressure.

4)Equipped with galvanized steel bolts,nuts.

5)EPDM or NBR rubber seals.

DN PN VALUE G WEIGHT(KG)
125 PN10/16 1" 4.3
PN10/16 11/4" 4.5
PN10/16 11/2" 4.5
PN10/16 2" 4.6
140 PN10/16 1" 5.6
PN10/16 11/4" 5.7
PN10/16 11/2" 5.8
PN10/16 2" 6
160 PN10/16 1" 6
PN10/16 11/4" 6.1
PN10/16 11/2" 6.2
PN10/16 2" 6.1
180 PN10/16 1" 8.4
PN10/16 11/4" 8.6
PN10/16 11/2" 8.7
PN10/16 2" 8.8
200 PN10/16 1" 8.7
PN10/16 11/4" 9
PN10/16 11/2" 9.1
PN10/16 2" 9
225 PN10/16 1" 9.7
PN10/16 11/4" 9.8
PN10/16 11/2" 9.9
PN10/16 2" 10
250 PN10/16 1" 10.8
PN10/16 11/4" 11
PN10/16 11/2" 11
PN10/16 2" 11
280 PN10/16 1" 12.2
PN10/16 11/4" 12.2
PN10/16 11/2" 12.4
PN10/16 2" 12.5
315 PN10/16 1" 14.1
PN10/16 11/4" 14.2
PN10/16 11/2" 14.3
PN10/16 2" 14.4

Dn125 To Dn315 Ductile Iron Joints Saddle Clamp Cast Iron Pipe Fittings

Application PE/PVC/Ductile Iron/Steel/AC pipelines
Standard ISO2531, EN545, EN598
Normal Pressure PN10/16
Type 4bolts; The top hole is according to customer's demand.
Saddle body Ductile Iron to BS2789 Grade 420/12, 500/7; GGG50
Coating Fusion Bonded Epoxy, min. thickness 250 microns.
Bolt Carbon steel Grade 8.8; SS304 or SS316 bolts available upon requests.
Rubber Seal E.P.D.M.
Size DN40-DN300

Packaging Details

(1). We will pack your items by carton or plywood cases for exporting standard.
(2). We can also pack your items according to your requirements.
Our Service
1. Good quality and low price.
2. Good after-sale service.
3. Bring the finest goods to customer is our ultimate goal.
4. Products are exported to various countries.
Q: Is sample order acceptable?
A: Yes,of course.
Q: How to place the order?
A: You can send us email or inquiry.
Q: How many days for delivery?
A: Normally within 15~30 days after receipt of payment.
Q: How to make the payment?
A: We accept T/T, L/C.
Q: How will you make the shipment?
A: By sea, air or express service.
