BSEN545 BSEN598 Ductile Iron Joints Welding Flange Connect DI Pipes Casting
BSEN545 BSEN598 Ductile Iron Joints Welding Flange Connect DI Pipes Casting
BSEN545 BSEN598 Ductile Iron Joints Welding Flange Connect DI Pipes Casting
BSEN545 BSEN598 Ductile Iron Joints Welding Flange Connect DI Pipes Casting
Specifications
Brand Name :
NO
Model Number :
DN80-DN2000
Certification :
NO
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
30 tons per month
Delivery Time :
30 to 60 days
Packaging Details :
Package in wooden pallet or wooden cases
Material :
Iron
Technics :
Casting
Type :
Flange
Standard :
ISO2531
Pressure :
PN10/PN16/PN25
Test :
High pressure test
Description

BSEN545 BSEN598 Ductile Iron Joints Welding Flange Connect DI Pipes Casting

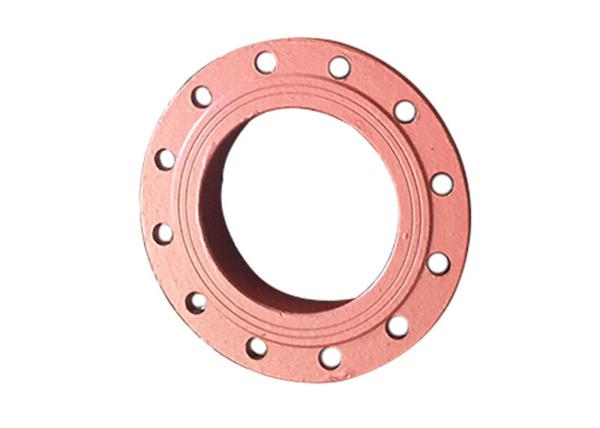

Welding Flange range from DN80 to DN2000. According to pressure rating it is divided in to PN10 welding flange, PN16 welding flange and PN25 welding flange.

Details

Material: Iron

Technics: Casting

Connection: Flange

Shape: Equal

Head Code: Square

surface finish: epoxy,paint,galvanized

color: blue or red

type: grooved fitting and coupling

gasket ring: EPDM

BSEN545 BSEN598 Ductile Iron Joints Welding Flange Connect DI Pipes Casting

BSEN545 BSEN598 Ductile Iron Joints Welding Flange Connect DI Pipes Casting

DN D1 D2 D3 D4 D5 D6
80 220 16 132 98 112 118
100 220 180 156 118 133 139
125 250 210 170 144 158 164
150 285 240 211 170 186 192
200 340 295 266 222 240 246
250 400 350 319 274 294 300
300 455 400 370 326 346 352
350 505 460 429 378 400 408
400 565 515 480 429 451 459
450 615 565 530 480 500 506
500 670 620 582 532 552 558
600 780 725 682 635 655 663
700 895 840 794 738 760 768
800 1015 950 901 842 866 876
900 1115 1050 1001 945 971 981
1000 1230 1160 1112 1048 1076 1086
1100 1340 1270 1218 1152 1180 1190
1200 1455 1380 1328 1255 1285 1295
1400 1675 1590 1530 1462 1496 1512
1500 1785 1700 1640 1565 1601 1617
1600 1915 1820 1750 1668 1706 1722
1800 2115 2020 1950 1875 1917 1933
2000 2325 2230 2150 2082 2126 2136

DN a C d n/pcs r H Weight(kg)
80 19 3 19 8 6 50 3.3
100 19 3 19 8 6 60 4.1
125 19 3 19 8 6 60 4.9
150 19 3 23 8 8 60 6.3
200 20 3 23 8 8 64 8.9
250 22 3 23 12 10 64 12.2
300 25 4 23 12 10 74 16.2
350 25 4 23 16 10 74 18.9
400 25 4 28 16 10 80 22.8
450 25 4 28 20 12 80 24.0
500 27 4 28 20 12 86 29.2
600 30 5 31 20 12 96 40.2
700 33 5 31 24 12 98 53.9
800 35 5 34 24 12 100 71.7
900 38 5 34 28 12 103 84.4
1000 40 5 37 28 12 120 111.1
1100 43 5 37 32 12 123 130.6
1200 45 5 40 32 15 128 159.7
1400 46 5 43 36 15 138 211.8
1500 48 5 43 36 15 140 242.8
1600 49 5 49 40 15 142 288.0
1800 52 5 49 44 15 145 336.7
2000 55 5 49 48 15 148 389.5

PN10 PN16 PN25 welding flange.pdf
