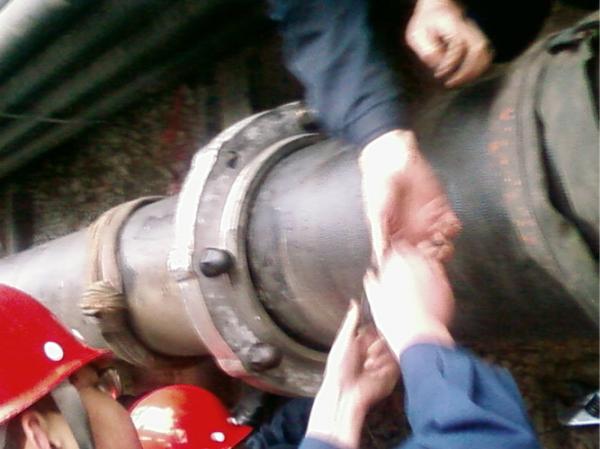

Cement Lined Restrained Joint Ductile Iron Pipe Round Shape 6m K8 K9 K10
Cement Lined Restrained Joint Ductile Iron Pipe Round Shape 6m K8 K9 K10
Cement Lined Restrained Joint Ductile Iron Pipe Round Shape 6m K8 K9 K10
Cement Lined Restrained Joint Ductile Iron Pipe Round Shape 6m K8 K9 K10
Specifications
Brand Name :
NO
Model Number :
DN80-DN1200
Certification :
ISO2531
Place of Origin :
CHINA
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P
Supply Ability :
onee container per half month
Delivery Time :
20-60 days
Packaging Details :
Package in carbon case
Length :
6m/5.7m
Application :
sewage
Test :
hydrostatic test
Joint Type :
self-restrained joint
Shape :
Round
Hardness :
≤230HBS
Description

Cement Lined Restrained Joint Ductile Iron Pipe Round Shape 6m K8 K9 K10

Details
Length: 6m/5.7m
Standard:BSEN545/ISO2531
Application:sewage
Diameter:80-2600mm
Shape:Round
Hardness:≤230HBS
Pull Strength:≥420Mpa
Yield (≥ MPa):300
Material:Ductile Iron
Type:centrifugal
Product name:restrain joint type di pipe length cement lined ductile iron pipe
Certification:ISO9001:2008,ISO2531:1998,NBR7675,EN545:2010
Internal coating:cement mortar lining
External Coating:zinc spray+bitumen coating
Test:hydrostatic test
Techinical Process:
centrifugal casting
Inscription Style:standard inscription,as per customers'requirements
Cement Lined Restrained Joint Ductile Iron Pipe Round Shape 6m K8 K9 K10

Weight list of self -restrained joint pipe

DN (mm) External Diameter (mm) Socket Weight(Kg) Unit Weight (Kg/m) Total weight (kg) length=6000mm
Size(mm) K8 K9 K10 C Class K8 K9 K10 C Class
Class Kg/m Kg
80 98 3.7 12.2 12.2 12.2 C40 9.1 76.8 76.8 76.8 58.30
100 118 4.7 14.9 15.1 15.1 C40 11.12 94.1 95.4 95.4 71.42
150 170 8.5 21.8 22.8 22.8 C40 16.48 139.4 145.4 145.4 107.38
200 222 10.9 28.7 30.6 30.6 C40 22.62 183.6 194.6 194.6 146.62
250 274 15 35.6 40.2 44.3 C40 32.63 228.8 255.8 280.8 210.78
300 326 22.2 45.3 50.8 56.3 C30 43.90 293.3 326.3 360.3 285.60
350 378 26.5 55.9 63.2 69.6 C30 51.88 361.8 405.8 443.8 337.78
400 429 32.5 80 75.5 83.7 C30 60.78 436 485 535 397.18
450 480 41.6 80 89 99 C30 73.30 521.6 575.6 635.6 481.40
500 532 50.6 92.8 104.3 115.6 C30 87.20 607.8 676.8 743.8 573.80
600 635 71.9 122 137.3 152 C30 120.62 803.6 894.6 983.6 795.62
700 738 85.3 155 173.9 193 C25 142.15 1015.2 1129.2 1243.2 938.20
800 842 108.7 192 215.2 239 C25 177.07 1261.1 1400.1 1543.1 1171.12
900 945 140.1 232 260.2 289 C25 197.68 1532.1 1701.1 1874.1 1326.18
1000 1048 174.3 275 309.3 343.2 C25 266.28 1824 2030 2234 1771.98
1200 1265 267.5 |374 420.1 466.1 C25 373.88 2511.8 2787.8 3063.8 2510.78

Packaging Details

1) Pipes are bundled together with the steel belt.
2) Wooden pieces are put between the pipes.
for restrain joint type DI pipe
