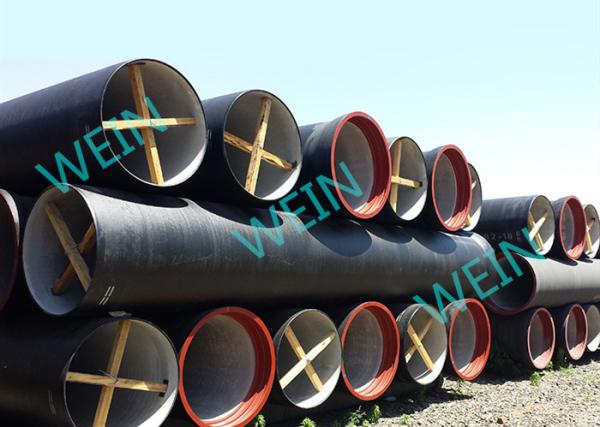

Large Diameter Ductile Iron Pipe Cement Lined Zinc Coating For Water Lines

Cement Lined Ductile Iron Pipe overview:

Ductile cast iron is kind of alloy of iron, carbon and silicon, in which graphite exists in the type of spherical, generally the size of graphite is 6-7 class, and spheriodization grade of the pipe should be controlled 1-3 class(spheroidization rate is not below 80%). Much of the production of ductile iron is in the form of ductile cast iron pipe, used for water and sewer lines, stronger and easier to tap, requires less support and provides greater flow area compared with pipes made from other materials like PVC, concrete, polyethylene or steel. Ductile Iron Pipe is the most widely-used pipeline product in water supply and water drain/sewage projects.

Pipes, fittings and accessories shall be free from defects and surface imperfections which could impair their compliance with the requirements,When necessary, pipes and fittings may be repaired, for example by welding, to remove surface imperfections and localized defects which do not affect the entire wall thickness, provided that the repaired pipes and fittings comply with all the requirements.

Specifications:

1) The standard of pipe: EN545 , EN598,ISO2531.

2) Pipe class: K7/8/9, C40/C30/C25/

3) Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint

4) Effective length: in general, the pipe length is 6m for bulk shipment and 5.7m for container shipment.

5) Internal lining: cement mortar lining as per ISO4179

6) Zinc coating: at least 130g/m2 as per ISO 8179

7) Bitumen painting: at least 70um as per ISO 8179

8) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633.

Packing: bundled with steel belts or in bulk

Shipment: in bulk or container

mechnical behavior:

Internal lining:Portland cement or Blast furnace cement mortar

External Coating:Metallic zinc + Bituminous paint

Usage:

Much of the production of ductile iron is in the form of ductile cast iron pipe, used for water and sewer lines. Ductile cast iron pipe is stronger and easier to tap, requires less support and provides greater flow area compared with pipes made from other materials like PVC, concrete, polyethylene or steel. Ductile Iron Pipe is the most widely-used pipeline product in water supply and water drain/sewage projects.

Our advantages:

There are lots of qualified managers and technicians, and a well-trained team of after-sales service, which provides all services of manufacture, package, transportation and installation. We are looking forward to cooperating with friends from abroad and home creating a brighter future.
