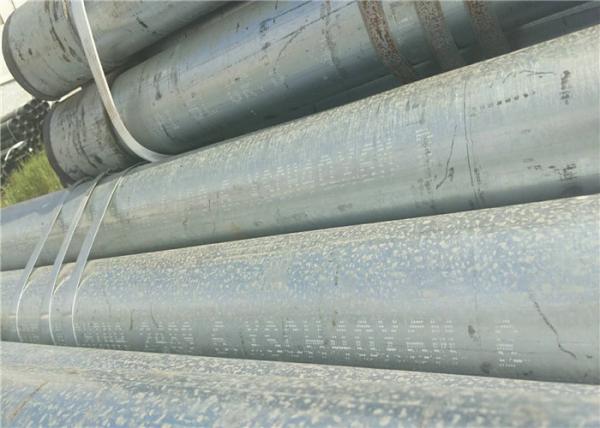

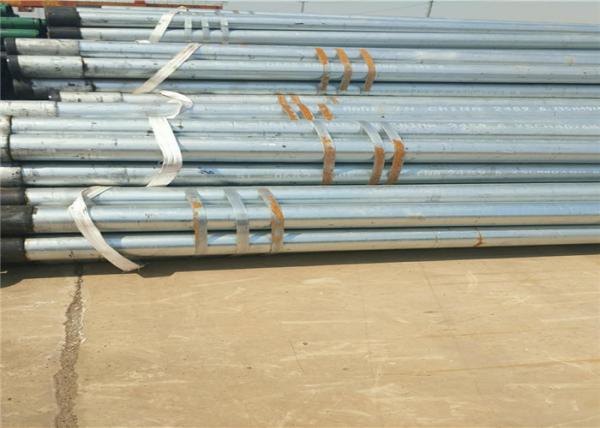

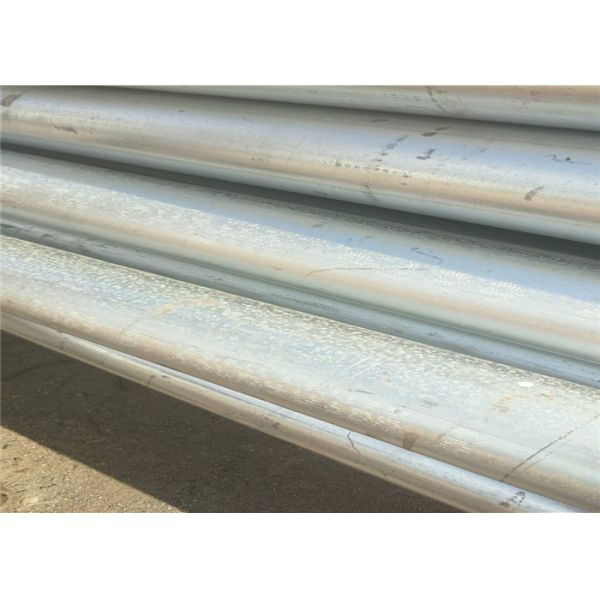

Well Carbon Steel Pipe API 5L Grade B Of 2 Inch Seamless Steel Riser Pipe
Well Carbon Steel Pipe API 5L Grade B Of 2 Inch Seamless Steel Riser Pipe
Well Carbon Steel Pipe API 5L Grade B Of 2 Inch Seamless Steel Riser Pipe
Well Carbon Steel Pipe API 5L Grade B Of 2 Inch Seamless Steel Riser Pipe
Specifications
Brand Name :
NO
Model Number :
2inch -8inch
Certification :
API, ISO
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
30-60 days
Packaging Details :
in bundle
Thread :
LONG ROUND THREADING
Taper :
3/4 inch per foot
Special pipe :
API Pipe
Standard2 :
ASTM A53-2007
Surface treatment :
Galvanized
Usage :
well
Description

Well Carbon Steel Pipe API 5L Grade B Of 2 Inch Seamless Steel Riser Pipe

Description of NEW HOT DIPPED GALVANIZEDCARBON Seamless Carbon Steel Pipe API 5L Grade B of 2 inch seamless steel riser pipe for well

ALL PIPES ARE NEW HOT DIPPED GALVANIZEDCARBON STEEL SEAMLESS PIPES THREADED LONG ROUND THREADING FROM BOTH SIDES WITH MACHINE FIXED COUPLING FROM ONE SIDE NOT LESS THAN 200MM LENGTH, THE PIPES FROM BOTH ENDS TO BE PROTECTED BY THREAD PROTECTORS. SPECIFICATION ACCORDING TO API 5L GRADE B SCH.40.

THREADING ACCORDING TO API 5L (8 THREADS PER INCH) LONG ROUND THREADING TAPERED 3/4"/FOOT BASED ON PIPE DIAMETER.

COUPLING: GALVAIZED SEAMLESS OF THE SAME MATERIAL OF PIPES (8TPI) LONG ROUND THREADING IN LENGTH OF 200MM. MACHINE FIXED FROM ONE SIDE OF THE PIPE. PLEASE, STATE STANDARD AND SPECIFICATION OF GALVANIZATION

Technical data:

Size

WT

(SCH40)

Length End of pipe to Hand tight plane

L1

(mm)

Length Effective

Thread

L2

(mm)

Total length End of pipe to vanish point

L4

(mm)

 Number per inch

Minimum length, full Crest Threads from end of pipe

LC

(mm)

End of pipe to Center of Coupling, Power-Tight Make-Up

J

(mm)

Length

NL

(mm)
2”(60.33) 3.91mm 24.86 36.9 42 10 19 12.7 203
3”(88.9) 5.49mm 42.5 48 58.75 8 35.9 12.7 203
4”(114.3) 6.02mm 48.8 68.96 76.2 8 47.625 12.7 203
5”(141.3) 6.55mm 61.5 81.66 88.9 8 60.325 12.7 203
6”(168.28) 7.11mm 70.45 90 97.6 8 69.025 12.7 220

Quality Control:


1. We have been strictly controlled the quality of our raw materials, and all of our steel metals are from famous steel mills (factories). And physical metallographic analysis and chemical composition test are also used to ensure the quality of raw materials.
2. Immediate inspection will be done for each production procedure, and full examination will be implemented for threaded products.
3. Our outsourcing products will also be strictly examined before utilization.

Well Carbon Steel Pipe API 5L Grade B Of 2 Inch Seamless Steel Riser Pipe
