Pipeline Astm Carbon Steel Pipes & Tubes 2 Inch - 8 Inch Corrosion Resistance
Pipeline Astm Carbon Steel Pipes & Tubes 2 Inch - 8 Inch Corrosion Resistance
Pipeline Astm Carbon Steel Pipes & Tubes 2 Inch - 8 Inch Corrosion Resistance
Pipeline Astm Carbon Steel Pipes & Tubes 2 Inch - 8 Inch Corrosion Resistance
Specifications
Brand Name :
NO
Model Number :
2inches -8inches
Certification :
API, ISO
Place of Origin :
China
MOQ :
1pc
Price :
by Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100MT per month
Delivery Time :
60-80 days
Packaging Details :
in bundles
Length :
6meters
Usage :
water well 300-600M
Standard2 :
API 5L OR ,ASTM A53
Technique :
seamless steel pipe
surface treatment :
Black painting
specification :
2inch to 8inch
Description

Pipeline Astm Carbon Steel Pipes & Tubes 2 Inch - 8 Inch Corrosion Resistance

ALL PIPES ARE NEW BLACK CARBON STEEL SEAMLESS PIPES THREADED LONG ROUND THREADING FROM BOTH SIDES WITH MACHINE FIXED COUPLING FROM ONE SIDE NOT LESS THAN 200MM LENGTH, THE PIPES FROM BOTH ENDS TO BE PROTECTED BY THREAD PROTECTORS SPECIFICATION ACCORDING TO API 5L GRADE B SCH.40 THREADING

ALL BRAND NEW BLACK CARBON STEEL SEAMLESS PIPES THREADED LONG ROUND THREADING FROM BOTH SIDES WITH MACHINE FIXED COUPLING FROM ONE SIDE NOT LESS THAN 200MM LENGTH, THE PIPES FROM BOTH ENDS TO BE PROTECTED BY THREAD PROTECTORS. SPECIFICATION ACCORDING TO API 5L GRADE B SCH.40.

THREADING ACCORDING TO API 5L (8 THREADS PER INCH) LONG ROUND THREADING TAPERED 3/4"/FOOT BASED ON PIPE DIAMETER.

COUPLING: SEAMLESS OF THE SAME MATERIAL OF PIPES (8TPI) LONG ROUND THREADING IN LENGTH OF 200MM. MACHINE FIXED FROM ONE SIDE OF THE PIPE.

Processing sketch:

Pipeline Astm Carbon Steel Pipes & Tubes 2 Inch - 8 Inch Corrosion Resistance

Technical data as per below table:

Size

WT

(SCH40)

Length End of pipe to Hand tight plane

L1

(mm)

Length Effective

Thread

L2

(mm)

Total length End of pipe to vanish point

L4

(mm)

 Number per inch

Minimum length, full Crest Threads from end of pipe

LC

(mm)

End of pipe to Center of Coupling, Power-Tight Make-Up

J

(mm)

Length

NL

(mm)
2”(60.33) 3.91mm 24.86 36.9 42 10 19 12.7 203
3”(88.9) 5.49mm 42.5 48 58.75 8 35.9 12.7 203
4”(114.3) 6.02mm 48.8 68.96 76.2 8 47.625 12.7 203
5”(141.3) 6.55mm 61.5 81.66 88.9 8 60.325 12.7 203
6”(168.28) 7.11mm 70.45 90 97.6 8 69.025 12.7 220

Pipeline Astm Carbon Steel Pipes & Tubes 2 Inch - 8 Inch Corrosion Resistance

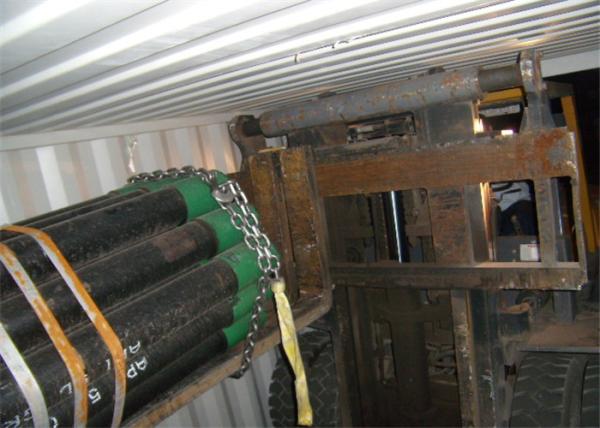

Packing:Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.

FAQ
  • Can I have my own logo on the product?
  • Sure, we can apply your own logo on the products according to your drawings.
  • Can I get samples?
  • Yes, you can. And you only need to bear the delivery costs, if the samples are not too big.
  • How is your company's experience?
  • We have an over 20 years of experience in water industry and been exporting to over 56 countries. We cherish our reputation as a company and our customers love us.
  • Can I request to change the form of packaging and transportation?
  • Sure, we’re glad to fulfill your requirement. Yet please understand that extra costs may occur if the form of packaging and transportation are changed.
