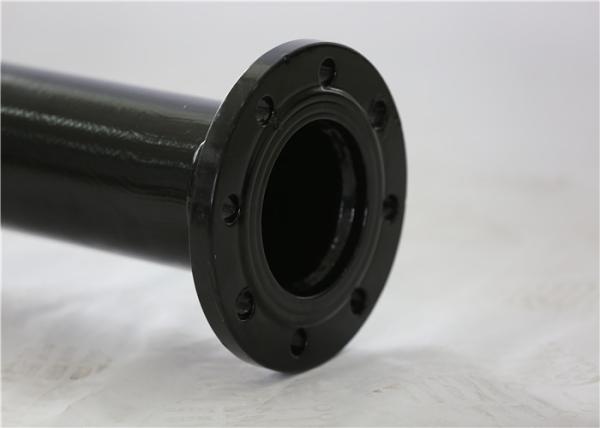

Low Fluid Resistance Steel Plastic Composite Pipe Anti Corrosion Long Service Life
Low Fluid Resistance Steel Plastic Composite Pipe Anti Corrosion Long Service Life
Low Fluid Resistance Steel Plastic Composite Pipe Anti Corrosion Long Service Life
Low Fluid Resistance Steel Plastic Composite Pipe Anti Corrosion Long Service Life
Specifications
Brand Name :
NO
Model Number :
SP(H )-TPE/EP-KM235/ DN 48.3～1118MM SP(W)-TPE/EP-KM 295/ DN 48～711MM
Certification :
NO
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Supply Ability :
500pcs per month
Delivery Time :
30-60 days
Packaging Details :
Seaworthy Packing
Size :
DN 48.3～323.9MM,DN 48～325MM
Test standard Nonvolatile content :
GB/T 6554
Package :
Seaworthy Packing
Hygienic performance :
Conform to GB/T 17219
Colors :
according to customer's environment and requirements.
Pressure Grade :
Not more than 10 MPa
Description

Low Fluid Resistance Steel Plastic Composite Pipe Anti Corrosion Long Service Life

Mine pipe refers to a product specially developed for special underground environmental conditions, which has the advantages of flame retardant, antistatic, corrosion resistance, long service life and strong safety. It is mainly used in five systems: mine drainage pipe (KS), mine grouting pipe (KJ), mine positive pressure air pipe (KFZ), mine negative pressure air pipe (KFF), mine gas drainage pipe (KW).

Size:SP(W)-TEP(PE)-KM 295/ DN 48～1016MM

SP(H)-TEP(PE)-KM 295/ DN 48.3～1118MM

Pressure Grade

suitable for Pipeline’s pressure not more than 10 MPa

Carried Standard

Inspection Code for Safety Performance of Plastic Pipe Used in Coal Mine

The properties of epoxy resin powder for coating meet the requirements of the following table:

Properties of Epoxy Resin Powder

Item Requirement Test standard
Density(g/cm2) 1.3~1.5 GB/T 1033
Particle size distribution /% 150um≤3；250um≤0.2 GB/T 6554
Nonvolatile content /% ≥99.5 GB/T 6554
Horizontal liquidity /mm 22~28 GB/T 6554
Gelation time /s ≤120(200℃) GB/T 6554
Impact strength /(kgcm) ≥50 GB/T 1732
Bending test /(¢2 mm) pass GB/T 6742
Hygienic performance Conform to GB/T 17219

Properties of Polyethylene powder

Item Requirement Test standard
Density (g/cm2) ＞0.91 GB/T 1033
Tensile strength /MPa ＞9.80 GB/T 1040
Elongation at break /% ＞300 GB/T 1040
Vicat softening point /℃ ＞85 GB/T 1633
Nnonvolatile content /% ＞99.5 GB/T 2914
Hygienic performance Conform to GB/T 17219

Connection modes are diversified and easy to construct: Flange connection, fast joint connection, socket connection, bimetal connection and butt welding connection can be adopted for the products. Connection modes are diversified and installation is convenient.

Internal and external coatings can be made of different materials or colors according to customer's environment and requirements.

Good hygienic performance, low fluid resistance: in line with the drinking water standards of the Ministry of Health, no fouling, no breeding of microorganisms, no secondary pollution of fluids. The inner wall is smooth and the conveying efficiency is high.
