Ductile iron fittings All flange tee Class PN10 PN16 PN25
Ductile iron fittings All flange tee Class PN10 PN16 PN25
Ductile iron fittings All flange tee Class PN10 PN16 PN25
Ductile iron fittings All flange tee Class PN10 PN16 PN25
Ductile iron fittings All flange tee Class PN10 PN16 PN25
Ductile iron fittings All flange tee Class PN10 PN16 PN25
Specifications
Brand Name :
NO
Model Number :
DN80 to DN2600
Certification :
NO
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 tons per month
Delivery Time :
20 to 60 days
Packaging Details :
Package in wooden pallet or wooden case
Material :
Ductile Cast Iron
Connection :
Flange
Type :
Tee
Standard :
BS
Product name :
galvanized ductile malleable cast iron pipe fitting
Hardness :
Max.230HB
Test :
Hydraulic Test
Description

Ductile iron fittings All flange tee Class PN10 PN16 PN25
We produce and supply ductile iron Ductile iron all-flange tee with the premium quality raw materials,ensure high durability and strength. The range of ductile iron all flange tee meets various industrial requirements. We offer these ductile iron all flange tee in different sizes and lengths in order to meet the various requirements of our esteemed clients.

Standard Nominal Diameter Tensile Strength Elongation Hardness
DN mm N/mm2 % HB
ISO2531
 80～2600 ≥420 ≥5 ≤230


Application:

· Storm water drainage piping

· Effluent disposal system for domestic and industrial application

· Vertical connection to utilities and reservoirs

· Piling for ground stabilization

Ductile iron fittings All flange tee Class PN10 PN16 PN25

Ductile iron fittings All flange tee Class PN10 PN16 PN25

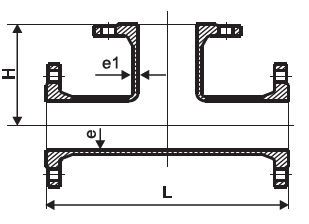

Main Branch Weight (kg)
DN e L dn e1 H Series A Series B
Series A Series B Series A Series B PN10 PN16 PN25 PN10 PN16 PN25
80 8.1 330 330 80 8.1 165 165 15.6 15.6 15.6 15. 6 15.6 15.6
100 8.4 360 330 80 8.1 175 170 18.4 18.4 19.5 17.6 17.5 18.6
360 360 100 8.4 180 180 19.4 19.4 21.0 19.4 19.4 21.0
125 8.7 400 350 80 8.1 190 185 23.0 23.0 24.5 21.3 213.0 22.5
400 370 100 8.4 195 195 24.0 24.0 26.0 22.9 22. 8 24.6
400 400 125 8.7 200 200 25.5 25.5 27.5 25.5 25.5 27.6
150 9.1 440 360 80 8.1 205 200 26.5 28.5 31.O 25.6 25.6 27.5
440 380 100 8.4 210 235 29.5 29.5 32.0 27.2 27.2 29.6
440 410 125 8.7 215 215 31.0 31.0 34.0 29.7 29.7 32.2
440 440 150 9.8 220 220 32.5 32.5 36.0 32.5 32.5 36.0
200 9.8 520 380 80 8.1 235 225 42.0 41.5 46.0 34.9 35.0 38.6
520 400 100 8.4 240 230 43. 0 42.0 47.5 36.7 36. 8 40.9
520 435 125 8.7 240 240 44.5 43.8 49.3 39.8 39.9 44.1
520 460 150 9.1 250 245 46.0 45.5 51.0 42.6 42.7 47.3
520 520 200 9.8 260 260 49.5 49.0 56.0 49.4 49.5 54.9
250 10.5 700 405 80 8.1 265 265 66.0 65.3 72.6 47.9 47.2 54.5
700 425 100 8.4 275 270 68.0 67.0 75.0 50.1 49.3 57.2
700 455 125 8.7 290 275 68.7 67.9 75.9 53.3 52.5 60.5
700 485 150 9.1 300 280 70.6 69.9 78.1 56.8 56.1 64.3
700 540 200 9.8 325 290 76.0 75.0 85.0 63.8 63.1 72.2
700 600 250 10.5 350 300 82.0 81.0 93.0 72.8 71.7 32.7
300 11.2 800 425 80 8.1 290 295 91.5 90. 9 101.3 62.3 61.7 72.1
800 450 100 8.4 300 300 94.0 93.0 105.0 65.2 64.6 75.5
800 480 125 8.7 310 300 94.0 93.4 104.4 68.7 68.1 79.1
800 505 150 9.1 325 310 96.0 95.4 106.7 72.5 71.9 83.2
800 565 200 9.8 350 320 102.0 101.0 114.0 80.7 80.1 92.3
800 620 250 10.5 375 330 106.9 105. 9 120.0 90.1 89.1 103.2
800 680 300 11.2 400 340 116.0 115.0 131.0 100.9 100.0 115.6
350 11.9 850 445 80 8.1 325 325 113.8 119.4 135.2 74.7 79.3 96.1
850 470 100 8.4 325 330 116.0 122.0 139.0 78.0 82.6 99.9
850 480 125 8.7 325 330 116.0 122.0 138.0 80.2 84.8 102.2
850 530 150 9.1 325 340 117.2 122.8 139.5 86.8 91.4 109.1
850 585 200 9.8 325 350 121.0 128.0 146.0 95.5 100.2 118.8
850 645 250 10.5 325 360 123.9 129.2 148.6 106.3 110.5 131.0
850 680 300 11.2 425 365 136.2 141.5 162.5 115.1 119.4 141.4
850 760 350 11.9 425 380 142.0 151.0 176.0 128.3 135.2 160.4
400 12.6 900 470 80 8.1 350 355 140.9 153.9 172.3 91.0 104.0 122.4
900 490 100 8.4 350 360 143.0 154.0 177.0 94.3 107.2 126.2
900 500 125 8.7 350 345 142.5 155.8 174.8 96.2 109.2 128.2
900 550 150 9.1 350 370 144.2 157.2 176.5 104.2 117.2 136.5
900 610 200 9.8 350 380 148.0 159.0 184.0 114.6 127.6 147.8
900 665 250 10.5 350 390 150.6 163.3 185.3 125.8 138.4 160.5
900 725 300 11.2 450 400 162.7 175.4 199.0 138.4 151.1 174.7
900 760 350 11.8 450 410 167.4 183.2 209.5 147.2 162.5 189.3
900 840 400 12.6 450 420 174.0 191.0 225.0 163.3 182.8 210.4
450 13.3 950 470 80 8.1 375 370 169.7 188.3 209.1 103.6 122.2 143.0
950 515 100 8.4 375 375 170.5 189.0 210.4 110.7 129.2 150.6
950 530 125 8.7 375 375 171.6 190.2 211.6 113.8 132.4 153.8
950 570 150 9.1 375 400 172.9 191.5 213.2 121.5 140.1 161.8
950 630 200 9.8 375 410 175.5 194.1 216.7 133.1 151.7 174.3
950 690 250 10.5 375 420 179.1 197.3 221.8 146.1 164.3 188.8
950 745 300 11.2 475 430 190.5 209.1 235.1 159.2 177.5 203.5
950 790 350 11.9 475 440 195.2 216.6 245.3 169.9 190.8 220.0
950 680 400 12.6 475 450 201.1 226.2 256.2 185.9 211.0 241.0
950 920 450 13.3 475 460 207.0 234.9 266.1 200.8 228.7 259.9
500 14 1000 515 80 8.1 400 400 207.4 236.2 257.0 129.5 158.3 179.1
1000 535 100 8.4 400 400 210.0 241.0 265.0 133.5 162.3 183.6
1000 560 125 8.7 400 405 209.3 238.1 259.5 138.7 167.5 188.9
1000 600 150 9.1 400 410 210.6 239.4 261.1 146.6 175.4 197.2
1000 650 200 9.8 400 415 215.0 245.0 271.0 157.5 186.3 208.9
1000 680 250 10.5 400 430 216.5 244.9 269.4 166.9 195.3 219.8
1000 740 300 11.2 500 450 228.1 256.6 282.6 182.4 210.9 236.9
1000 810 350 11.9 500 465 232.2 263.8 292.5 198.3 229.4 258.6
1000 885 400 12.6 500 480 242.0 276.0 311.0 216.9 252.2 282.2
1000 940 450 13.3 500 490 242.9 281.0 312.2 231.9 270.0 301.2
1000 1000 500 14.0 500 500 252.0 297.0 332.0 252.0 297.0 332.0
600 15.4 1100 525 80 8.1 450 450 296.0 346.0 370.8 174.5 224.5 249.3
1100 550 100 8.4 450 450 296.7 346.7 372.0 180.5 230.5 255.8
1100 582 125 8.7 450 450 297.8 347.8 373.2 187.9 237.9 263.3
1100 650 150 9.1 450 455 299.0 349.0 374.7 204.2 254.2 279.9
1100 700 200 9.8 450 460 305.0 358.0 388.0 217.1 267.2 293.8
1100 740 250 10.5 450 480 304.4 354.0 382.5 230.1 279.8 308.2
1100 810 300 11.2 550 500 315.6 365.3 395.3 250.4 300.1 330.1
1100 885 350 11.9 550 520 319.3 372.1 404.8 270.9 323.2 356.4
1100 930 400 12.6 550 530 329.0 387.0 427.0 285.9 342.4 376.4
1100 970 450 13.3 550 540 328.6 387.9 423.1 299.7 359.0 394.2
1100 1000 500 14.0 550 545 336.1 400.5 235.7 314.2 378.6 413.8
1100 1100 600 15.4 550 550 355.0 434.0 477.0 355.0 434.0 477.0
700 16.8 520 535 80 8.1 505 500 223.3 251.5 316.5 227.2 255.4 320.4
540 550 100 8.4 510 500 229.5 257.6 323.2 232.0 260.1 325.7
570 580 125 8.7 510 505 238.5 266.7 332.3 241.1 269.3 334.9
595 600 150 9.1 520 510 246.8 275.0 340.9 247.8 276.0 341.9
650 650 200 9.5 525 525 258.0 298.0 359.3 258.0 298.0 359.3
705 700 250 10.5 530 525 282.5 310.3 379.0 280.8 308.6 377.3
760 750 300 11.2 540 530 301.6 329.5 399.7 295.1 323.0 393.2
815 800 350 11.9 550 540 319.4 350.4 423.3 314.4 344.9 418.3
870 870 400 12.6 555 555 343.0 379.0 447.1 343.0 379.0 447.1
925 990 450 13.3 560 555 356.5 394.0 469.4 363.4 400.9 476.3
980 1000 500 14.0 570 560 378.6 421.2 496.6 382.4 425.0 500.4
1090 1180 600 15.4 585 575 425.4 478.6 556.0 447.4 500.6 578.0
1200 1200 700 16.8 600 600 477.0 523.0 618.7 477.0 523.0 618.7


All flange tee.pdf
