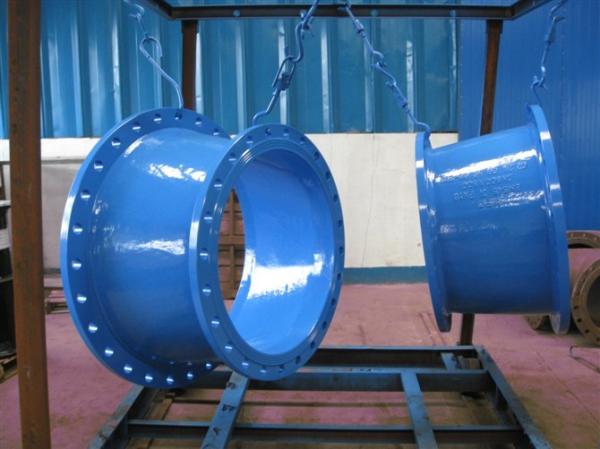

DN600 to DN1200 Ductile iron fittings Zinc spaying Double flange reducer
DN600 to DN1200 Ductile iron fittings Zinc spaying Double flange reducer
DN600 to DN1200 Ductile iron fittings Zinc spaying Double flange reducer
DN600 to DN1200 Ductile iron fittings Zinc spaying Double flange reducer
DN600 to DN1200 Ductile iron fittings Zinc spaying Double flange reducer
DN600 to DN1200 Ductile iron fittings Zinc spaying Double flange reducer
Specifications
Model Number :
DN80- DN2600
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
20-60 days
Packaging Details :
Packaged in fumigated wooden cases or wooden pallets.
Brand Name :
NO
Certification :
NO
Material :
Ductile Cast Iron
Shape :
Reducing
Size :
Grooved Pipe Fittings 90 degree Elbow
Color :
As cust request
Pressure :
PN10/PN16/PN25
Test :
High pressure test
Description

DN100 to DN2600 Ductile iron fittings Zinc spaying Double flange reducer

Overview

Our range of ductile iron fittings offer durability and strength for long-term performance across a range of water, sewage, waste water and slurry applications. Our ductile iron fittings are manufactured to ISO2531, EN 545 for premium quality and superior long-tern reliability and performance.

DN600 to DN1200 Ductile iron fittings Zinc spaying Double flange reducer

We offer wide range of standard fitting flanges in accordance with ISO2531. Our products range from DN100 to DN2600,nominal pressure rating of PN10,PN16&PN25.

Properties & Dimensions

size range DN100 to DN2600

Flange fittings Class PN10, Class PN16 & Class PN25

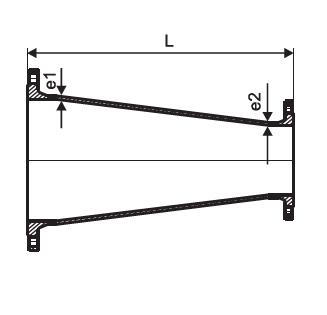

The size and weight of Double flange reducer

DN600 to DN1200 Ductile iron fittings Zinc spaying Double flange reducer

DN e1 dn e2 L Weight(kg)
PN10 PN16 PN25
600 13.2 80 7.0 1050 122.4 147.4 159.8
100 7.2 1050 125.6 150.6 163.5
150 7.8 1000 130.1 155.1 168.5
250 9.0 900 139.5 164.1 180.2
300 9.6 800 138.3 163.0 180.6
350 10.2 750 140.4 168.2 188.5
400 10.8 700 142.9 174.4 196.0
450 11.4 650 143.8 178.1 200.9
500 12.0 600 149.0 190.0 216 0
700 14.4 200 8.4 1100 181.1 195.3 229,6
25Q 9.0 1050 186.8 200.6 236.7
300 9.6 1000 192,4 206.2 243.9
350 10.2 900 188.3 205.2 245.6
400 10.8 800 183.5 204.1 229.6
450 11.4 750 184.7 208.1 251.0
500 12.0 700 187.7 216.2 259.1
600 13.2 600 195.0 236.0 238.0
800 15.6 400 10.8 1030 260.8 285.0 340.2
450 11.4 900 247.8 274.8 331.2
500 120.0 800 241.2 273.3 329.7
600 13.2 700 245.7 288.4 346.8
700 14.4 600 250.0 285.0 374.0
900 16.8 400 10.8 1100 311.5 339.6 404.8
450 11.4 1050 314.1 345.0 411.4
500 12.0 1000 318.8 354.6 421.2
600 13.2 800 300.2 346.8 415.2
700 14.4 700 301.9 337.6 426.1
800 15.6 600 308.0 352.0 468.0
1000 18 600 13.2 1000 398.6 461.3 546.3
700 14.4 800 371.6 423.4 528.5
800 15.6 700 376.2 431.6 550.2
900 16.8 600 373.0 438.0 585.0
1100 19.2 600 13.2 1100 479.1 542.5 638.9
700 14.4 1000 483.9 536.4 652.9
800 15.6 800 454.4 510.5 640.5
900 16.8 700 448.1 508.1 648.1
1000 18.0 600 444.4 520. 5 677.1
1200 20.4 600 13.2 1150 555.2 638.5 741.6
700 14.4 1100 578.0 650.4 773.6
800 15.6 1000 587.2 663.2 799.9
900 16.8 800 539.9 619.8 766.5
1000 16.0 700 536.7 632.7 796.0
1100 19.2 600 527.6 624.3 799.0

Double flange reducer.pdf
