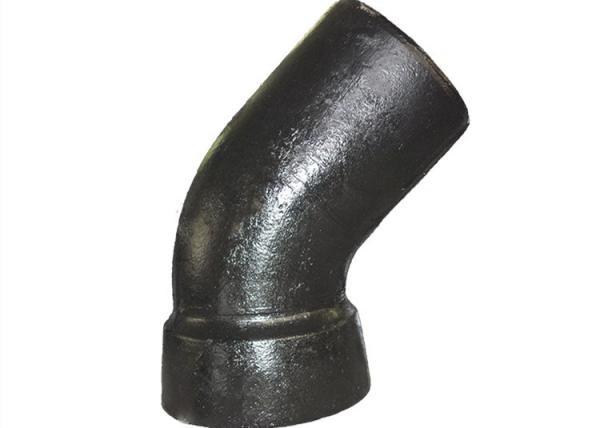

T / K Type Ductile Iron Fittings Socket Spigot 45 Degree Pipe Elbow Casting
T / K Type Ductile Iron Fittings Socket Spigot 45 Degree Pipe Elbow Casting
T / K Type Ductile Iron Fittings Socket Spigot 45 Degree Pipe Elbow Casting
T / K Type Ductile Iron Fittings Socket Spigot 45 Degree Pipe Elbow Casting
T / K Type Ductile Iron Fittings Socket Spigot 45 Degree Pipe Elbow Casting
T / K Type Ductile Iron Fittings Socket Spigot 45 Degree Pipe Elbow Casting
Specifications
Brand Name :
NO
Model Number :
DN40-DN2600
Certification :
ISO2531
Place of Origin :
China
MOQ :
10 PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
ONE CONTAINER PER HALF MONTH
Delivery Time :
20 TO 60 DAYS
Packaging Details :
Package in wooden pallet
Material :
Iron
Technics :
Casting
Type :
Elbow
Application :
water supply
Color :
blue
Size :
DN40-DN2600
Description

T / K Type Ductile Iron Fittings Socket Spigot 45 Degree Pipe Elbow Casting

Socket spigot 45 degree bend

Ductile Iron Flanged Pipe Fittings acc. to ISO2531&EN545
1. Material: Ductile Iron
2. Size Range: DN40-DN2600mm
3. Connection end: flange

4. Accessories: gasket, bolts and nuts

5. Coating: Zinc Painting + Bituminous Painting

Lining: Cement Mortar Lining
6. Packing: standard Wooden pallets or wooden cases

T / K Type Ductile Iron Fittings Socket Spigot 45 Degree Pipe Elbow Casting

T / K Type Ductile Iron Fittings Socket Spigot 45 Degree Pipe Elbow Casting

DN e t L Weight(kg)
T type K type
40 7.0 40 220 3.9 /
50 7.0 40 220 4. 6 /
60 7.0 45 225 5.4 /
65 7.0 50 230 5.8 /
80 7.0 50 235 8.1 8.4
100 7.2 60 245 10.6 13.0
125 7.5 75 255 12.3 14.2
150 7.8 85 265 18.2 20.7
200 8.4 110 290 28.2 30.4
250 9.0 130 310 40.2 36.7
300 9.6 150 330 54.6 42.9
350 10. 2 175 355 71.3 69.3
400 10.8 195 375 89.9 95.1
450 11.4 220 420 125.0 109.5
500 12.0 240 440 139.0 142.0
600 13.2 285 485 200.0 198.0
700 14.4 330 580 310.0 302.0
800 15.6 370 620 418.0 357.3
900 16.8 415 665 554.0 778.0
1000 18.0 460 760 710.0 710.0
1100 19.2 505 805 805.0 769.0
1200 20. 4 550 850 985.0 929.0
1400 22.8 515 815 1329 1183.0
1500 24.0 540 840 1568 1374.0
1600 25.2 565 885 1845 1631.0
1800 27.6 610 890 2282 2058.0
2000 30.0 660 920 / 2656.0
2200 32.4 710 990 / 3378.0
2400 34.8 755 1025 / 4243.0
2600 37.2 805 1120 / 5272.0
