Hexagon Carbon Steel Bolts And Nuts Flange Connection Ductile Iron Fittings
Hexagon Carbon Steel Bolts And Nuts Flange Connection Ductile Iron Fittings
Hexagon Carbon Steel Bolts And Nuts Flange Connection Ductile Iron Fittings
Hexagon Carbon Steel Bolts And Nuts Flange Connection Ductile Iron Fittings
Hexagon Carbon Steel Bolts And Nuts Flange Connection Ductile Iron Fittings
Hexagon Carbon Steel Bolts And Nuts Flange Connection Ductile Iron Fittings
Specifications
Brand Name :
NO
Model Number :
DN80-DN2600
Certification :
NO
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 tons per month
Delivery Time :
20-60 days
Packaging Details :
Package in wooden cases
Material :
Carbon Steel
Connection :
Flange
Packing :
carton box
Usage :
Joining Pipe Lines
Head code :
Hexagon
Type :
Union
Description

Hexagon Carbon Steel Bolts And Nuts Flange Connection Ductile Iron Fittings

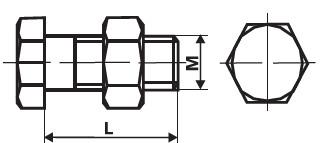

Bolts and nuts is made of carbon steel.mostly used for connect flange fittings or ductile iron pipes.

Description

Material
Steel
type
bolt nut
Standard
DIN933
Grade
4.8
Diameter
m4 - m36
Thread type
Full Thread
length
10mm - 150mm
Finish
plain

Bolts and nuts
Hexagon Carbon Steel Bolts And Nuts Flange Connection Ductile Iron Fittings
Hexagon Carbon Steel Bolts And Nuts Flange Connection Ductile Iron Fittings

DN PN10 PN16 PN25 PN40
NO,pcs MXL NO,pcs MXL NO,pcs MXL NO,pcs MXL
80 8 W16X65 8 Ml 6X65 8 M16X65 8 M16X65
100 8 M16X65 8 M16X65 8 M20X70 8 M20X70
125 8 M16X65 8 M16X65 8 M24X80 8 M24X80
150 8 M20X70 8 M20X70 8 M24X80 8 M24X90
200 8 M20X70 12 M20X70 12 M24X80 12 M27X100
250 12 M20X80 12 M24X85 12 M27X90 12 M30X110
300 12 M20X80 12 M24X85 16 M27X90 16 M30X120
350 16 M20X80 16 M24X85 16 M30X110 16 M33X130
400 16 M24X85 16 M27X100 16 M30X120 16 M36X140
450 20 M24X85 20 M27X100 20 M33X120 20 M36X150
500 20 M24X85 20 M30X110 20 M33X120 20 M39X150
600 20 M27X100 20 M33X120 20 M36X140 20 M45X170
700 24 M27X100 24 M33X120 24 M39X140 / /
800 24 M30X110 24 M36X140 24 M45X160 / /
900 28 M30X120 28 M36X140 28 M45X170 / /
1000 28 M33X130 20 M39X150 28 M52X 180 / /
1100 32 M33X130 32 M39X160 32 M52X180 / /
1200 32 M36X140 32 M45X170 32 M52X200 / /
1400 36 M39X150 36 M45X180 36 M56X220 / /
1500 36 M39X150 36 M52X190 36 M56X230 / /
1600 40 M45X160 40 M52X190 40 M56X230 / /
1800 44 M45X160 44 M52X200 44 M64X260 / /
2000 48 M45X170 46 M56 X 230 48 M64X270 / /
2200 52 M52X190 52 M56X240 / / / /
2400 56 M52X190 56 M56X240 / / / /
2600 60 M52X200 60 M56X250 / / / /

Our Service
1. Good quality and low price.
2. Good after-sale service.
3. Bring the finest goods to customer is our ultimate goal.
4. Products are exported to various countries.
Q: Is sample order acceptable?
A: Yes,of course.
Q: How to place the order?
A: You can send us email or inquiry.
Q: How many days for delivery?
A: Normally within 15~30 days after receipt of payment.
Q: How to make the payment?
A: We accept T/T, L/C.
Q: How will you make the shipment?
A: By sea, air or express service.
