Portable Water Ductile Iron Joints Class PN25 Blind Flange Coated Bitumen
Portable Water Ductile Iron Joints Class PN25 Blind Flange Coated Bitumen
Portable Water Ductile Iron Joints Class PN25 Blind Flange Coated Bitumen
Portable Water Ductile Iron Joints Class PN25 Blind Flange Coated Bitumen
Specifications
Brand Name :
NO
Model Number :
DN40-DN2000
Certification :
NO
Place of Origin :
CHINA
MOQ :
10 pcs
Payment Terms :
L/C, D/A, T/T, D/P
Supply Ability :
one container per half month
Delivery Time :
20-60 days
Packaging Details :
Package in carbon or wooden cases
Material :
cast iron
pressure :
PN25
SIZE :
DN40-DN2000
Gasket :
NBR
Name :
Ductile Iron Joints
USE :
portable water
Description

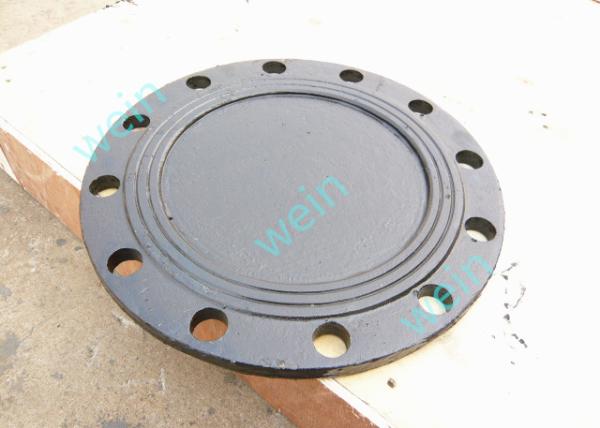

Portable Water Ductile Iron Joints Class PN25 Blind Flange Coated Bitumen

Blank (bind) flange ,normal bore from DN40 toDN2000

Suitable for portable water

Externally coated with blue or red epoxy as per as BS EN 545

Portable Water Ductile Iron Joints Class PN25 Blind Flange Coated Bitumen

Portable Water Ductile Iron Joints Class PN25 Blind Flange Coated Bitumen

DN D a b C H R Weight (kg)
40 150 19.0 16.0 3 / / 2.0
50 165 19.0 16.0 3 / / 2.4
60 175 19.0 16.0 3 / / 2.7
65 185 19.0 16.0 3 / / 3.1
80 200 19.0 16.0 3 / / 3.5
100 235 19.0 16.0 3 / / 4.8
125 270 19.0 16.0 3 / / 6.2
150 300 20.0 17.0 3 / / 8.3
200 360 22.0 19.0 3 / / 13.2
250 425 24.5 21.5 3 / / 20.9
300 485 27.5 23.5 4 / / 29.9
350 555 30.0 26.0 4 75 325 45.1
400 620 32.0 28.0 4 84 375 60.5
450 670 34.5 30.5 4 93 425 76.3
500 730 36.5 32.5 4 102 475 97.4
600 845 42.0 37.0 5 120 575 150.4
700 960 46.5 41.5 5 137 675 215.9
800 1085 51.0 46.0 5 156 775 300.8
900 1185 55.5 50.5 5 178 875 398.5
1000 1320 60.0 55.0 5 190 975 535.8
1200 1530 69.0 64.0 5 224 1075 702.0
1400 1755 74.0 69.0 5 258 1175 1085
1600 1975 81.0 76.0 5 292 1375 1674
1800 2195 88.0 83.0 5 226 1475 2245
2000 2425 95.0 90.0 5 386 1575 2985
