ISO2531 PN10 Ductile Iron Joints Blind Flange Di Flanged Fittings Rustproof
ISO2531 PN10 Ductile Iron Joints Blind Flange Di Flanged Fittings Rustproof
ISO2531 PN10 Ductile Iron Joints Blind Flange Di Flanged Fittings Rustproof
ISO2531 PN10 Ductile Iron Joints Blind Flange Di Flanged Fittings Rustproof
Specifications
Brand Name :
NO
Model Number :
DN40-DN2200
Certification :
NO
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
30 tons per month
Delivery Time :
30 to 60 days
Packaging Details :
Package in wooden pallet or wooden cases
Head code :
round
Type :
Flange
Standard :
ISO2531
Color :
As cust request
Pressure :
PN10/PN16/PN25
Packing :
Carton/wooden box
Description

ISO2531 PN10 Ductile Iron Joints Blind Flange Di Flanged Fittings Rustproof

Ductile iron fittings Blind Flange according to ISO2531
Ductile Iron bind flange for potable water (blue), also called blank.
Blind Flange size range from DN40 to DN2200
Pressure rating :PN10/PN16/PN25
Coating with cement mortar lining and Zinc spaying & bituminous painting.
ISO2531 PN10 Ductile Iron Joints Blind Flange Di Flanged Fittings Rustproof
ISO2531 PN10 Ductile Iron Joints Blind Flange Di Flanged Fittings Rustproof

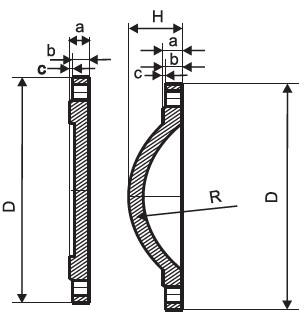

DN D a b C H R Weight (kg)
40 150 19.0 16.0 3 / / 2.0
50 165 19.0 16.0 3 / / 2.4
60 175 19.0 16.0 3 / / 2.7
65 1B5 19.0 16.0 3 / / 3. 1
80 200 19.0 I6.0 3 / / 3.5
100 250 19.0 16.0 3 / / 4.3
125 250 19.0 16.0 3 / / 5.6
150 285 19.0 16.0 3 / / 7.2
200 340 20.0 17.0 3 / / 11.0
250 400 22.0 19.0 3 / / 16.9
300 455 24.5 20.5 4 / / 24.0
350 506 24.5 20.5 4 69 325 30.7
400 565 24.5 20.5 4 76 375 38.1
450 615 25.5 21.5 4 84 423 47. 1
500 670 26.5 22.5 4 92 475 58.4
600 780 30.0 25.0 5 108 575 88.9
700 895 32.5 27.5 5 124 675 128.7
800 1015 35.0 30.0 5 140 775 180.1
900 1115 37.5 32.5 5 160 875 235. I
1000 1230 40.0 35.0 5 170 975 307.3
1100 1340 42.5 37.5 5 185 1075 391. 1
1200 1455 45.0 40.0 5 200 1175 575.0
1400 1675 46.0 41.0 5 230 1375 736.0
1500 1766 47.5 42.5 5 245 1475 990.0
1600 1915 49.0 44.0 5 260 1575 1239
1800 2115 52.0 47.0 5 290 1775 1717
2000 2325 55.0 50.0 5 320 1975 2253
2200 2550 59.0 53.0 5 350 2175 2372
