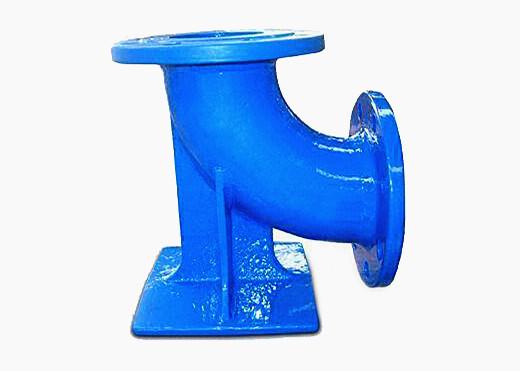

Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend
Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend
Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend
Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend
Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend
Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend
Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend
Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend
Specifications
Brand Name :
NO
Model Number :
DN40-DN1000
Certification :
ISO2531
Place of Origin :
CHINA
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
one container per half month
Delivery Time :
20 to 60 days
Packaging Details :
Package in wooden cases
Material :
Iron
Technics :
Casting
Connection :
Flange
Type :
Elbow
Application :
water supply
Color :
blue
Description

Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend

Pressure rating PN10,PN16 & PN25

Size range DN80-DN2600
Material Ductile iron
Type bend
Rate pressure PN10, PN16 & PN25
Internal coating Cement mortar lining
External coating Zinc/Zinc alloy, bitumen,epoxy
Standards ISO2531, BS EN545, BS EN598, GB/T13295
Accessories NBR, SBR, EPDM rings according to ISO4633

Double flange 90 degree duckfoot bend

Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend

Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend

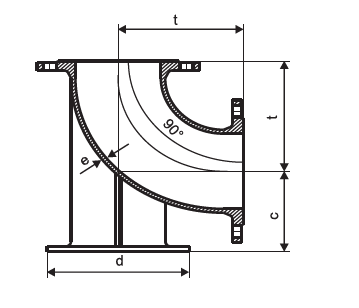

DN e t c d Weight (kg)
PN10 PN16 PN25
40 7.0 140 95 150 7.7 7.7 7.7
50 7.0 150 95 150 9.1 9. 1 9.1
60 7.0 160 100 160 10.5 10.5 10.5
65 7.0 165 100 165 11.6 11.6 11.6
80 7.0 165 110 180 14.1 14.1 14.1
100 7.2 180 125 200 17.8 17.8 18.8
125 7.5 200 140 225 23.5 23.5 24. 5
150 7.8 220 160 250 30.0 30.0 32. 0
200 8.4 260 190 300 46.5 46.0 50.5
250 9.0 350 225 350 75.0 75.0 82.0
300 9.6 400 255 400 106.0 105.0 116.0
350 10.2 450 290 450 139.0 145.0 162.0
400 10.8 500 320 500 178.0 189.0 212.0
450 11.4 550 355 550 229.0 249.0 275.0
500 12.0 600 385 600 283.0 313.0 337.0
600 13.2 700 450 700 428.0 481.0 509.0
700 14.4 800 515 800 700.0 741.0 811.0
800 15.6 900 580 900 846.0 884.0 982.0
900 16.8 1000 645 1000 1118 1165 1286
1000 18.0 1100 710 1100 1698 1781 1937
