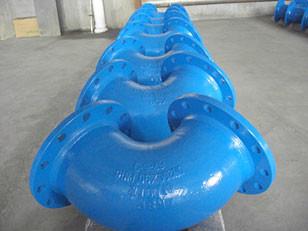

Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10
Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10
Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10
Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10
Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10
Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10
Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10
Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10
Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10
Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10
Specifications
Brand Name :
NO
Place of Origin :
China
Model Number :
DN80-DN2600
Certification :
NO
MOQ :
100 PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
one container per half month
Delivery Time :
30-60days
Packaging Details :
Package in wooden pallets or containers.
Material :
Ductile Cast Iron
Type :
Elbow
Standard :
ISO2531
Size :
iron pipe fittings,Customized
Application :
water supply
Color :
As cust request
Description

Internal coating cement Ductile iron fitting Double flange 90 bend Class PN10

Description

With our wide and varied range of bend fittings in accordance with ISO2531, EN545, we offer the most suitable solution for almost all applications, completed with our special fittings.

Our program includes the following bend fittings from diameter DN80 up to DN2600.

Features

Size range DN80-DN2600
Material Ductile iron
Type bend
Rate pressure PN10, PN16 & PN25
Internal coating Cement mortar lining
External coating Zinc/Zinc alloy, bitumen,epoxy
Standards ISO2531, BS EN545, BS EN598, GB/T13295
Accessories NBR, SBR, EPDM rings according to ISO4633

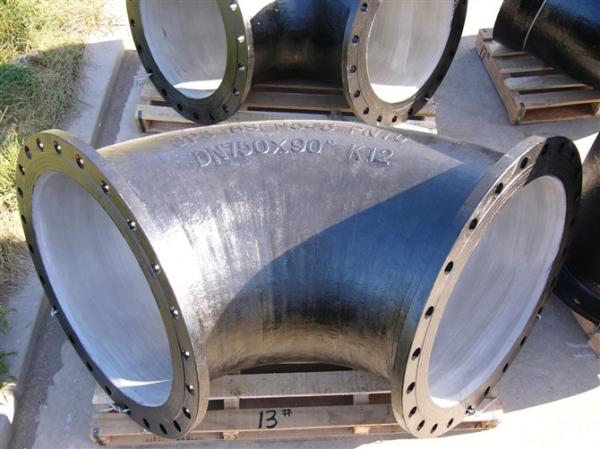

Double Flange 90 degree bend

Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10

Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10

DN e L Weight(kg)
PN10 PN16 PN25
40 7.0 140 5.6 5.6 5.6
50 7.0 150 6.8 6.8 6.8
60 7.0 160 7.8 7.8 7.8
65 7.0 165 8.7 8.7 8.7
80 7.0 165 9.6 9.6 9.6
100 7.2 180 11.9 11.9 12.9
125 7.5 200 15.6 15.6 16.9
150 7.8 220 20.0 20.0 22.0
200 8.4 260 31.0 30.5 34.5
250 9.0 350 50.0 49.5 57.0
300 9.6 400 70.0 70.0 81.0
350 10.2 450 90.0 96.0 113.0
400 10.8 500 116.0 127.0 149.0
450 11.4 550 143.0 161.0 181.8
500 12.0 600 181.0 211.0 235.0
600 13.2 700 272.0 325.0 353.0
700 14.4 800 399.0 429.0 473.6
800 15.6 900 552.0 590.0 653.0
900 16.8 1000 722.0 770.0 840.8
1000 18.0 1100 937.0 1020 1163
1200 20.4 1300 1490 1619 1728
1400 22.8 1470 2199 2335 2640
1500 24 1400 2386 2571 /
1600 25.2 1450 2796 2983 /

Application

Raw and clear water transmission (pumping and gravity main)

Water supply for industrial/process plant application

Protective piping under major carriage-way

Sewerage and waste water force main

We have therefor developed our ability to quickly deliver all items to our prestigious clients.

Internal cement coating Ductile iron fitting Double flange 90 bend Class PN10
