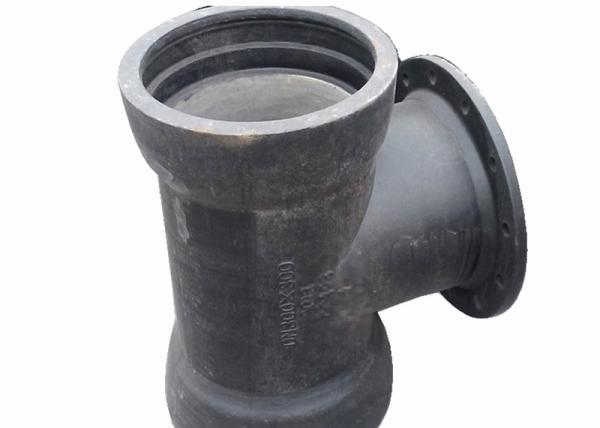

Socket Tee Ductile Iron Fittings With Flange Branch Under Class PN10 PN16 PN25
Socket Tee Ductile Iron Fittings With Flange Branch Under Class PN10 PN16 PN25
Socket Tee Ductile Iron Fittings With Flange Branch Under Class PN10 PN16 PN25
Socket Tee Ductile Iron Fittings With Flange Branch Under Class PN10 PN16 PN25
Socket Tee Ductile Iron Fittings With Flange Branch Under Class PN10 PN16 PN25
Socket Tee Ductile Iron Fittings With Flange Branch Under Class PN10 PN16 PN25
Specifications
Brand Name :
NO
Model Number :
DN80 to DN2600
Certification :
NO
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 tons per month
Delivery Time :
20-60 days
Packaging Details :
Package in wooden pallet or wooden cases
Technics :
Casting
Connection :
grooved
Type :
Tee
Application :
Steam
Test :
Hydraulic Test
Usage :
waterpipe
Description

Socket Tee Ductile Iron Fittings With Flange Branch Under Class PN10 PN16 PN25

We offers rich dimesions of standard fittings and flange pipes in accordance with ISO 2531 Standards. Our product ranges starts from DN80mm-DN2600mm, Nominal pressures rating of PN10, PN16, PN25. In addition to our standard products range we are also able to produce all non-standard fittings with Uniform & Non Uniform dimensions.

SPECIFICATION

Nominal size DN80-DN2600

Size DN80-DN2600

Material CAST IRON

Head cope Round

Rings EPDM/ NBR

Shape EQUAL

Hydraulic pressure test meter for DI fittings

DN(mm) Diameter Hydraulic test pressure
80-300 2.5
350-600 1.6
700-1000 1.0
1100-2600 1.0

Socket Tee Ductile Iron Fittings With Flange Branch Under Class PN10 PN16 PN25

Socket Tee Ductile Iron Fittings With Flange Branch Under Class PN10 PN16 PN25

Socket Tee Ductile Iron Fittings With Flange Branch Under Class PN10 PN16 PN25

Main Branch Weight (kg)
DN e L dn e1 h PN10 PN16 PN25
T type K type T type K type T type K type
80 8. 1 170 80 8. 1 165 13.5 17. 7 13. 5 17.7 13. 5 17. 7
100 8.4 170 80 8. 1 175 15.8 20. 0 15. 8 20.0 15.8 20. 0
190 100 8. 4 180 17.2 22. 0 17.2 22.0 17.7 22.0
125 8. 7 170 80 8. 1 190 19.4 23.0 19. 4 23.0 19. 4 23. 0
195 100 8. 4 195 21.0 24. 6 21.0 24.5 21.5 25. 1
225 125 8. 7 200 23.0 26. 8 23. 0 26.8 24. 0 27. 4
150 9. 1 170 80 8. 1 205 23.0 28. 0 23. 0 28.0 23. 0 28. 0
195 100 8.4 210 24.5 29. 5 24. 5 29.5 25. 0 29. 5
230 125 8. 7 215 27,1 32. 1 27. 5 32. 1 27. 7 32. 7
255 150 9. 1 220 29.5 34. 5 29.5 34.5 30. 5 34.5
200 9.8 175 80 8. 1 235 31.5 36. 0 31.5 36.0 31.5 36. 0
200 100 8.4 240 33.5 38. 0 33. 5 38. 0 34. 0 38. 0
235 125 8. 7 240 36.2 39. 2 36. 2 39. 2 36. 8 39. 8
255 150 9. 1 250 39.0 43. 4 39. 0 43.4 40. 0 43. 4
315 200 9. 8 260 45.6 50 46. 0 50.4 47. 5 52. 0
250 10.5 180 80 8. 1 265 42.2 43. 6 42. 2 43. 6 42. 2 43. 6
200 100 8.4 270 43.5 46. 0 43.5 46. 0 44. 0 46. 5
230 125 8. 7 275 47.7 49. 1 47.7 49. 1 48. 3 49. 7
260 150 9. 1 280 51.3 52. 7 51.3 52. 7 52. 2 53. 6
315 200 9. 8 290 57.0 60. 0 57.0 60. 0 59. 0 62. 0
375 250 10.5 300 67.4 68. 8 67.1 68. 5 70. 7 72. 1
300 11.2 180 80 8. 1 295 60.8 65.4 60.8 65.4 60. 8 65. 4
205 100 8.4 300 64.2 68.8 64. 2 68. 8 64. 7 69. 3
230 125 8. 7 300 67.0 71.6 67. 0 71.6 67. 6 72. 2
260 150 9. 1 310 71.2 75.8 71.2 75. 8 72. 1 76. 7
320 200 9.8 320 77.9 82.5 77.9 82. 5 79. 7 84. 3
380 250 10.5 330 87.8 92.4 87. 4 92. 0 91. 1 95. 7
435 300 11.2 340 98.7 103. 3 98. 4 103. 0 103. 6 108. 2
350 11.9 185 80 8. 1 325 66.0 76.0 66. 0 76. 0 66. 0 76. 0
205 100 8.4 330 68.0 78.4 68. 0 78. 4 68. 0 78. 9
230 125 8.7 330 70.2 82.6 70. 2 82. 6 70. 8 83. 2
270 150 9. 1 340 82.3 93.0 81. 3 93. 0 82. 3 93. 0
325 200 9. 8 350 86.0 96.0 86. 0 96. 0 88. 0 98. 0
385 250 10.5 360 93.2 105. 6 92.9 105. 3 96. 5 108. 9
420 300 11.2 370 105.0 117.4 104.7 117. 1 109.9 122. 3
495 350 11.9 380 117.0 128. 3 120. 0 131.1 129. 0 139. 0
400 12. 6 185 80 8. 1 355 80.0 90.0 80. 0 90. 0 80. 0 90. 0
210 100 8. 4 360 83.0 93. 0 83. 0 93. 0 83. 0 93. 0
230 125 8. 7 360 86.2 95. 3 86. 2 95. 3 86. 7 95. 9
270 150 9. 1 370 89.3 101.9 89. 3 101.9 90. 3 102. 9
325 200 9. 8 380 103.0 113. 0 102.0 112. 0 104. 0 114. 0
385 250 10.5 390 111.3 123. 9 111.0
