EN545 Ductile Iron Socket Weld Fittings Spigot Offset Pipe For Water Supply
EN545 Ductile Iron Socket Weld Fittings Spigot Offset Pipe For Water Supply
Specifications
Brand Name :
NO
Model Number :
DN100-DN300
Certification :
EN545
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
one container per half month
Delivery Time :
20 to 60 days
Packaging Details :
Package in wooden boxes
Material :
Ductile Cast Iron
Connection :
Flange
Application :
water supply
Standard :
EN545
Color :
black/blue/red
External coating :
bitumen/epoxy
Description

EN545 Ductile Iron Socket Weld Fittings Spigot Offset Pipe For Water Supply

Ductile iron fitting Socket spigot offset pipe in accoedance with EN545

Socket spigot offset pipe

Details

Model Number: DN100-300

Material: Ductile Iron

Internall coatings: cement mortar lining

Color: black/blue/red

Accessory: NBR/SBR/EPDM/bolts & nuts

External coating: bitumen/epoxy

Limit deviations on thickness of fittings

Nominal iron wall thickness e

mm

Limit deviations on the nominal wall thickness a

mm
≤7,0 - 2,3
>7,0 - (2,3 + 0,001 DN)

EN545 Ductile Iron Socket Weld Fittings Spigot Offset Pipe For Water Supply

EN545 Ductile Iron Socket Weld Fittings Spigot Offset Pipe For Water Supply

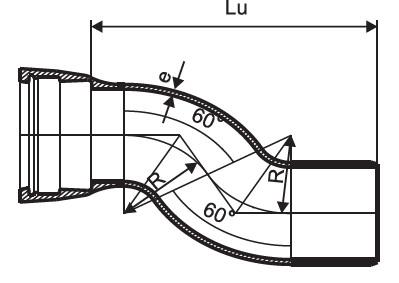

DN e L R Weight (kg)
T type K type
100 7.2 310 150 13.7 17.8
150 7.8 310 150 21.4 26.4
200 8.4 400 200 36.8 39.8
250 9.0 530 250 59.0 60.4
300 9.6 630 300 91.4 96.0

Packaging Details

(1). We will pack your items by carton or plywood cases for exporting standard.
(2). We can also pack your items according to your requirements.
Our Service
1. Good quality and low price.
2. Good after-sale service.
3. Bring the finest goods to customer is our ultimate goal.
4. Products are exported to various countries.
Q: Is sample order acceptable?
A: Yes,of course.
Q: How to place the order?
A: You can send us email or inquiry.
Q: How many days for delivery?
A: Normally within 15~30 days after receipt of payment.
Q: How to make the payment?
A: We accept T/T, L/C.
Q: How will you make the shipment?
A: By sea, air or express service.
