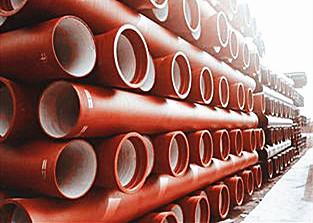

FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m
FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m
FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m
FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m
FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m
FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m
FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m
FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m
FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m
FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m
Specifications
Brand Name :
NO
Model Number :
DN80-DN2600
Certification :
BS EN598
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
one container per half month
Delivery Time :
20-60 days
Packaging Details :
Packing: bundled with steel belts or in bulk
Material :
iron
Gasket :
EPDM
Coating :
epoxy resin over coat layer.
Size :
DN80 to DN2600
MOQ :
1X40'GP
Tensile strength :
Above 420 MPA
Description

FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m

OVERVIEW

FBE coated ductile iron pipe is pipe with an interior of epoxy ceramic made of epoxy resin, quartz powder and others with a dry film thickness of more than 1,000μm,and the excellent corrosion resistance electrical insulating property makes it be a preferential position in transporting municipal sewage, reclaimed water, etc.

FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m

Details

Certification: ISO2531:1998,EN545:2010

Internal coating: FBE Coating

External Coating: zinc spray+bitumen coating

Test: hydrostatic test

Joint Type: Push-on joint,T joint,flexible joint,self-restrained joint

Techinical Process: centrifugal casting

Inscription Style: standard inscription,as per customers'requirements

Keyword: FBE ductile iron pipe

Pipe Length: 6m/5.7m

Epoxy Coating

Factory applied coating with Pure as a binder such as:

Fusion bonded epoxy powder applied by spraying or dipping in fluidized bed on preheated parts,

Two-pack liquid epoxy consisting of a base and a catalyst compeonent which is mixed together in the proportion specified by the manufaturer before use.

Production flow

FBE Fusion Bonded Epoxy Pipe K9 Ductile iron pipe with Tyton Joint 6m

During production process, we carry out tests on line strictly.

The hydraulic test pressure of the ductile cast iron pipes is as follows:

Nominal diamater (DN) mm Hydraulic test pressure
80≤DN≤300 5
350≤DN≤600 4
700≤DN≤1000 3.2
1100≤DN≤2000 2.5

Appearance and continuty

The epoxy coating of the final product shall be of:

Uniform colour, except for permitted marking;

Uniforn appance and smoothness, except for admissible repairs;

Free of vesible defects(pinholes,bubbles,blisters,wrinkles,cracks or voids).

Packaging Details

1) Pipes are bundled together with the steel belt.
2) Wooden pieces are put between the pipes.
for ductile iron pipe epoxy resin pipe.

Product tags

ductile iron pipe pn60

,

en545 ductile iron pipe

,

iso 2531 ductile iron pipe
