80mm - 2600mm Class K9 Pipe Coating Dry Film Thickness For Water Supply

FBE Coated Pipe

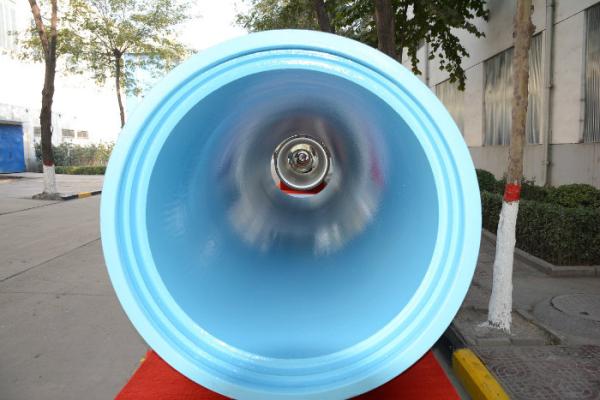

FBE coated ductile iron pipe is pipe with an interior of epoxy ceramic made of epoxy resin, quartz powder and others with a dry film thickness of more than 1,000μm,and the excellent corrosion resistance electrical insulating property makes it be a preferential position in transporting municipal sewage, reclaimed water, etc.

Detailed information:

a. EN545/ISO2531 standard, k9/k8/k7/class c

b. for water supply,DN80-DN2000

c. Outside sprayed with zinc (in accordance with ISO8179, not less than 130 g/m2) and black bitumen paint (with thickness not less than 70 microns), inside with cement mortar lining as per ISO4179.

d. Joint type: Push on joint, flange joint, mechanical joint.

e. brinell hardness: below 230hbw

f. density: above 7g/cm3

g. Minimum order: 1x40’GP, negotiable.

h. Delivery time: normally 15-20 days, depend on your quantity.

i. Payment term: T/T, L/C, or D/P.

k. we could also do the third party inspection at famous organizations such as SGS, BV, etc.

Packing: bundled with steel belts or in bulk
Shipment: in bulk or container

Usage:
Used for water and sewer lines. Ductile cast iron pipe is stronger and easier to tap, requires less support and provides greater flow area compared with pipes made from other materials like PVC, concrete, polyethylene or steel. Ductile Iron Pipe is the most widely-used pipeline product in water supply and water drain/sewage projects.

Our advantages:
There are lots of qualified managers and technicians, and a well-trained team of after-sales service, which provides all services of manufacture, package, transportation and installation. We are looking forward to cooperating with friends from abroad and home creating a brighter future.
