Specifications
Brand Name :
JACK-AIVA
Model Number :
VCD-AB150
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
USD10,000.00-USD30,000.00/SET
Supply Ability :
10SETS/ MONTH
Delivery Time :
70 DAYS
Packaging Details :
According to client request
DeCoiler :
2SETS
Roll forming stands :
8 sets(lower half blade) + 8sets (up half blade) +6sets (joint roll former)
Driving system :
Chain & Gear
Motor power :
4kw
Roller material :
CR12MOV
Max Forming speed :
6-8m/min
Description

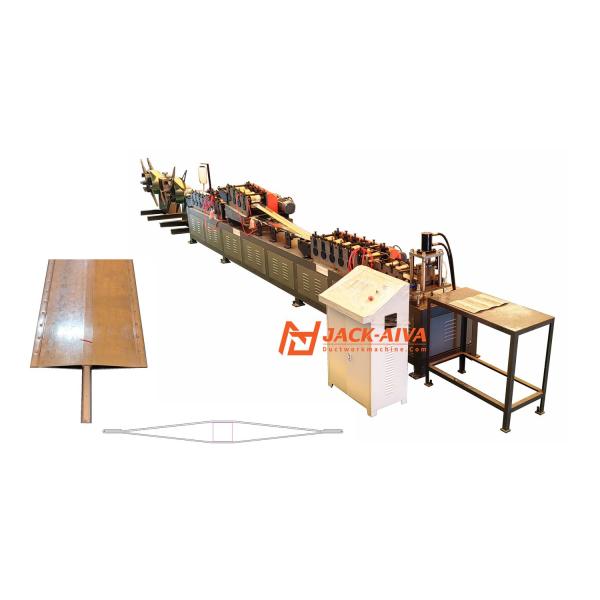

Airfoil Blade Machine, Volume Control Damper, VCD Airfoil Blade Production Line

Airfoil Blade Machine, Volume Control Damper, VCD Airfoil Blade Production Line

The VCD Airfoil Blade is the main part of the HVAC air flow control valve, the Volume Control Damper is an industrial plant civil construction of ventilation, air conditioning and air purification project indispensable central air conditioning end parts, generally used in air conditioning, ventilation system ducts, used to adjust the air flow manifold can also be used for new wind and back mix adjustment of the wind.

With the advantage of our full experience in this roll forming industry, we develop the roll forming line for production this VCD Airfoil Blade online, the whole process can be completed at one time.

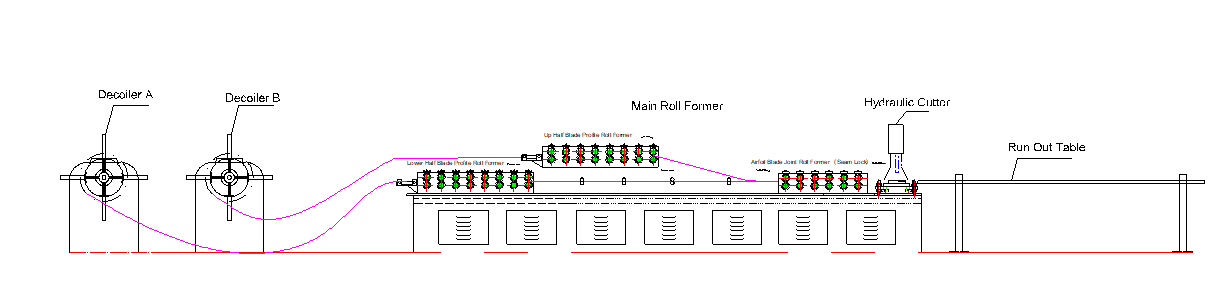

VCD Airfoil Blade Production Line Technology flow

De- Coiler (2SETS)— Lower half blade Roll Former (8 station) --- Up half blade roll former (8 stations) --- Guiding device ----Airfoil blade Joint roll former (6 stations)---- Hydraulic Cutting ---- Run Out Table ;

Airfoil Blade Machine, Volume Control Damper, VCD Airfoil Blade Production Line

VCD Airfoil Blade Machine Main Parameters

Roll forming stands 8 sets(lower half blade) + 8sets (up half blade) +6sets (joint roll former)
Driving system Chain + Gears
Roller material CR12MOV, Rolls hardness after treatment: HRC59-61°
Rollers shaft 45# steel, Roller diameter Φ42mm
Motor power 4KW
Max Forming speed 6-8m/min (adjustable, VFD Control)
Main machine Sizes: L*W*H 6m*1.4m*1.2m
Weight: around 4 tons
Electrical control system PLC & Touch screen control system, with VFD speed control,

VCD Airfoil Blade Profile
