40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
Specifications
Use :
Truck Trailer
Type :
Semi-Trailer
Material :
Steel
Size :
12400-16400 *2500 * 1550mm
Max Payload :
60T
Place of Origin :
Shandong, China
Brand Name :
Xianmang
Product name :
transportation container trailer
Quantity OF Axle :
2~4
Capacity :
30~60T
Paiting :
Optional
Tire specification :
12R22.5/11.00R20
Whellbase(mm) :
6800+1310+1310
Kingpin :
50#90#
Floor :
3-5mm Diamond Plate
Electrical System :
Voitage:24v
Suspension :
Mechanical Suspension
Price :
CN¥65,217.60/sets 1-4 sets
Description
Product Description

40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
Flatbed semi trailer has a reasonable structure, reliable operation, and beautiful appearance, giving full play to the full potential of the vehicle. The various products can meet customers' individual needs.
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
Why choose ZW Group for cooperation ?
The quality of most of ZW Group semi trailer are the same as or better than CIMC and Titan
For example, the quality of Flatbed semi trailer,Low bed Semi Trailer, Fuel tanker semi Trailer, Detachable Gooseneck Lowboy (Frond loading) Trailer, and Container Side Loader far exceed the quality of CIMC.
Secondly, ZW Trailer is the manufacturer that exports the most semi-trailers in China, exporting more than 2,600 units every year.
Choosing ZW Group, we will help you resolve all from production, packing and shipping to after-sales services, with more favorable price.
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
Details Images

40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
Xianmang Tranding Co.;Ltd Flatbed Semi Trailer is the main load-bearing part, which is composed of the main beam, side beam, beam, bottom plate, suspension and so on. The steel plate in the middle of the beam is made of Q345B manganese steel with a thickness of 8mm.
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
Production Processing Plant
Flatbed Semi Trailer is mainly used to carry heavy duty containers.With better carrying capacity, increased off-road capability, mobility, road safety and longer service life.
We have professional technicians to operate.The chassis is a frame of welded beams and beams with mounting brackets and equipment to hold and securely hold the load.With side protection and support.
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
Flatbed Tractor Trailer Features
The flatbed trailer has a reinforced frame made of high-strength steel HG60, a thickened floor, a reliable chassis and an efficient braking system.
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
Product Paramenters

Dimensions (LxWxH)
12400-18000×2500-3200×1500-1550mm
Tare Weight
8000kg--14000kg
Loading Capacity
40T
Axle Weight Load
13T
Axle number
2
Axle Brand
Fuwa/BPW/Optional upon choice
Suspension
Common mechanical Or Air suspension
King Pin
2" or 3.5" traction pin
Support legs
28T
Wheel Rim
8.5-20,9.0-20,8.28-22.5,9.0-22.5 steel wheel rim/optional upon choice
Wheelbase
7180/6680/6260+1310+1310mm
Steel Spring
10-13 pieces per axle
Twist lock
12 sets of ISO twist lock for 1*20ft,2*20ft,1*40ft container
Landing Gear
Manual operating, Heavy duty landing gear (Brand Optional upon chioce)
Floor
3-5 Diamond steel plate
Accessories
1 Set standard tool box
Light
Tail lamp with turn signal, brake light & reflector, side lamp etc.
Painting
1coat of anticorrosive prime, twice coats of final paint
Customer Photos

40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate

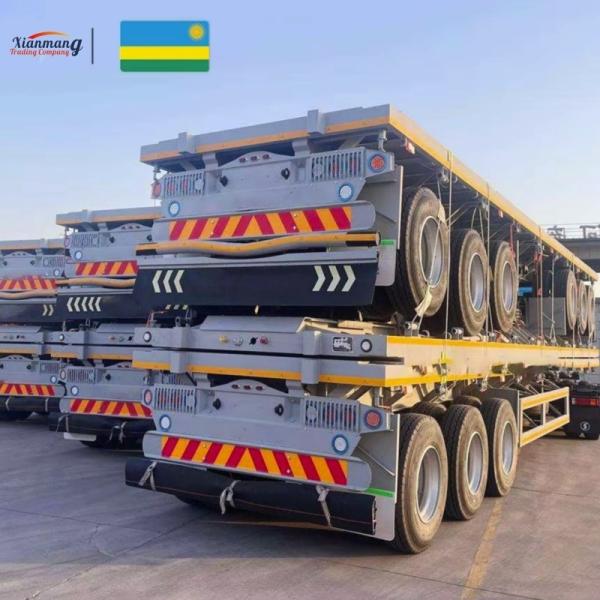

Packing and Shipping

40ft 3 And 4axles 48ft 53ft Platform Flatbed Container Semi Trailer With Tractor Steel Floor 3-5mm Diamond Plate
