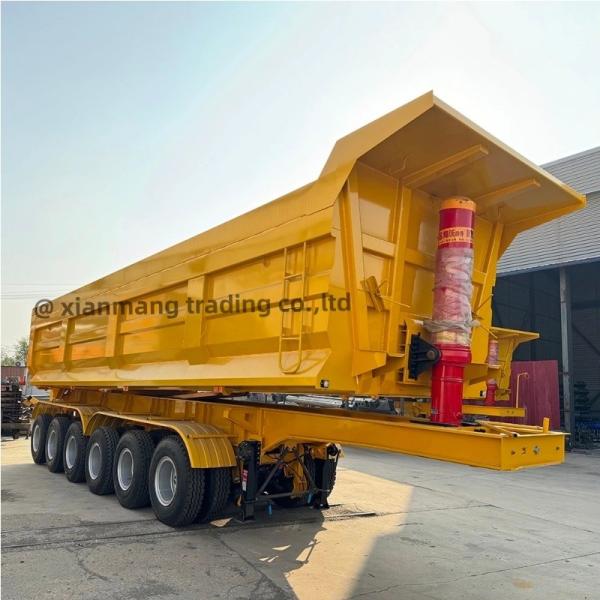

3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
Specifications
Use :
Truck Trailer
Material :
Steel
Size :
9300mm*2400mm*1800mm
Max Payload :
100T
Place of Origin :
Shandong, China
Brand Name :
xianmang
Cylinder :
Hyva FC/Ez Brand
Load Capacity :
60-100ton
Tread :
1820-2240
Suspension System :
Spring/Air Suspension/Bogie
Brake System :
Dual Line Braking System /ABS
Tire Specification :
12.00r20 /315/80r22.5 or Customized
Bucket :
35cbm, 40cbm, 45cbm
Tilt Angle :
45 Degrees
Box :
U Type Hardox or Equal Steel
Production Capacity :
500 Pieces Per Month
Price :
CN¥50,724.80/units 1-4 units
Description
Product Overview

Hydraulic cylinder 4 Axles U type 20 tons 50 tons End Dump Trailer Tipper Semi Truck Trailer for sale
1. High load capacity: The 4 axles dump semi trailer has a high load capacity, allowing it to transport large quantities of materials or goods efficiently and effectively.
2. Enhanced stability: With four axles, this semi trailer offers enhanced stability during transportation, reducing the risk of accidents or damage to the cargo.
3. Versatile design: The 4 axles dump semi trailer is designed to be versatile, allowing it to be used for various purposes, such as transporting construction materials, agricultural products, or waste materials.
4. Easy unloading: The dump feature of this semi trailer allows for easy unloading of the cargo, making it a convenient choice for industries that require frequent loading and unloading operations.
FEATURES AT A GLANCE

3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
PRODUCT SPECIFICATIONS

Box Body
Dimension
10000mm×2500mm×3800mm (The final size is according to the drawing)
Box size(Inner Size)
9000mm×2300mm×1600mm
Tare Weight
About 14000kg
Total Volume ( m3 )
0 m³
Side wall thickness
4 mm
Bottom plate thickness
6 mm
Lifting system
Full set of HYVA Hydraulic Lifting Cylinder
Chassis
Axle
3 axles, 13T
Landing Gear
JOST E100, double speed type;
King Pin
JOST 2.0/3.5 inches king pin
Suspension
Heavy Duty Mechanical Suspensions (American type);
Leaf Spring
90(W)mm×16(Thickness)mm×10 layers,6 sets
Pneumatic Braking System
WABCO RE 6 relays valve; 8 pcs Spring chamber; 2 pcs of 40L air tankers
Rim
9.0-22.5, 12 pcs rims;
Tire
12R22.5, 12 pcs tires;
Painting
Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Accessories
One standard tool box, one spare tire carrier.
Package & Transport

3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
3/4 Axle Rear Dump Semi Trailer , Hydraulic Cylinder U Type 20 Tons 50 Tons Tipper Dump Truck For Sale
