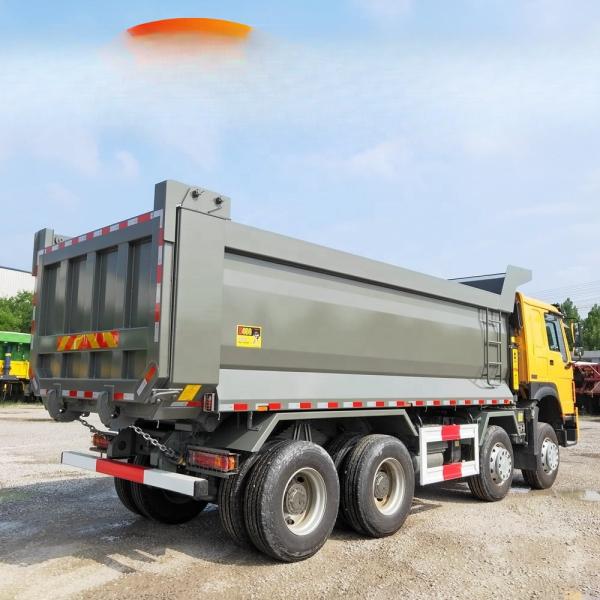

Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Specifications
Condition :
New
Steering :
Left
Horsepower :
351 - 450hp
Emission Standard :
Euro 4
Brand Name :
SINOTRUK HOWO
Place of Origin :
China
Segement :
Heavy truck
Market Segement :
Mining transportation
Engine Brand :
SINOTRUCK
Fuel Type :
Diesel
Engine Capacity :
> 8L
Cylinders :
6
Gear Box Brand :
SINOTRUCK
Transmission Type :
Manual
Forward Shift Number :
10
Reverse Shift Number :
2
Maximum Torque(Nm) :
1500-2000Nm
Dimensions (L x W x H) (mm) :
11400*2550*3450mm
Cargo Tank Dimension :
5600*2500*1500mm
Cargo Tank length :
5.3-6.2M
Gross Vehicle Weight :
12460
Capacity (Load) :
41 - 50t
Fuel Tank Capacity :
300-400L
Drive Wheel :
8X4
Passengers :
2
Driver's Seat :
Normal
Rear Camera :
None
Cruise Control :
None
ABS(Antilock Braking System) :
Yes
ESC(Electronic Stability Control System) :
None
Touch Screen :
None
Multimedia System :
Yes
Window :
Manual
Air Conditioner :
Manual
Tire Number :
10
After-sales Service Provided :
Video technical support, Online support
Product name :
SINOTRUK Howo 380hp 8x4 Truck
Chassis model :
ZZ331N3867W
Cabin :
HW76, with one sleeper
Engine :
WD615.47 (371HP)
Transmission :
HW19710, 10F & 2R
Steering system :
ZF8118, hydraulic steering with power assistance
Front axle :
HF9
Drive axle :
HC16
Tyre :
12.00R20, radial tyres with one spare tyre
Cargo Body Size :
7800*2300*1500mm
Price :
$25,400.00/units 1-1 units
MOQ :
1 unit
Description
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity

Description:
SINOTRUCK SINOTRUK Euro 4 380HP 8x4 SINOTRUK HOWO Dump Truck Philippines

Which is the most famous brand of heavy duty truck in China. It's also the biggest exported quantity of China brand trucks in all over the world. Abundant truck products can meets customers demands very well.

This type truck is the famous brand of CNHTC group in abroad marketing. it also have a large exporting quantity in recently years, and make a big effort for local infrastructure construction.This type truck need more wide road for the lenght of the whole truck is longer than 6X4 and 4X2 type truck. full expression of heavy duty truck concept. Delicate design, excellent technology, which have the advantages of Comfort, safety, reliability, electronic level geared to international level. Low fuel consumption.

It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works

Be comprehensive with Euro2 and Euro3 engine equipped.

Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 etc.

Power range: 266PS - 420PS.howo Leader In Heavy Duty Truck Industry Driving King On The Road

High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.

Top configuration: Diesel brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system.
Product Name
SINOTRUK HOWO 8X4 Dumper Truck
Chassis Model
ZZ3317N3867D1
Driving Type
LHD (RHD is optional)
Cabin
HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: D10.38-40, Euro 4, 380 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
Transmission
HW19710, 10F & 2R, with PTO
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering
ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle
HF9,1x9000 KGS
Steering with doubleT-cross section beam
Rear Axle
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:5.73
Propeller Shaft
Double universal joint propeller shaft with gear-shaped coupling flange
Chassis
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres
12.00R20, radial tyres with one spare tyre
Fuel Tank
300L
Cargo Body
7800*2300*1500 mm, 27 CBM, Floor 8mm Side 6mm
Overall Dimension
11400*2550*3450mm
Relation Products

Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity

Competitive Advantage:

1.Based on strong technical support and top level technology make the trucks with high quality and more reliable

2.Strong enough engine

3.With all kinds of truck model, which can full fill your requirements

4.The key parts adopt the world's top technology products

5.Usually choose the standard cargo body structure

6.Using the good quality steel plate, make it has a long service life

7.The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.

8.Excellent appearance of cabin, safety, reliable

9.Competitive price, cost-effective

10.Quick and efficient spare parts supply bring you more convenient

11.Fast delivery time, we can arrange production according to your needs exactly and quickly

12.Professional import and export dealing procedure, make customs clearance more high efficiency

13.Low fuel consumption

Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
Howo Euro 4 380hp 8x4 Dump Truck with ZF8118 Steering System and 50 Ton Capacity
