Specifications
Brand Name :
PingAn
Model Number :
3 Axle Flat Trailer
Certification :
ISO 9001/CCC
Place of Origin :
China
MOQ :
1unit
Price :
$10,000
Payment Terms :
T/T
Supply Ability :
300 Sets per Month
Delivery Time :
30work days
Packaging Details :
Mode of transport: Sea, transport ship branch: bulk carrier
Model :
3 Axles Flatbed Trailer
Max Payload :
>30ton
Type :
semi-trailer
Material :
Steel
Size :
12500*2500*1600 MM
Axle :
3-Axle
Loading capacity :
40/60/80ton
Tire :
12.00R20
Description
Product introduction

Flatbed semi-trailers are mainly used for transporting large, heavy, irregularly shaped and oversized goods. They have no fixed side walls or roofs, which makes loading and unloading of goods convenient. Flatbed trailers come in different sizes and configurations and are usually equipped with detachable sides and posts to increase the flexibility of cargo transportation. This flexibility enables flatbed semi-trailers to be used for a wide range of transportation needs, from construction materials to agricultural equipment and so on. The body is made of high-strength international steel, ensuring the lightweight, anti-torsion, anti-shock and anti-collision capabilities of the vehicle body, meeting the load-bearing capacity of different roads.

3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton


Suggestion:

If you can't choose, take a look at our suggestions

Flatbed Semi Trailer Specification
20FT FLATBED SEMI TRAILER
40FT FLATBED SEMI TRAILER
45FT FLATBED SEMI TRAILER
2 Axles/3 Axles
2 Axles/3 Axles /4 Axles
3 Axles /4 Axles
20ft container or cargo loading
1*40ft/2*20ft Container or cargo loading
1*40ft/1*45ft container or cargo loading
Loading Capacity: 20 - 60 Tons
Loading Capacity: 30 - 80 Tons
Loading Capacity: 30 - 80 Tons
Gooseneck Type: Yes
Gooseneck Type: Yes
Gooseneck Type: Yes
Tandem Type: Yes
Tandem Type: Yes
Tandem Type: Yes
Main Beam
Material: Q345/T700
Material: Q345/T700
Material: Q345/T700
Upper Plate Thickness: 12mm
Upper Plate Thickness: 16mm
Upper Plate Thickness: 16mm
Middle Plate Thickness: 6mm
Middle Plate Thickness: 10mm
Middle Plate Thickness: 10mm
Lower Plate Thickness: 14mm
Lower Plate Thickness: 18mm
Lower Plate Thickness: 18mm
Height: 500mm
Height: 500mm
Height: 500mm
Platform Thickness: 2.5mm
Platform Thickness: 3mm
Platform Thickness: 3mm
Product Dimension
L 7000mm*W 2500mm*H 1570mm
L 12400mm*W 2500mm*H 1570mm
L 13950mm*W 2500mm*H 1600mm
Axles
2/3 Axles *13/16 Ton
VEHICLE MASTER/FUWA/BPW/Other
2/3 Axles *13/16 Ton
VEHICLE MASTER/FUWA/BPW/Other
2/3 Axles *13/16 Ton
VEHICLE MASTER/FUWA/BPW/Other
Tire
Rim
9.00*22.5 (8/12 Pieces) Steel/Aluminum
9.00*22.5 (8/12 Pieces) Steel/Aluminum
9.00*22.5 (8/12 Pieces) Steel/Aluminum
Leaf Spring
90mm*13mm*10/90mm*16mm*10Pcs
90mm*13mm*10/90mm*16mm*10Pcs
90mm*13mm*10/90mm*16mm*10Pcs
King Pin
50#(2")/90#(3.5") JOST/Other Brand
50#(2")/90#(3.5") JOST/Other Brand
50#(2")/90#(3.5") JOST/Other Brand
Landing Gear
28 Ton Two Speed,JOST/Other Brand
28 Ton Two Speed,JOST/Other Brand
28 Ton Two Speed,JOST/Other Brand
Twist Lock
4 Sets
12 Sets
12 Sets
Vehicle Painting
Electrophoresis painting
Electrophoresis painting
Electrophoresis painting


Parameters of flat semi-trailer

Model
3 Axles Flatbed Trailer
Overall Dimension(mm)
12500*2500*1600mm
Payload
30000-60000kg
Main Beam
main beam design, Q345B carbon steel,
the height of the beam is 500 mm,
upper plate is 14 mm,down plate is 16 mm, middle plate is 8 mm.
Function
To transport animals or others
Axle
13Ton
Tire
12R20 12pcs
Suspension system
Steel suspension
Traction/King Pin
50mm or 90mm
Landing Gear
Standard 28 ton single action supporting legs
Brake system
Dual line pneumatic brake, SAE hose and connector,optional ABS
Tool box
1pcs, One crank and one shaft head wrench
Spare wheel carriers
2 pcs
Paint
Customized according to customer needs

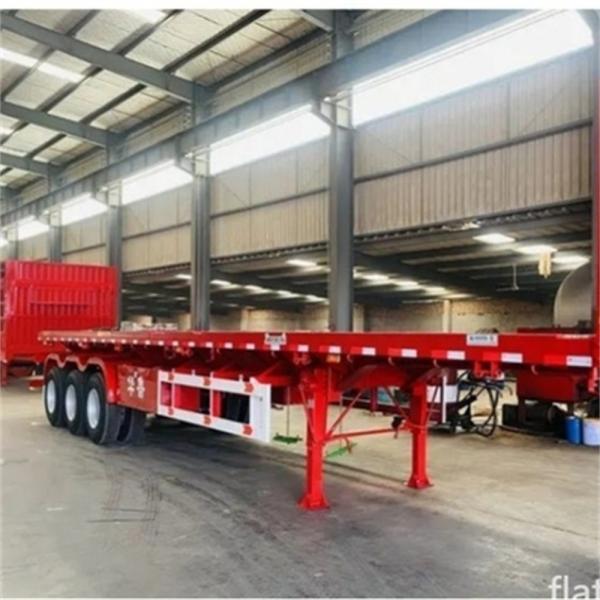

Truck picture

3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton


Application scenario:

The following are several typical application scenarios of flat semi-trailers:

1. Transportation of large machinery and equipment: transportation of construction machinery (such as excavators, bulldozers, road rollers) or industrial equipment (such as generators, machine tools).
Advantages: The flat structure facilitates direct loading and unloading of heavy equipment without lifting assistance, suitable for site or inter-plant transfer.

2. Transport of building materials: Transport of steel, precast concrete components, large pipes or building modules.
Advantages: Flat cargo platform can carry ultra-long or ultra-wide building materials, with fixed brackets to ensure transport stability.

3. Agriculture and forestry transport: Transport of agricultural machinery (such as harvesters, tractors) or log and tree equipment across regions.
Requirements: Suitable for rural rough roads, low slab design can reduce the center of gravity to prevent rollover.

4. International trade container transfer: transport non-standard size containers or open containers (such as large equipment naked).
Flexibility: The flat semi-trailer can be adapted to a variety of container locks, suitable for port to inland transfer.

5. Transport of scrap and recycled materials: transport of scrap cars, metal scrap or large industrial waste.
Practicality: Wear resistant platform design, suitable for heavy and frequent loading and unloading.


Packing & Shipping

Packaging details picture display: prevent scratching, abrasion and peeling paint

3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton

Mode Of Transport: Bulk Carrier/RO-RO Ship

3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton


Competitive Advantage:

Our Advantages:
1. Factory direct sales
2. Our products can be customized according to different needs. And can customize the unique company logo.
3. The factory adopts advanced automation equipment. The steel uses an automatic submerged arc welding process, and the connection points look more perfect and stronger than the traditional manual method.
4. Cover plate coating is more durable, corrosion resistant, uniform and smooth, using sandblasting powder coating process


Customer feedback

Our trucks are highly appreciated by our customers. As a leading brand for the export of used trucks, our products have a very low failure rate and thus win many repeat orders from regular customers. This is a testament to our continued pursuit of product quality and customer satisfaction.

3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton

3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton3 Axles Custom 2 4 5 6 Axles 40 Ft 12.00R20 Tire Container Transport Flatbed Semi-Trailer with Max Payload 30ton


Our service advantages:


# All of our company's trucks undergo rigorous inspections before they leave the factory and are delivered to customers. These comprehensive assessments ensure that each car is synonymous with exceptional quality and exceptional performance, providing guaranteed satisfaction.


1. Customized solutions: Our professional design team and a number of experienced engineers can be tailored according to your specific needs to ensure that every product can be satisfied with you.
2. Excellent quality assurance: With rich industry experience, we are always committed to providing customers with high-quality trailers, while providing value-added services, so that you can enjoy a better user experience.
3. Diversified product line: We mainly provide various types of semi-trailers, including standard semi-trailers, van semi-trailers, low plate semi-trailers, dump semi-trailers, tank semi-trailers, container semi-trailers and car carriers, etc., to meet your different transportation needs.
4. 24/7 support: We provide 24-hour one-stop service, and our professional service team is on standby to quickly and effectively solve your problems and ensure the smooth operation of your business.


FAQ


Q1: What can you buy from us?

A1: New and used SINOTRUCK and SHACMAN brands : dump trucks, tractor trucks, Cargo trucks, tank trucks, suction trucks, cement mixers and custom trailers, as well as truck accessories.

Q2: How to visit your factory?

A2: When you arrive in China, you can fly to Nanchang Airport. Nanchang Airport is located in Nanchang City, Jiangxi Province. Our driver will pick you up at Nanchang International Airport and drive you to our factory.

Q3: How to ensure product quality?

A3: 1. New car: First of all, we have passed the international quality system certification. Secondly, China Manufacturing Group has carried out on-site certification of our factory.

2.Used car: Before each vehicle leaves the factory, we will check the vehicle's: engine, gearbox, frame, rear axle is in perfect working level, and road test. If you are not assured, you can entrust a third-party testing agency to do a detailed inspection of our factory vehicles.

Q4 :What services can we provide?

A4: 1. On the premise that you do not need us to be responsible for international transportation, we can help customers transport to any port in China for vehicle handover.
2. If you need our company to take charge of transportation, we can book the cabin for you and transport to the port of delivery. Make it easier for you.

Acceptable delivery methods: FOB, CIF
Payment currency accepted: US Dollar, Euro, Chinese Yuan, Nigerian Naira, Kenyan Shilling.
Payment accepted: T/T payment
Sales team support spoken English.

Q5: Who are we?

A5: Our factory headquarters is located in Gao 'an City, Jiangxi Province, the factory covers an area of 2000 square meters, there are truck exhibition hall, repair shop, maintenance workshop, paint shop. Professional truck maintenance personnel reached 15 people. The company began to engage in truck export business in 2018, and the current sales market share: Africa (80.00%), Southeast Asia (10.00%), Central America (10.00%). Our sales team company is located in Dongguan City, Guangdong Province, professional sales team of 8 people.
