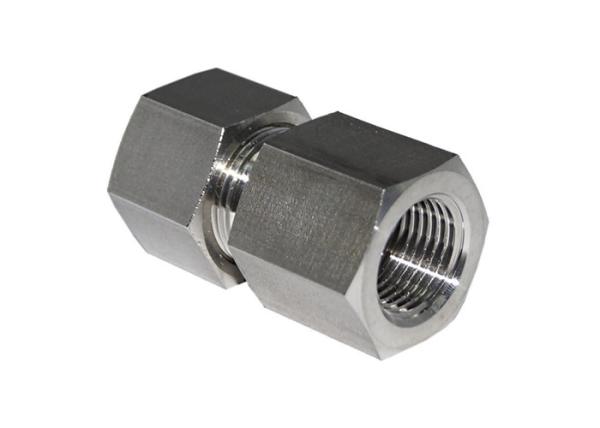

1/2 Inch Straight Female Connectors Compression Tube Fittings NPT Thread
1/2 Inch Straight Female Connectors Compression Tube Fittings NPT Thread
1/2 Inch Straight Female Connectors Compression Tube Fittings NPT Thread
1/2 Inch Straight Female Connectors Compression Tube Fittings NPT Thread
Specifications
Brand Name :
Kaysuns
Place of Origin :
China
Product Name :
Straight Female Connectors
Material :
Stainless steel
Size :
1/8" to 1/2"
Working Pressure :
Up to 6000
Connection :
Thread
Type :
Female
Description

1/2 Inch Straight Female Connectors Compression Tube Fittings NPT Thread

Our tube fittings stainless steel, compression tube fittings and stainless steel tube fittings, stainless steel tube fittings can be used for many connections and configurations. Hardened threads and a smooth surface finish extend the life of the fitting and prevent mating of the threads.

feature:

1. Size from 1/8 "to 1/2" and 3mm to 38mm, working pressure up to 6000psi;

2. The internal( female) nut threads are plated with silver to reduce the friction with the body threads;

3. Different materials and configurations can be provided.

Description:

1/2 Inch Straight Female Connectors Compression Tube Fittings NPT Thread

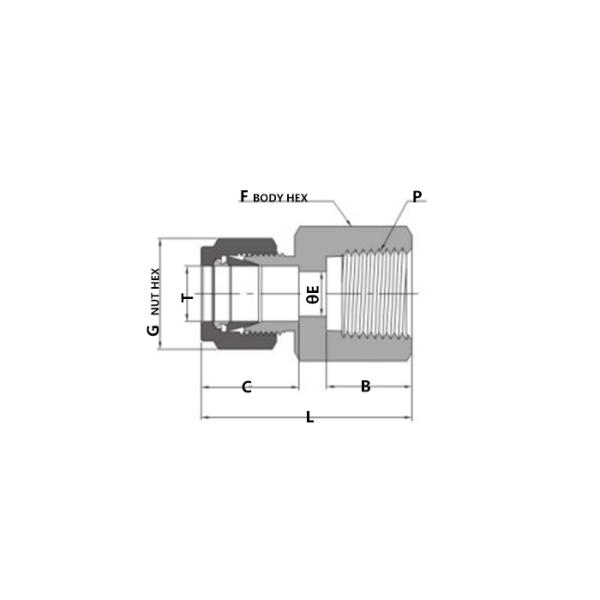

T-Tube 0.D.(in.) P-NPT Size Basic_Ordering Number DIM mm L DIM mm B DIM mm C DIM mm E DIM mm G DIM mm F Inter-changes with
1/16 1/16 -CF-S1-NT1 23.6 9.9 8.6 1.3 7.9 11.1 -100-7-1
1/16 1/8 -CF-S1-NT2 24.4 10.4 8.6 1.3 7.9 14.3 -100-7-2
1/8 1/8 -CF-S2-NT2 28.7 10.4 12.7 2.3 11.1 14.3 -200-7-2
1/8 1/4 -CF-S2-NT4 33.5 15.0 12.7 2.3 11.1 19.1 -200-7-4
3/16 1/8 -CF-S3-NT2 29.7 10.4 13.7 3.0 12.7 14.3 -300-7-2
1/4 1/8 -CF-S4-NT2 31.2 10.4 15.2 4.8 14.3 14.3 -400-7-2
1/4 1/4 -CF-S4-NT4 35.8 15.0 15.2 4.8 14.3 19.1 -400-7-4
1/4 3/8 -CF-S4-NT6 37.6 15.0 15.2 4.8 14.3 22.2 -400-7-6
1/4 1/2 -CF-S4-NT8 42.4 19.8 15.2 4.8 14.3 27.0 -400-7-8
5/16 1/8 -CF-S5-NT2 32.0 10.4 16.3 6.4 15.9 14.3 -500-7-2
5/16 1/4 -CF-S5-NT4 36.8 15 16.3 6.4 15.9 19.1 -500-7-4
3/8 1/8 -CF-S6-NT2 32.8 10.4 16.8 7.1 17.5 15.9 -600-7-2
3/8 1/4 -CF-S6-NT4 37.6 15.0 16.8 7.1 17.5 19.1 -600-7-4
3/8 3/8 -CF-S6-NT6 39.1 15.0 16.8 7.1 17.5 22.2 -600-7-6
3/8 1/2 -CF-S6-NT8 43.9 19.8 16.8 7.1 17.5 27.0 -600-7-8
3/8 3/4 -CF-S6-NT12 47.8 20.6 16.8 7.1 17.5 33.3 -600-7-12
1/2 1/4 -CF-S8-NT4 40.4 15.0 22.9 10.4 22.2 20.6 -810-7-4
1/2 3/8 -CF-S8-NT6 41.9 15.0 22.9 10.4 22.2 22.2 -810-7-6
1/2 1/2 -CF-S8-NT8 46.7 19.8 22.9 10.4 22.2 27.0 -810-7-8
1/2 3/4 -CF-S8-NT12 48.3 20.6 22.9 10.4 22.2 33.3 -810-7-12
5/8 3/8 -CF-S10-NT6 41.9 15.0 24.4 12.7 25.4 23.8 -1010-7-6
5/8 1/2 -CF-S10-NT8 46.7 19.8 24.4 12.7 25.4 27.0 -1010-7-8
3/4 1/2 -CF-S12-NT8 46.7 19.8 24.4 15.7 28.6 27.0 -1210-7-8
3/4 3/4 -CF-S12-NT12 48.3 20.6 24.4 15.7 28.6 33.3 -1210-7-12
7/8 3/4 -CF-S14-NT12 49.8 20.6 25.9 18.3 31.8 33.3 -1410-7-12
1 3/4 -CF-S16-NT12 53.3 20.6 31.2 22.4 38.1 34.9 -1610-7-12
1 1 -CF-S16-NT16 62.2 25.4 31.2 22.4 38.1 41.3 -1610-7-16
1 1/4 1 1/4 -CF-S20-NT20 74.7 25.4 41.1 27.7 47.6 54.0 -2000-7-20
1 1/2 1 1/2 -CF-S24-NT24 83.3 27.7 50.0 36.3 57.2 60.3 -2400-7-24

For more infomation, please contact us.
