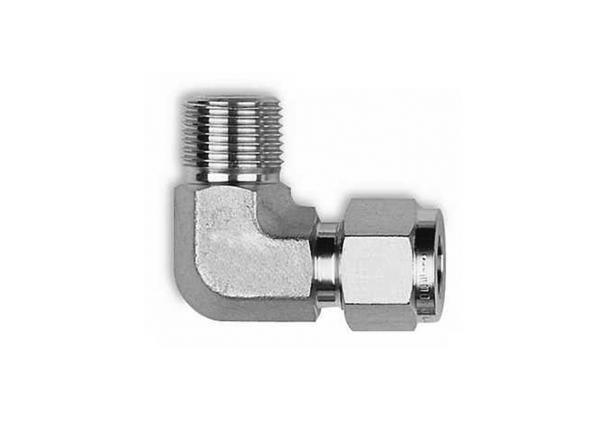

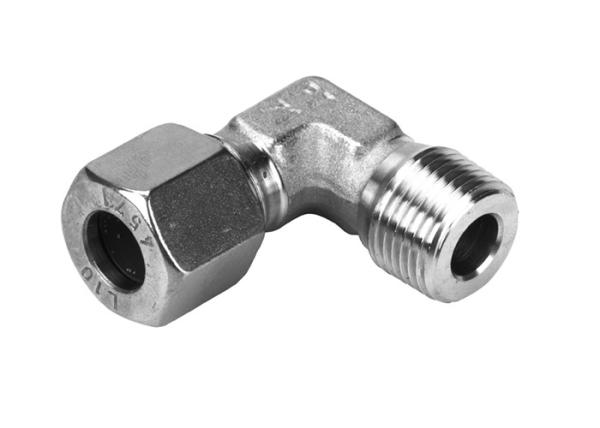

1/2 Inch Male Elbows Compression Tube Fittings NPT Thread Fractional Tube

Kaysuns compression tube fittings stainless steel, compression tube fittings and stainless steel tube fittings, stainless steel tube fittings can be used for many connections and configurations. Hardened threads and a smooth surface finish extend the life of the fitting and prevent mating of the threads.

feature:

1. Size from 1/8 "to 1/2" and 3mm to 38mm, working pressure up to 6000psi;

2. The male nut threads are plated with silver to reduce the friction with the body threads;

3. Different materials and configurations can be provided.

Description:

<table width="100%" cellpadding="0" cellspacing="0" "="" border="1" style="width:100%;">

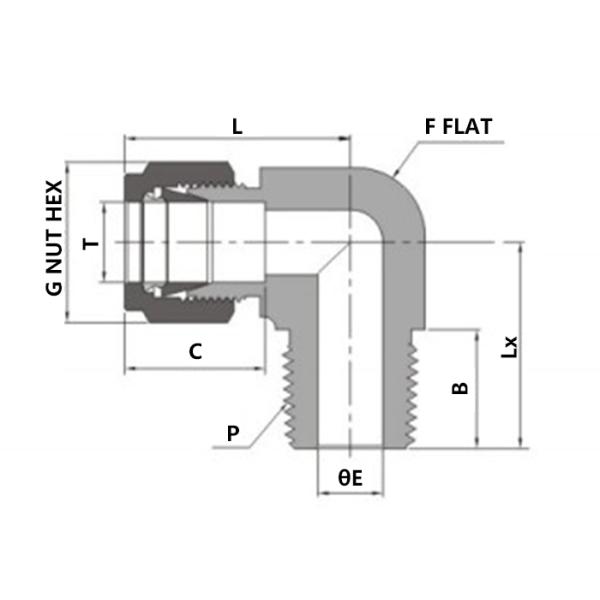

T-Tube O.D.(in.) P-NPT Size DIM mm L DIM mm C DIM mm G DIM mm F DIM mm E DIM mm B DIM mm Lx Inter-changes with 1/16 1/16 19.1 8.6 7.9 11.1 1.3 9.7 17.8 -100-2-1 1/16 1/8 19.1 8.6 7.9 11.1 1.3 9.7 17.8 -100-2-2 1/8 1/16 23.6 12.7 11.1 11.1 2.4 9.7 17.8 -200-2-1 1/8 1/8 23.6 12.7 11.1 11.1 2.4 9.7 17.8 -200-2-2 1/8 1/4 24.6 12.7 11.1 12.7 2.4 14.2 23.4 -200-2-4 3/16 1/8 25.4 13.7 12.7 12.7 3.0 9.7 18.8 -300-2-2 3/16 1/4 25.4 13.7 12.7 12.7 3.0 14.2 23.4 -300-2-4 1/4 1/16 26.9 15.2 14.3 12.7 3.0 9.7 18.8 -400-2-1 1/4 1/8 26.9 15.2 14.3 12.7 4.8 9.7 18.8 -400-2-2 1/4 1/4 26.9 15.2 14.3 12.7 4.8 14.2 23.4 -400-2-4 1/4 3/8 29.7 15.2 14.3 17.5 4.8 14.2 26.2 -400-2-6 1/4 1/2 31.8 15.2 14.3 20.6 4.8 19.1 33.0 -400-2-8 5/16 1/8 28.7 16.3 15.9 14.3 4.8 9.7 19.8 -500-2-2 5/16 1/4 28.7 16.3 15.9 14.3 6.4 14.2 24.4 -500-2-4 5/16 3/8 30.5 16.3 15.9 17.5 6.4 14.2 26.2 -500-2-6 3/8 1/8 30.5 16.8 17.5 15.9 4.8 9.7 20.8 -600-2-2 3/8 1/4 30.5 16.8 17.5 15.9 7.1 14.2 25.4 -600-2-4 3/8 3/8 31.2 16.8 17.5 17.5 7.1 14.2 26.2 -600-2-6 3/8 1/2 33.3 16.8 17.5 20.6 7.1 19.1 33.0 -600-2-8 3/8 3/4 37.1 16.8 17.5 27.0 7.1 19.1 36.8 -600-2-12 1/2 1/4 36.1 22.9 22.2 20.6 7.1 14.2 28.2 -810-2-4 1/2 3/8 36.1 22.9 22.2 20.6 9.7 14.2 28.2 -810-2-6 1/2 1/2 36.1 22.9 22.2 20.6 10.4 19.1 33.0 -810-2-8 1/2 3/4 39.9 22.9 22.2 27.0 10.4 19.1 36.8 -810-2-12 5/8 3/8 38.1 24.4 25.4 23.8 9.7 14.2 30.2 -1010-2-6 5/8 1/2 38.1 24.4 25.4 23.8 11.9 19.1 35.1 -1010-2-8 5/8 3/4 39.9 24.4 25.4 27.0 12.7 19.1 36.8 -1010-2-12 3/4 1/2 39.9 24.4 28.6 27.0 11.9 19.1 36.8 -1210-2-8 3/4 3/4 39.9 24.4 28.6 27.0 15.7 19.1 36.8 -1210-2-12 7/8 3/4 44.7 25.9 31.8 34.9 15.7 19.1 41.7 -1410-2-12 1 3/4 49.0 31.2 38.1 34.9 15.7 19.1 41.7 -1610-2-12 1 1 49.0 31.2 38.1 34.9 22.4 23.9 46.5 -1610-2-16 1 1/4 1 1/4 66.5 41.1 47.6 42.9 27.7 23.9 52.4 -2000-2-20 1 1/2 1 1/2 78.0 50.0 57.2 50.8 34.0 26.2 60.5 -2400-2-24

For more infomation, please contact us.
