ANSI/ASME B16.9 Stainless Steel Buttweld Pipe Fittings Cap End
ANSI/ASME B16.9 Stainless Steel Buttweld Pipe Fittings Cap End
ANSI/ASME B16.9 Stainless Steel Buttweld Pipe Fittings Cap End
ANSI/ASME B16.9 Stainless Steel Buttweld Pipe Fittings Cap End
Specifications
Brand Name :
KAYSUNS
Model Number :
KS-WF
Certification :
PED,ISO
Place of Origin :
China
MOQ :
100Pcs
Price :
USD
Supply Ability :
400Tons per Month
Delivery Time :
30-45days
Packaging Details :
Plastic Bags / Plywood Boxes
Material :
304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 310S, 310H, 904L, 254SMO
Standard :
ASME/ANSI B16.9, MSS-SP-43, MSS-SP-75, EN/DIN, JIS B2311/2312/2313, ISO 3419, ISO 5251 etc.
Process :
Cold Forming
Type :
Welded / Seamless
OD. :
1/2" to 24" (DN15 ~DN600)
WT. :
SCH5S to SCHXXS
Description

ANSI/ASME B16.9 Stainless Steel Buttweld Pipe Fittings Cap End

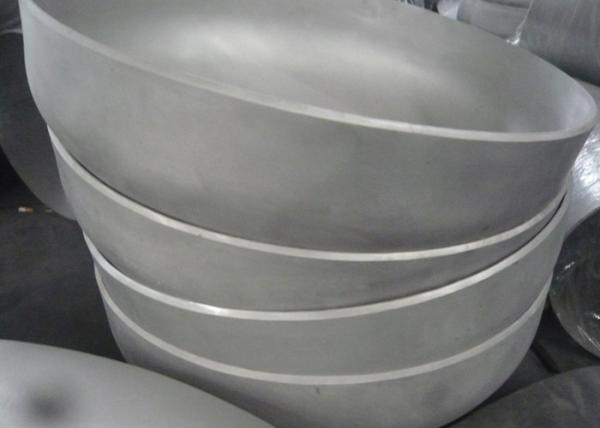

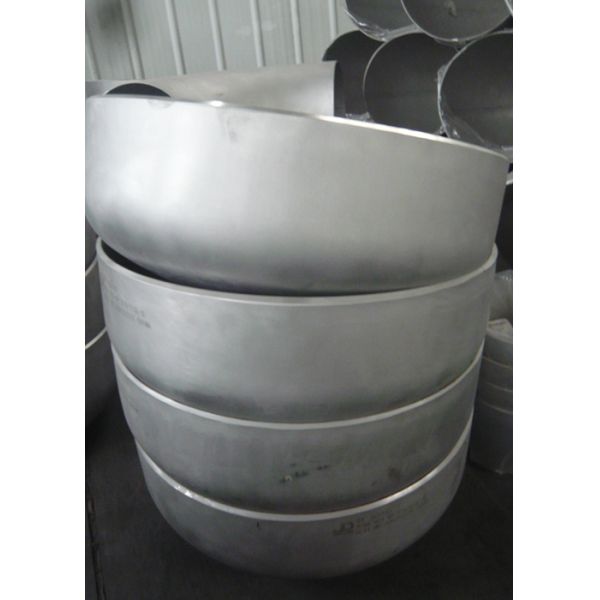

Stainless steel cap is the pipe head of buttweld fittings, it is the cover of piping or vessels. We manufacture and supply stainless steel cap with ASME B16.9, EN/DIN standard etc, it is seamless for diameter up to 24" and cold pressed from integral stainless steel plate.

We also provide elliptical head, oval head, butterfly shape head in materials stainless steel, duplex and super duplex steel, alloy steel etc for vessel and customized design.

The pressure vessel head is fabricated by qualified manufacturer and ASME U stamp is available upon requirement. All of these materials are available for third party inspection, such as SGS,BV,Lloyd’s,TUV etc.

Size: 1/2" to 24" (DN15 ~DN600)
Rate: SCH5S to SCHXXS
Standard: ASME/ANSI B16.9, MSS-SP-43, MSS-SP-75, EN/DIN, JIS B2311/2312/2313, ISO 3419, ISO 5251 etc.
Material:

▶Stainless Steel: ASTM A403 WP304, WP304L, WP304/304L, WP316, WP316L, WP316/WP316L, WP317L, WP321, WP321H, WP347, WP347H, A815 S31803 (Duplex Steel), 904L, 254SMO (W1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4878, 1.4550, 1.4845, 1.4539, 1.4547 etc.).

▶Duplex&Super Duplex: ASTM A815 S31803,S32205,S32750,S32760 (w1.4462, 1.4410, 1.4501, 1.4507 etc.)

▶Special Alloy: Monel 400, Inconel 600,625,Incoloy 800,800H, 825,Alloy 20, Hastelloy B3, C22,C276, 254SMO, Titanium alloy etc.

ANSI/ASME B16.9 Stainless Steel Buttweld Pipe Fittings Cap End

We are strength in stainless steel pipe fittings, especially for buttwelding pipe fittings. We can supply a very wide range such as 90 elbow, 45 elbow, tee, stub end, reducer, cap ends etc. For more information, please contact us.
