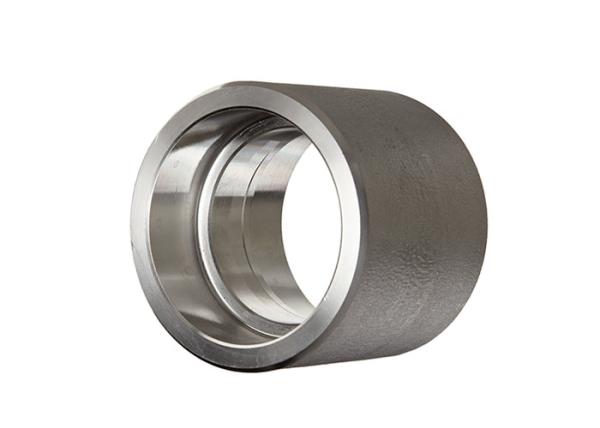

Socket Weld Coupling Forged Stainless Steel Pipe Fittings DN100 Corrosion Resistance
Socket Weld Coupling Forged Stainless Steel Pipe Fittings DN100 Corrosion Resistance
Socket Weld Coupling Forged Stainless Steel Pipe Fittings DN100 Corrosion Resistance
Socket Weld Coupling Forged Stainless Steel Pipe Fittings DN100 Corrosion Resistance
Specifications
Product name :
SW Full Coupling Pipe Fittings
Dimension :
DN15 ~DN100
Standards :
ANSI B16.11, BS3799, JIS B2316, GB/T14383, MSS SP-83, MSS SP-79 etc.
Materials :
Stainless Steel, Alloy Steel, Nickel-based Alloy
Pressure class :
3000LBS, 6000LBS, 9000LBS
Type :
Socket-Welded
Place of Origin :
China
Brand Name :
Kaysuns
Certification :
PED,ISO
Model Number :
KS-FF
MOQ :
500Kgs
Price :
USD
Packaging Details :
Plastic Bags / Plywood Boxes
Delivery Time :
30-45days
Supply Ability :
500Tons per Month
Description

Socket-Welding SW Full Coupling Fittings ASTM A182 F304, F316L, F317L, F51, F53 ASME/ANSI B16.11 BS3799

Socket weld full coupling fitting is a forged high pressure pipe fittings what is applied to various piping systems. With a step on the gallery, a pipe is inserted into the recessed area to welding and installing. In contrast to buttweld fittings, socket-weld fittings are generally small diameter but with high pressure rate working. Socket-welded Joints construction is a good choice wherever the benefits of high leakage integrity and great structural strength are important design considerations.

Description:

  • Forged stainless material corforms to ASME A182.
  • Forged stainless steel fitting dimensions conform to ASME B16.11.
  • NPT threads conform to ASME B1.20.1.
  • Socket fittings conform to ASME B16.11.
  • Forged stainless unions conform to MSS SP-83.
  • Forged stainless outlets conform to MSS SP-97.
  • Forged stainless socket weld inserts conform to MSS SP-79.

Specification:

Product: Elbow(90°,45°), Tee, Full coupling, Half coupling, Reducing Coupling, High pressure boss, Welding boss, (45°) Mitre boss, Reducing coupling, Cap(Socket-welded End), Union(SW), Socket Reducing Insert etc.
Dimension Range: 1/2” to 4” (DN15 ~DN100)
Rates/SCH: Class 3000LBS, 6000LBS, 9000LBS
Materials:
  • Stainless Steel: ASTM A182 F304, F304L, F304/304L, F316, F316L, F316/FP316L, F317L, F321, F321H, F347, F347H, F51(Duplex Steel), N08904etc.
  • Nickel-based Alloy: Monel 400,Inconel 600,Incoloy 800/H,Alloy 20,Hastelloy C276,C22,B2, Cu70Ni30,Cu90Ni10,Titanium etc.
  • Alloy Steel: ASTM A105, ASTM A182 F11, F12, F22, F5, F91, A350 LF2,LF3, A694 F42, F46, F48, F50, F52,
Standards: ANSI B16.11, BS3799, JIS B2316, GB/T14383, MSS SP-83, MSS SP-79 etc.

Applications:

  • Oil and Gas Pipeline
  • Paper Mill
  • Chemical Engineering
  • Machinery Manufacturing
  • Shipyard
  • Offshore

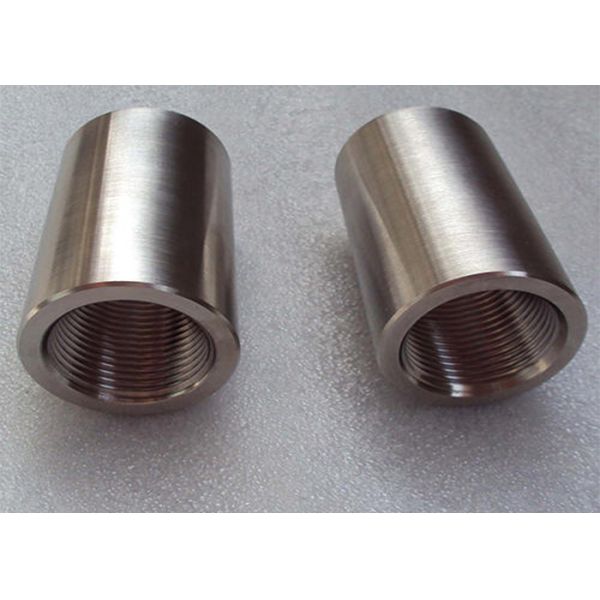

Socket Weld Coupling Forged Stainless Steel Pipe Fittings DN100 Corrosion Resistance

*For more information about SW Full Coupling Fittings, please contact us.
