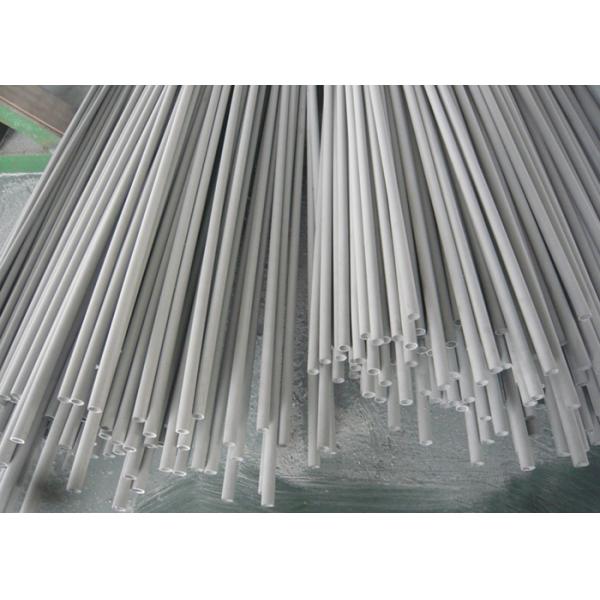

ASTM A789 Welded Stainless Steel Pipe Thin - Wall Welded Pipes
ASTM A789 Welded Stainless Steel Pipe Thin - Wall Welded Pipes
ASTM A789 Welded Stainless Steel Pipe Thin - Wall Welded Pipes
ASTM A789 Welded Stainless Steel Pipe Thin - Wall Welded Pipes
Specifications
Brand Name :
KAYSUNS
Certification :
PED,ISO
Place of Origin :
China
MOQ :
500Kgs
Price :
USD
Supply Ability :
500Tons per Month
Delivery Time :
30-45days
Packaging Details :
Plastic Bags / Plywood Boxes
Model Number :
KS-WLD
Material :
304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 310S, 310H, 904L, 254SMO, etc.
Standard :
ASTM A312, A213,A269
Process :
Cold Drawn / Cold Rolled
Size :
1/2” to 60” (DN15 ~DN1500)
Type :
Welded
OD. :
up to 3000mm
Description

ASTM A789 Welded Stainless Steel Pipe Thin - Wall Welded Pipes

Welded stainless steel pipe provides us a large diameter but low cost solution. Our welding process mainly is Plasma-Arc Welding(PAW), its biggest diameter could reach 3000mm. If other process is required, please state it in the requirement of stainless steel tubings.

Surface Finishes:

  • Pickling finish
  • bright annealed finish
  • Mirror finish
  • sand blast finish

Size: Outer diameters from 6 up to 3000 mm (0.24 up to 118 inches),
wall thicknesses from 0.5 up to 36 mm (0.02 up to 1.42 inches).
Rate: SCH5S to SCHXXS
Standard:

ASTM A312, A213, A268,A269, A249, A270, A376,A511;
ASTM A789, A790;
ASTM B163, B165, B167, B407, B423, B444, B622, B677, B729;
EN10216-5, EN/DIN17455,EN/DIN17456, EN/DIN17458DIN2462 etc.
Material:

Stainless steel: TP304,304L,304H,316,316L,316H,316Ti,317,317L,309S,310S,310H,347,347H,321,321H, 904L, S31254
(mat.1.4301,1.4307,1.4948,1.4401,1.4404,1.4571,1.4438,1.4438, 1.4833,1.4841,1.4845,1.4845,1.4450,1.4541,1.4878,1.4539, 1.4547/254SMO) etc.

Duplex: UNS S31803 , S32205, S32750,S32760,S32304 (Mat.1.4462,1.4410,1.4501,1.4362)etc.

Alloy: Monel 400, Inconel 600, Inconel 625, Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy B2, Hastelloy C-22, Hastelloy C-276, 15-5PH, 17-7PH,Cu70Ni30(C71500/B30), Cu90Ni10(C70600/B10)etc.

Application

For fluid & gas transport

Structure & machining etc

Advantages

Advanced technology of cold draw machine

Advanced annealing machine

Better mechanical property

More precise dimension

Perfect inspection method and inspection equipment etc


ASTM A789 Welded Stainless Steel Pipe Thin - Wall Welded Pipes
Our factory is a leading manufacturer and supplier for qualified stainless steel welded pipes, includes ASME/ASTM, EN/DIN, JIS series stainless steel pipes, and a wide range for material grades.

For more information, please contact us.
