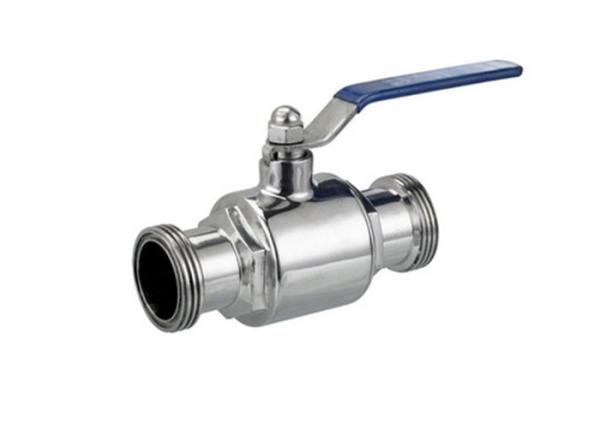

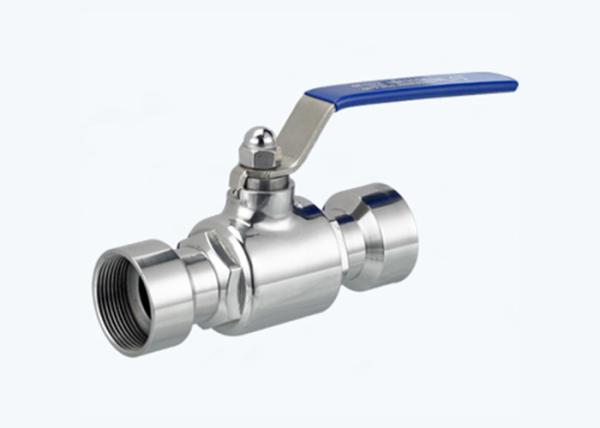

Handle / Pneumatic Stainless Steel Sanitary Valves Two Piece Ball Valve Threaded Ends
Handle / Pneumatic Stainless Steel Sanitary Valves Two Piece Ball Valve Threaded Ends
Handle / Pneumatic Stainless Steel Sanitary Valves Two Piece Ball Valve Threaded Ends
Handle / Pneumatic Stainless Steel Sanitary Valves Two Piece Ball Valve Threaded Ends
Specifications
Brand Name :
KAYSUNS
Model Number :
KS-SV
Certification :
PED,ISO
Place of Origin :
China
MOQ :
10Pcs
Price :
USD
Supply Ability :
400Tons per Month
Delivery Time :
30-45days
Packaging Details :
Plywood Boxes
Material :
304, 316L, 1.4301, 1.4404 etc.
Standard :
DIN, SMS, ISO, etc.
Size :
1/2”~4” DN10~DN100
Sealing :
PTFE
Connection :
Welding, Threaded, Clamped, etc.
Drive :
Handle or Pneumatic
Description

Stainless Steel Sanitary Valve Two-Piece Ball Valve Threaded Ends

Sanitary 2 PCS ball valve is 2 splitted valve bodies design sanitary ball valve, it is a commonly valve type. 2 PCS ball valve is made in stainless steel 1.4301, 1.4404 or T316L, T304 ete of DIN, SMS standards etc. The valve body is investment casting, and connected end can be tri-clamp, welded, threaded, and flanged. Our sanitary provides a wide range of sanitary valves for food processing, beverages, fruit juices, wine, biopharmaceutical etc.

Strength:

  1. Stainless steel T316L, T304, 1.4301, 1.4404 or specified.

  2. Variety connection of tri-clamp, welded, threaded, flanged etc.

  3. Surface finishing: External surface sand blasting, Internal surface Ra0.6?m.

  4. Process controller,valve positioning etc on request.

  5. Gasket materials complies with FDA 177.2600.

  6. Standard of 3A,DIN,SMS,ISO,IDF,BPE,RJT etc.

Application:

  1. Food
  2. Brewery
  3. Beverage
  4. Dairy
  5. Pharmaceutical
  6. Biopharma etc.

Specification

PRODUCT

Sanitary Two Piece Ball Valve, 2 pcs ball valve

DIMENSION

1/2″ ~ 4″

MATERIAL

T304, T316L, 1.4301, 1.4404 etc.

STANDARD

3A,DIN,SMS,ISO,IDF,BPE,RJT etc.

SEALING GASKET

PTFE, TFM etc.

TEMPERATURE

-30°C / -22°F up to +200°C/ +392°F

Pressure

10-30bar (based on seal material and temperature)

Operation

Manual, Pneumatic, Electric

APPLICATION

Pharmacy, Beer, Food, Petroleum, Dairy, Beverage,Biotech ,Cosmetics etc.

How to order

*Part Name*Size *Material *Quantity *Standard

Handle / Pneumatic Stainless Steel Sanitary Valves Two Piece Ball Valve Threaded Ends

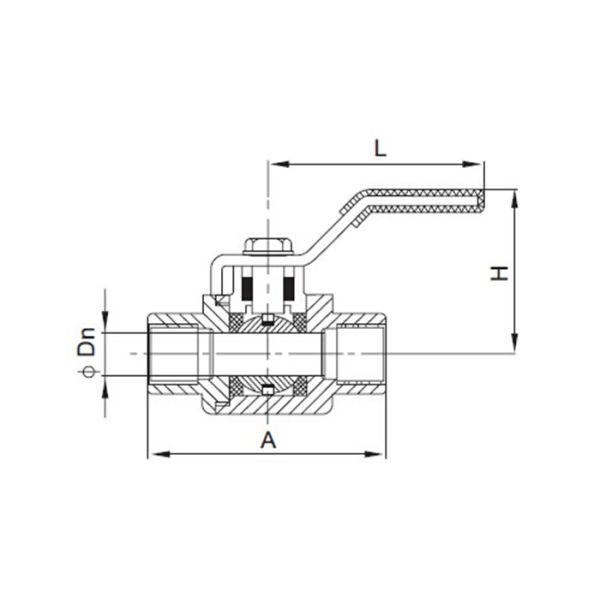

Dimension of Sanitary Two-Piece Ball Valve – 2 PCS Ball Valve

Size A Dn H L
1/2″ 65.0 15.0 60.0 130.0
3/4″ 75.0 20.0 64.0 130.0
1″ 88.0 25.0 71.0 165.0
11/4″ 102.0 32.0 78.0 165.0
11/2″ 110.0 38.0 86.0 190.0
2″ 125.0 50.0 95.0 190.0
21/2″ 162.0 65.0 130.0 250.0
3″ 189.0 80.0 148.0 250.0
4″ 260.0 100.0 180.0 280.0

* If you couldn’t find your dimension of sanitary two piece ball valve here, please contact us.
